ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

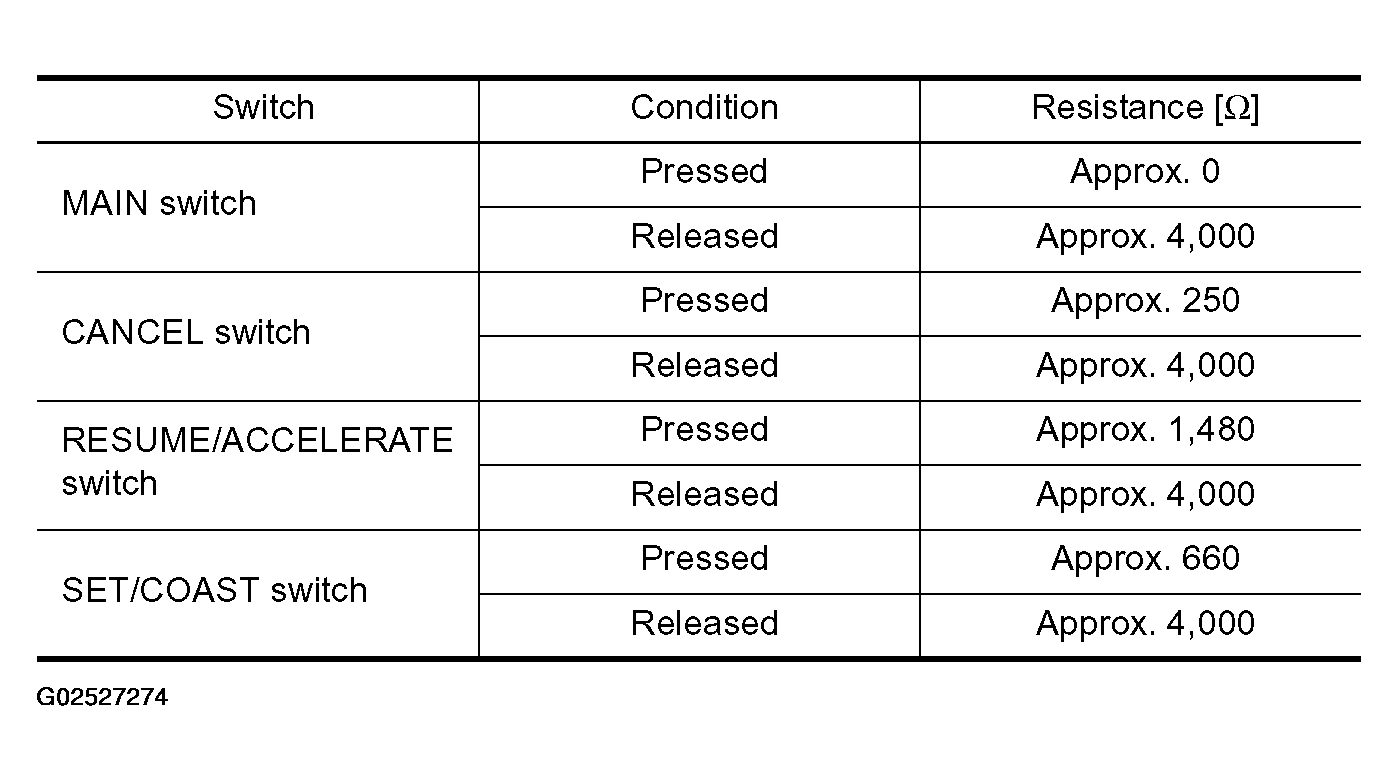

    Fig 1: Combination Switch (Spiral Cable) Terminals Continuity Chart
    G02527274Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Checking Continuity Between Combination Switch (Spiral Cable) Terminals 14 And 15
    G02527275Courtesy of NISSAN MOTOR CO., U.S.A.
