Combination Meter: Check

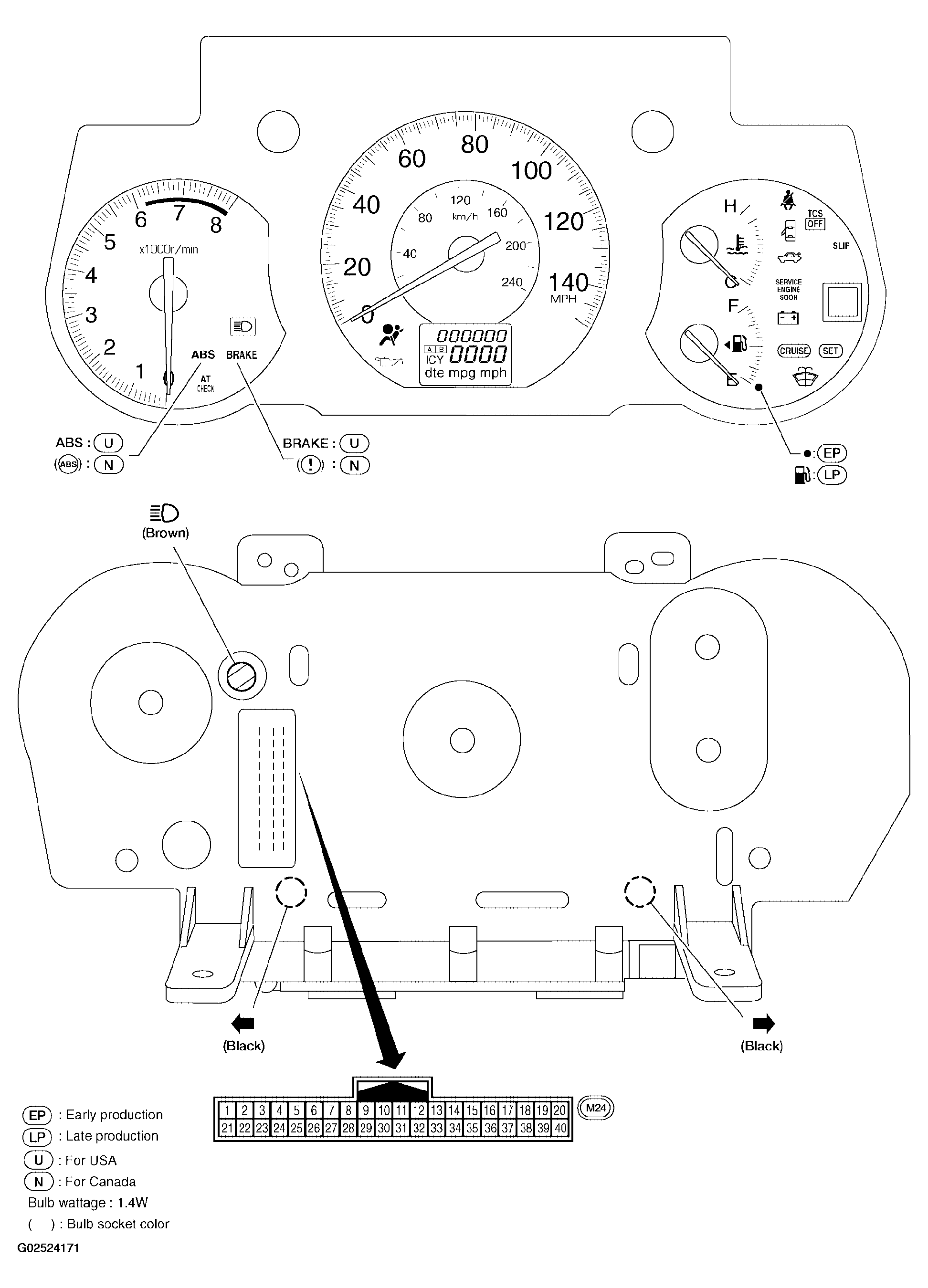

Fig 1: Identifying Combination Meter

G02524171

Courtesy of NISSAN MOTOR CO., U.S.A.
