Conditions for Lock-up Operation

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

When vehicle is driven in 4th gear position, vehicle speed and throttle opening are detected. If the detected values fall within the lock-up zone memorized in the TCM, lock-up is performed.

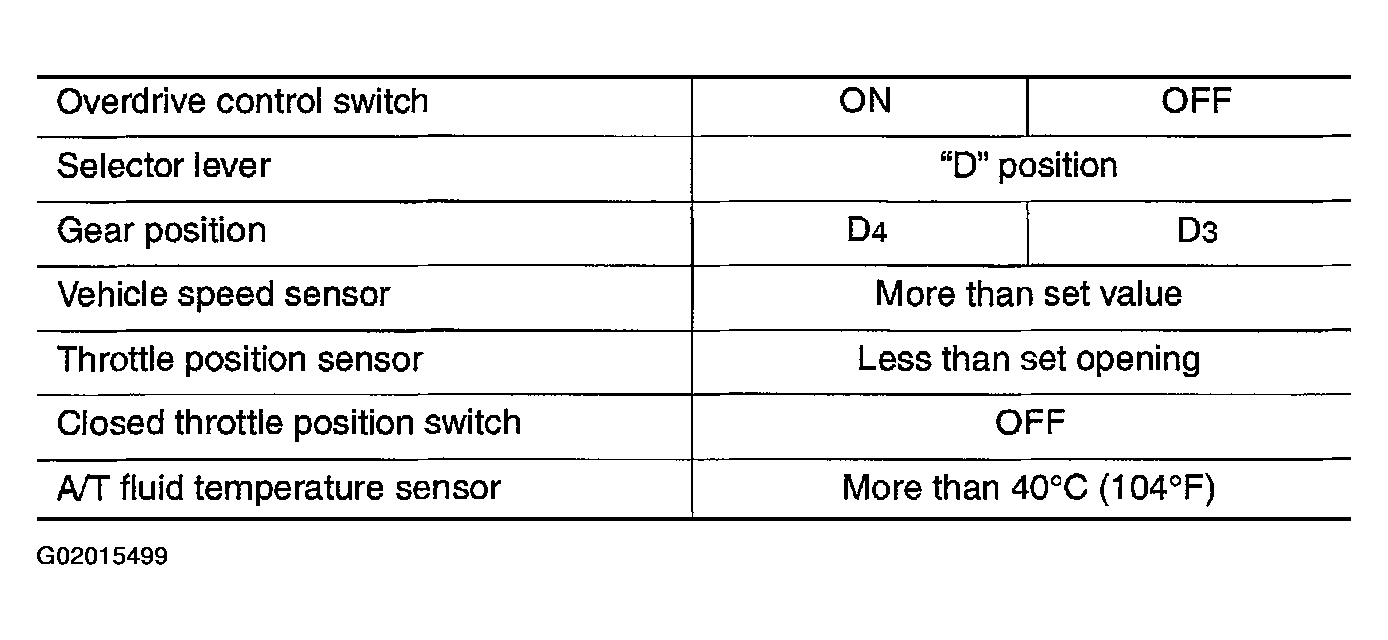

Fig 1: Identifying Lock-Up Specifications
G02015499Courtesy of NISSAN MOTOR CO., U.S.A.
