Connector And Terminal Pin Kit

WARNING: This page is about a different car, the 2003 Infiniti QX4. However, it is still accessible from the selected car via links, so may be relevant.

Use the connector and terminal pin kit listed below when replacing connectors or terminals. See Fig 1 .

The connector and terminal pin kit contains some of the most commonly used INFINITI connectors and terminals.

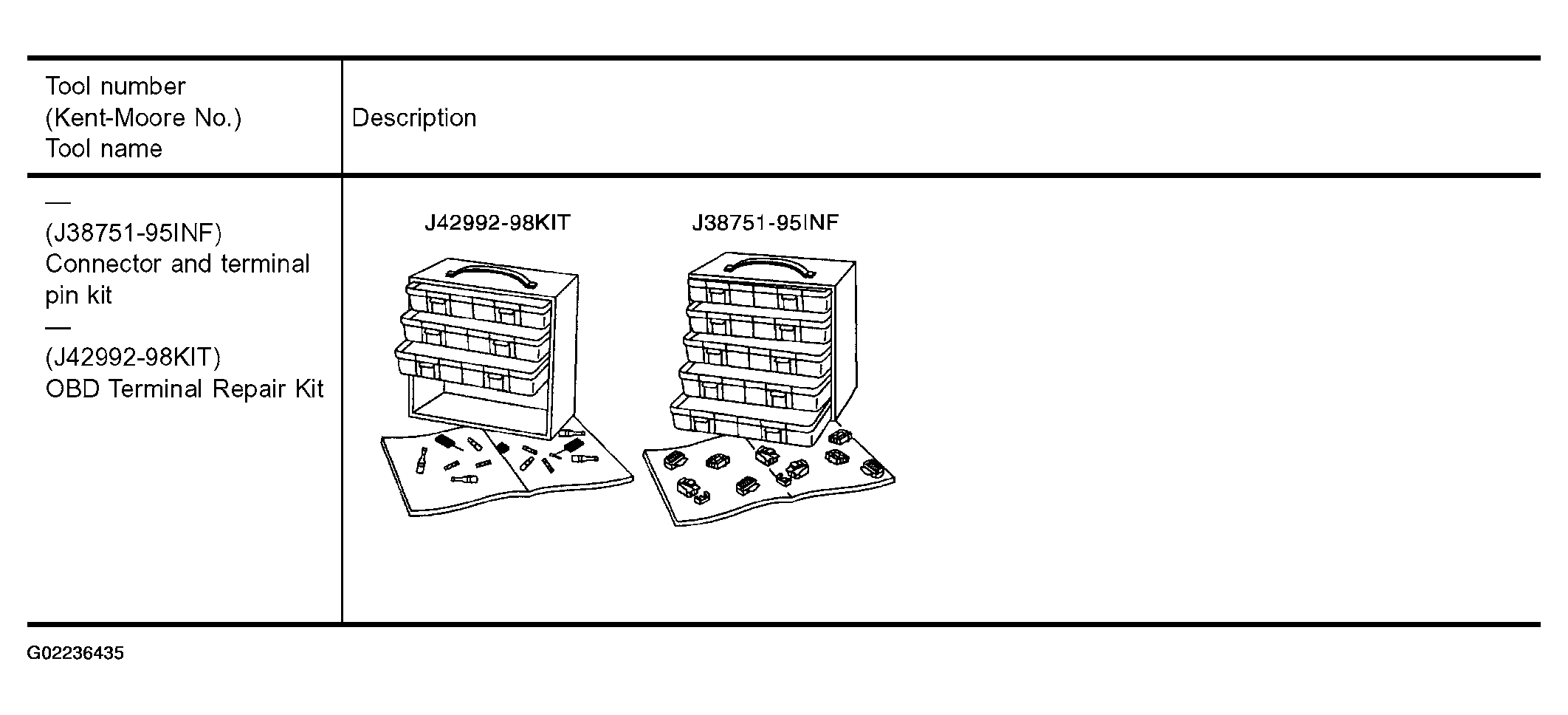

Fig 1: Identifying Connector And Terminal Pin Kit

Courtesy of NISSAN MOTOR CO., U.S.A.
