Navigation System: Schematic

WARNING: This page is about a different car, the 2007 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

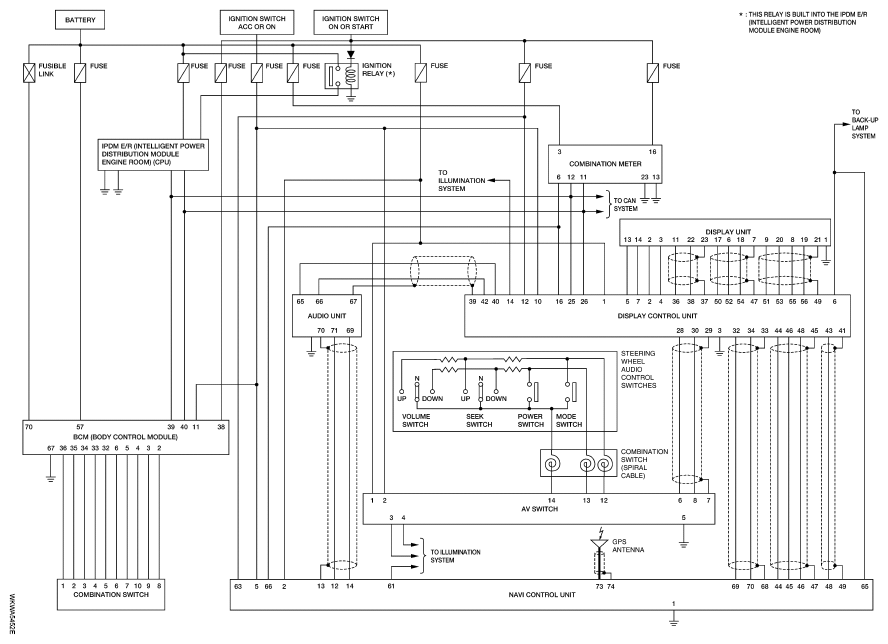

Fig 1: Identifying Navigation System Schematic Diagram
G04914287

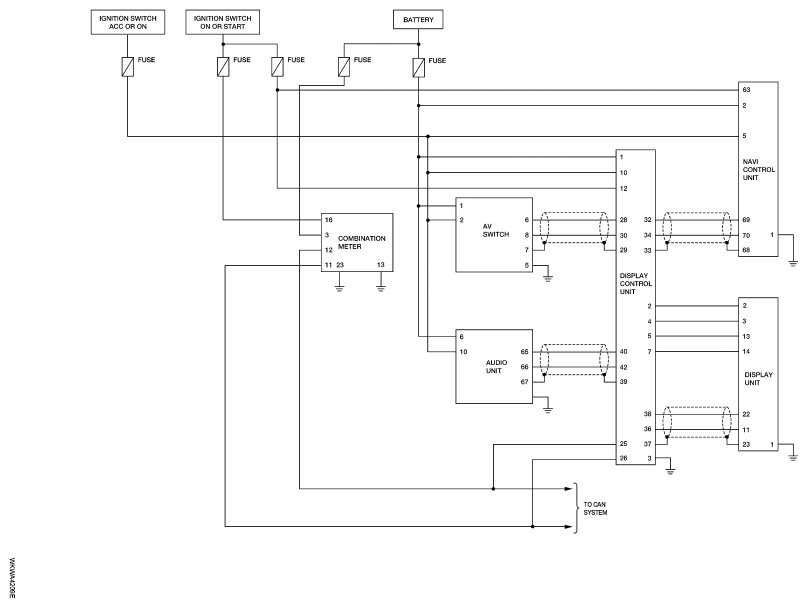

Fig 1: Identifying Navigation System Schematic
G04914295
