Brake Booster: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

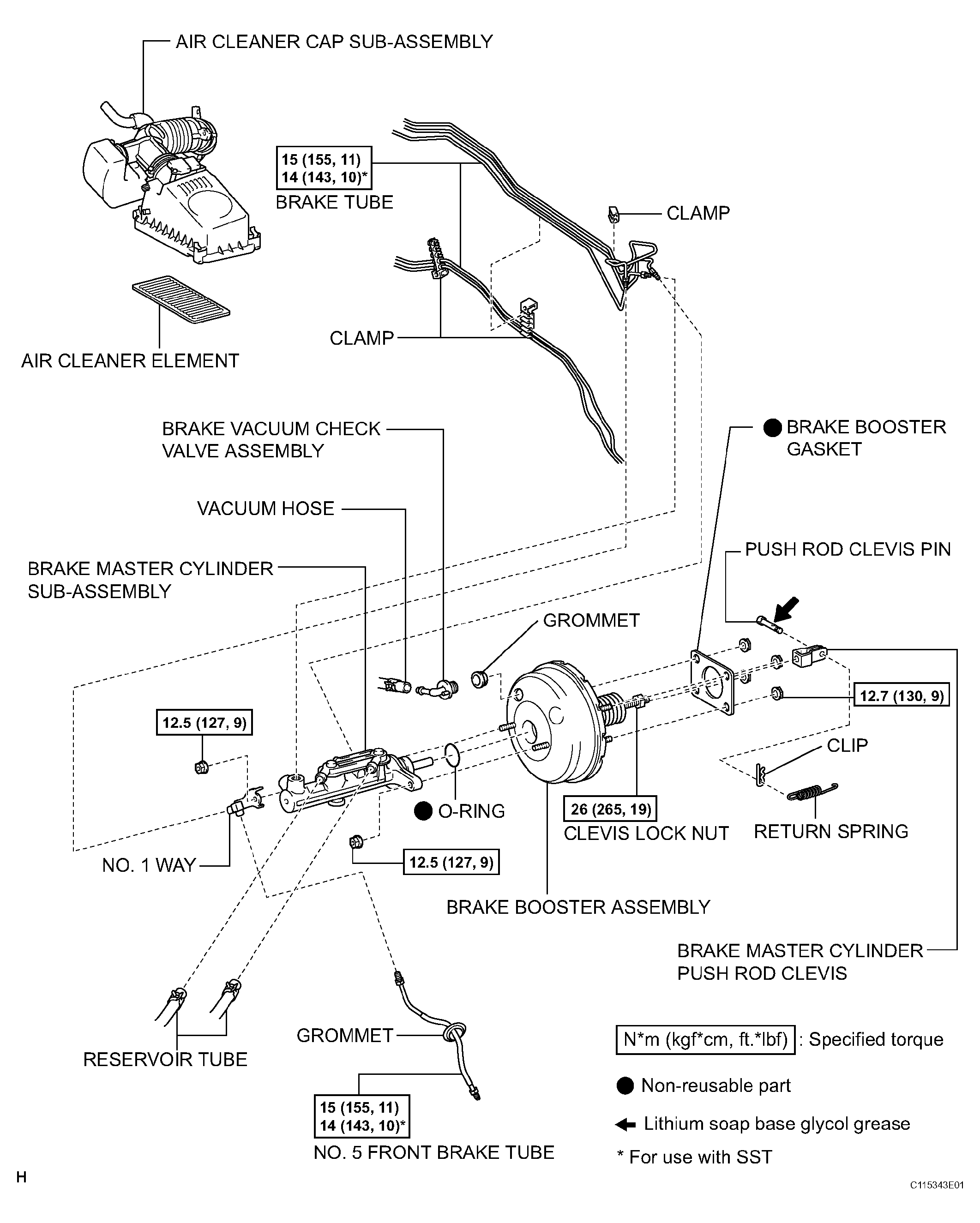

Fig 1: Brake Booster Replacement Components With Torque Specifications
G04223247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
