Section 1530 (Body, Lock & Security System)
>>
Body Repair
>>
Replacement Operations
>>
HOODLEDGE
>>
LH
Replacement Operations: HOODLEDGE: LH
WARNING:
This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
Work after radiator core support has been removed.

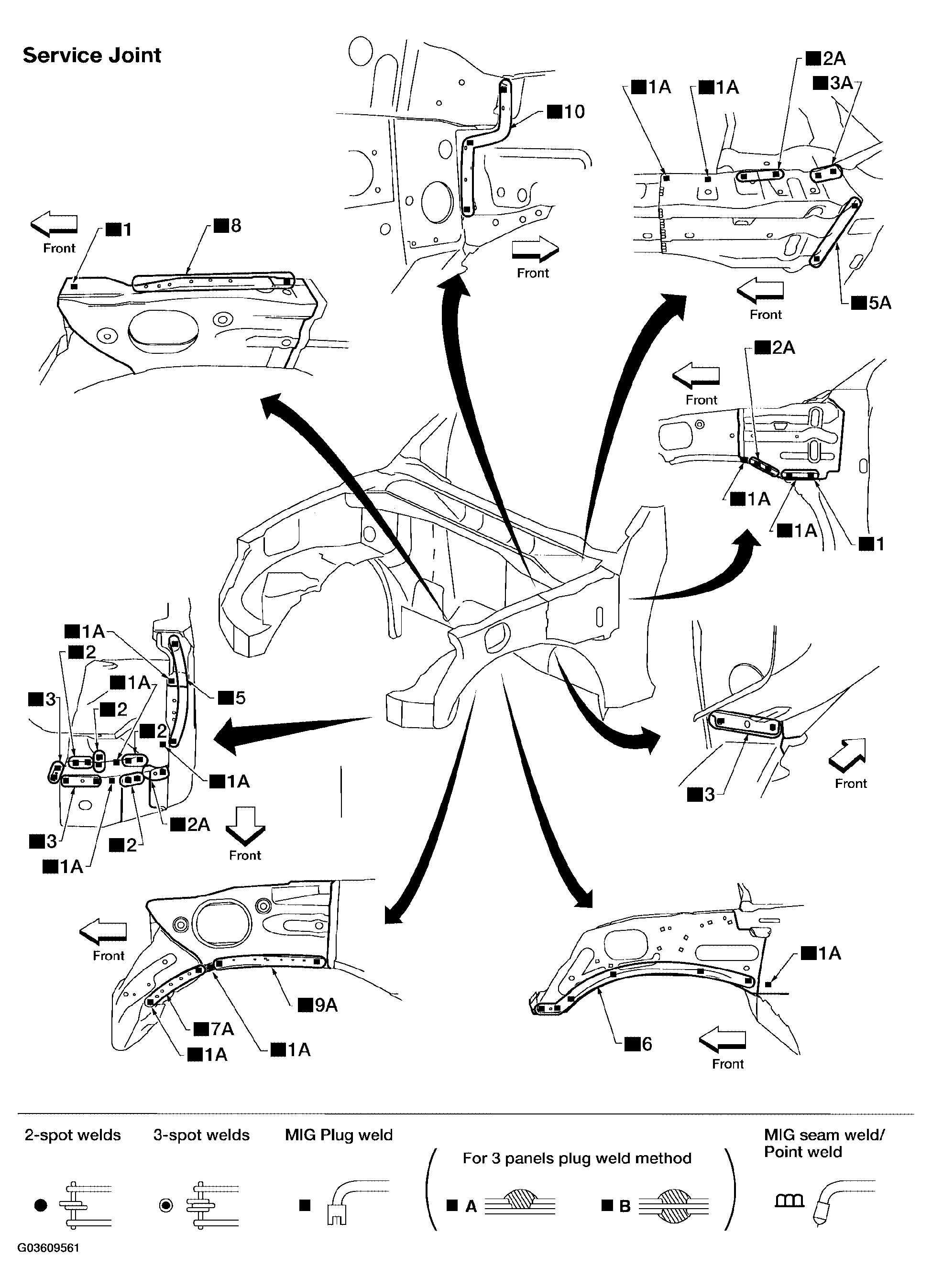

Fig 1: Identifying Hoodledge Service Joints (LH)
Courtesy of NISSAN MOTOR CO., U.S.A.
