Description of Control System
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
The control system consists of input sensors, switches, the unified meter and A/C amp. (microcomputer) and outputs.

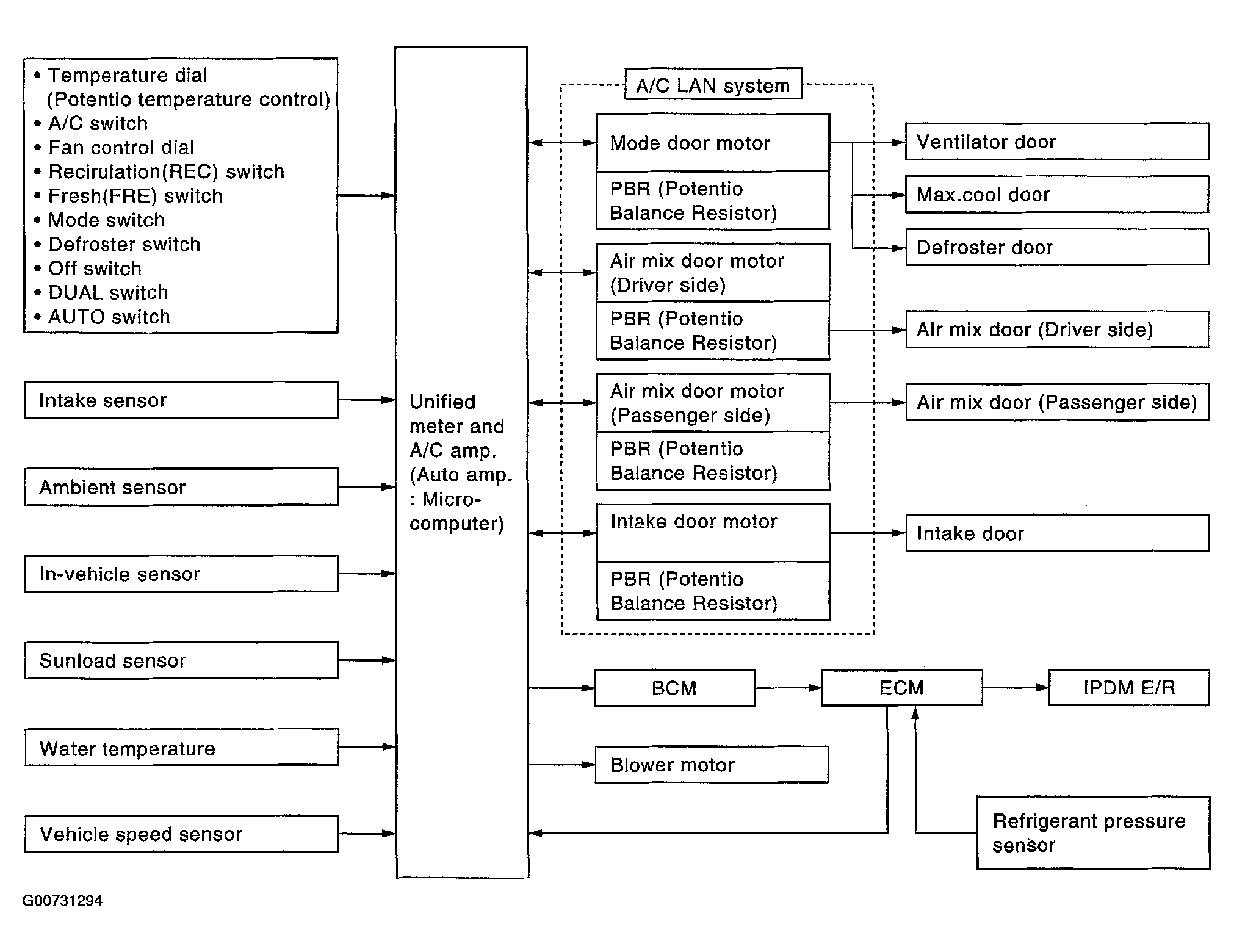

The relationship of these components is shown in Fig 1 below:
