DTC P0117, P0118: ECT Sensor: Wiring Diagram

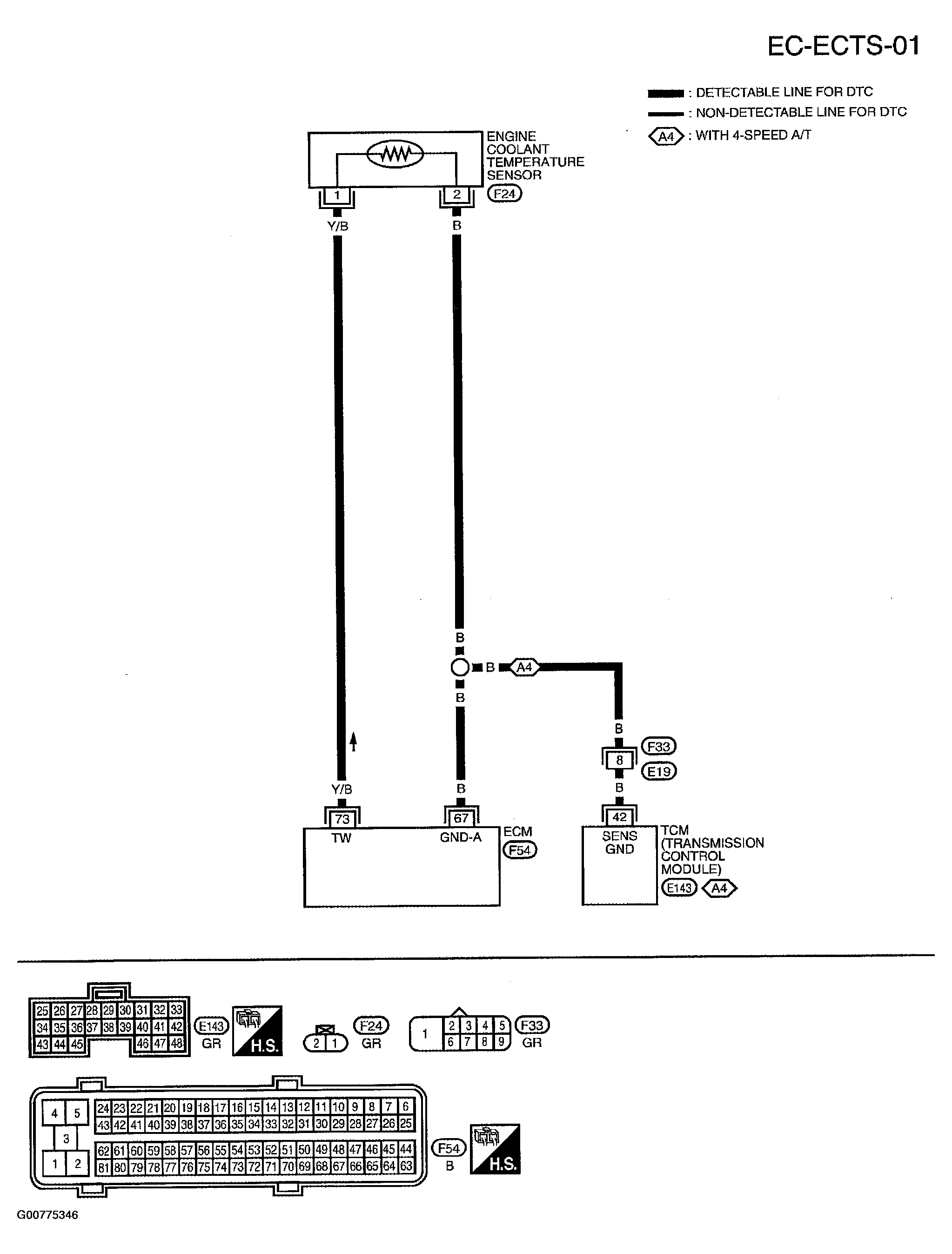

Fig 1: Displaying EC-ECTS-01 Wiring Diagram

G00775346

Courtesy of NISSAN MOTOR CO., U.S.A.
