ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

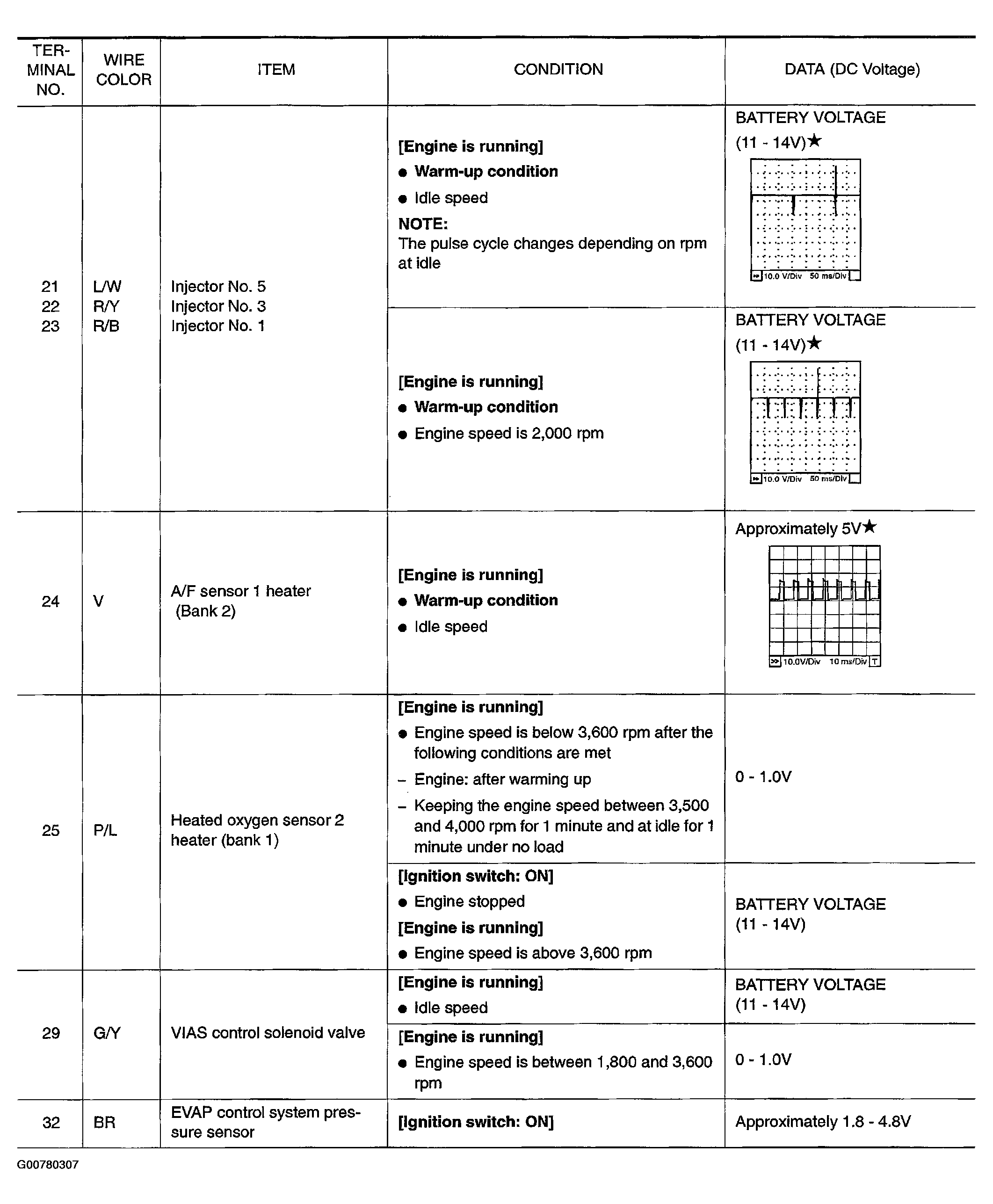

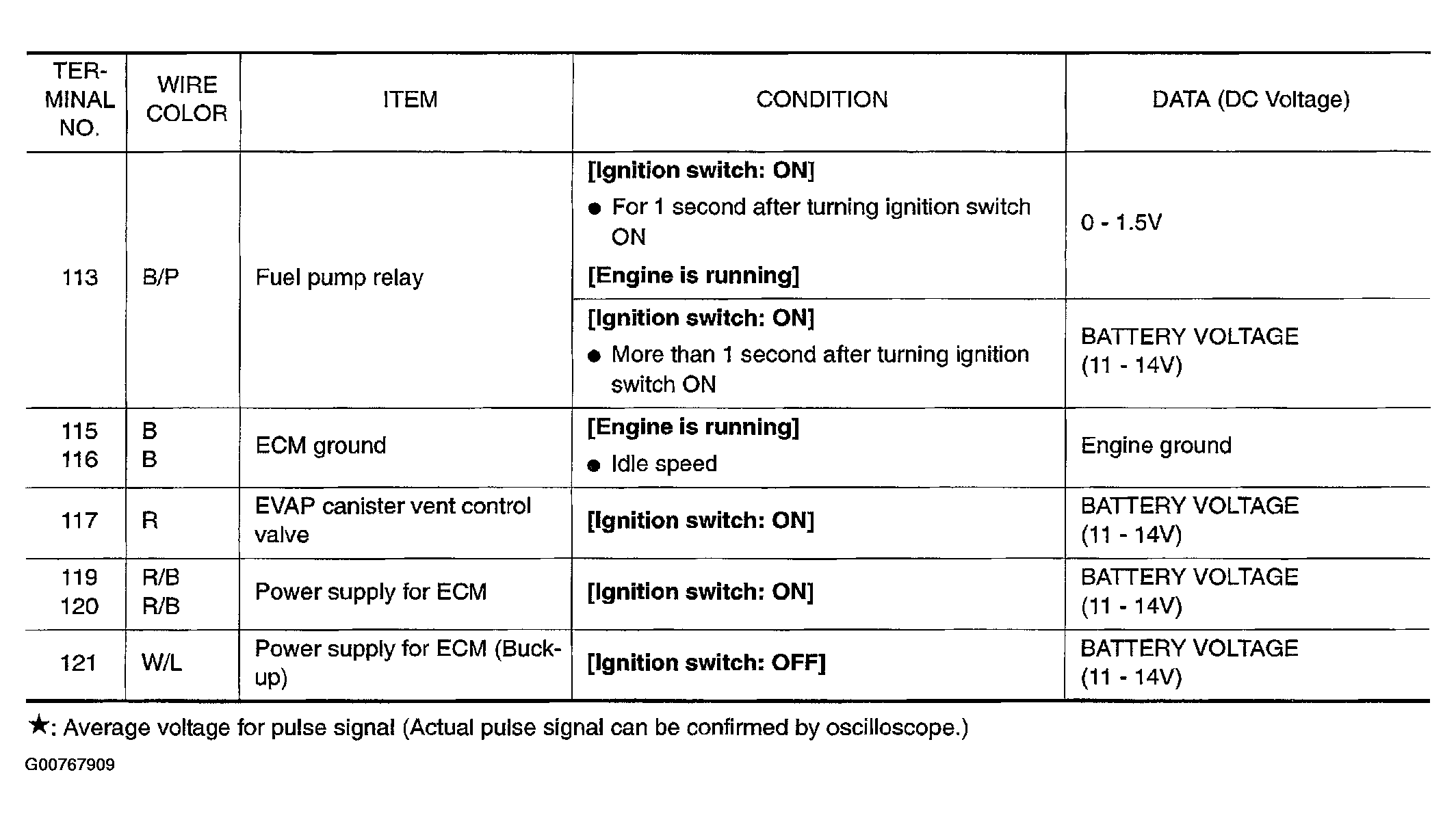

Fig 1: ECM Inspection Chart (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

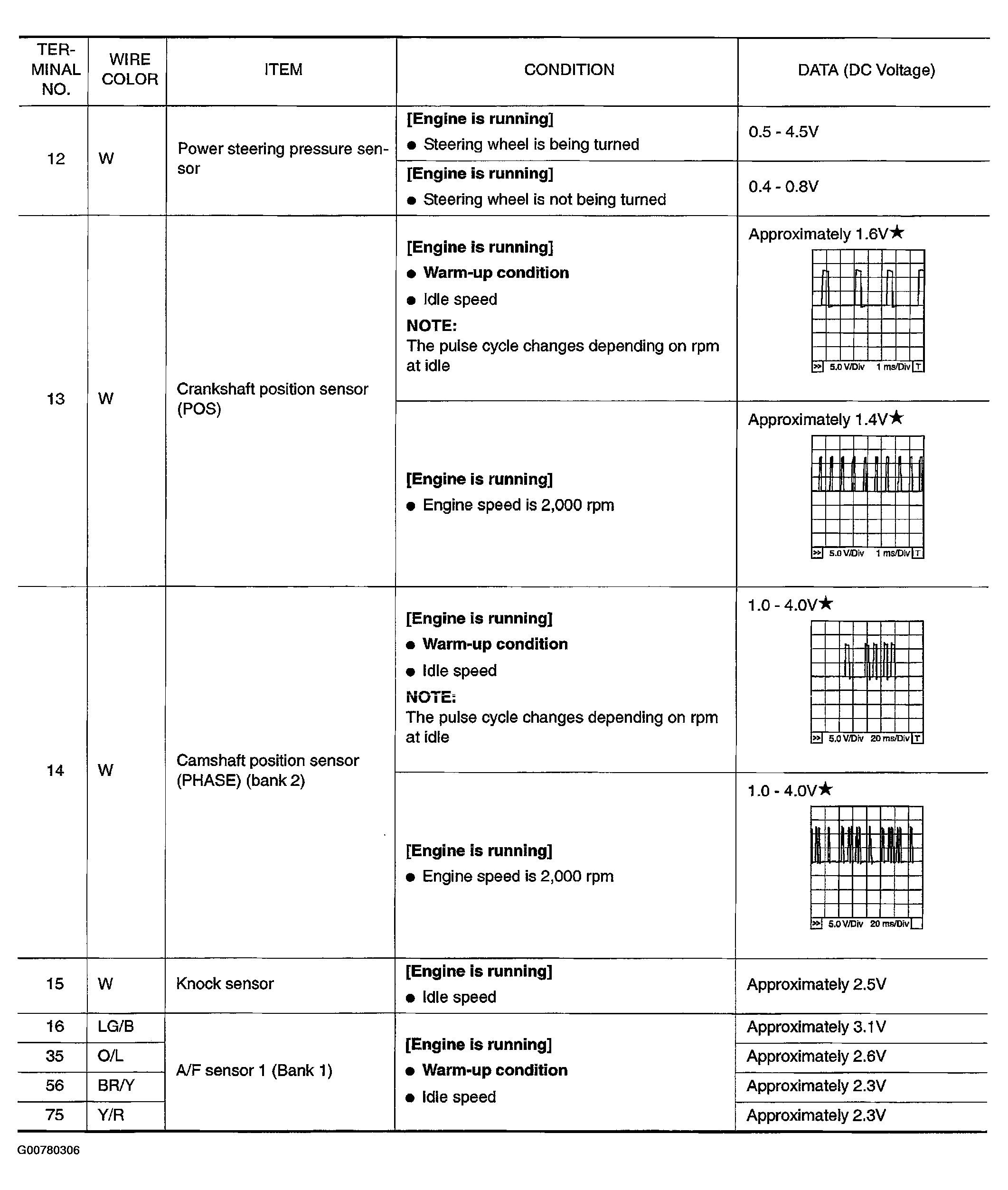

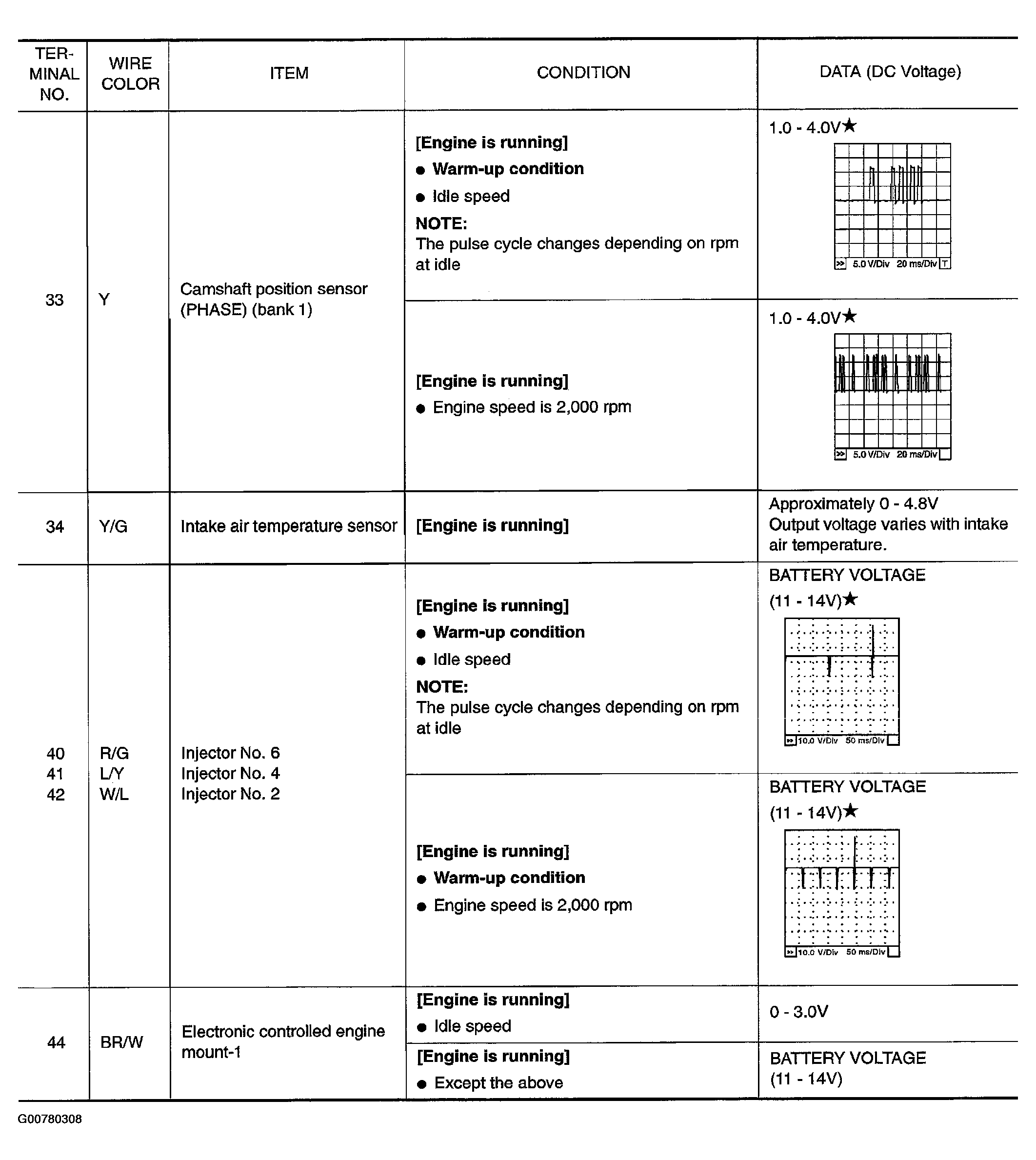

Fig 2: ECM Inspection Chart (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

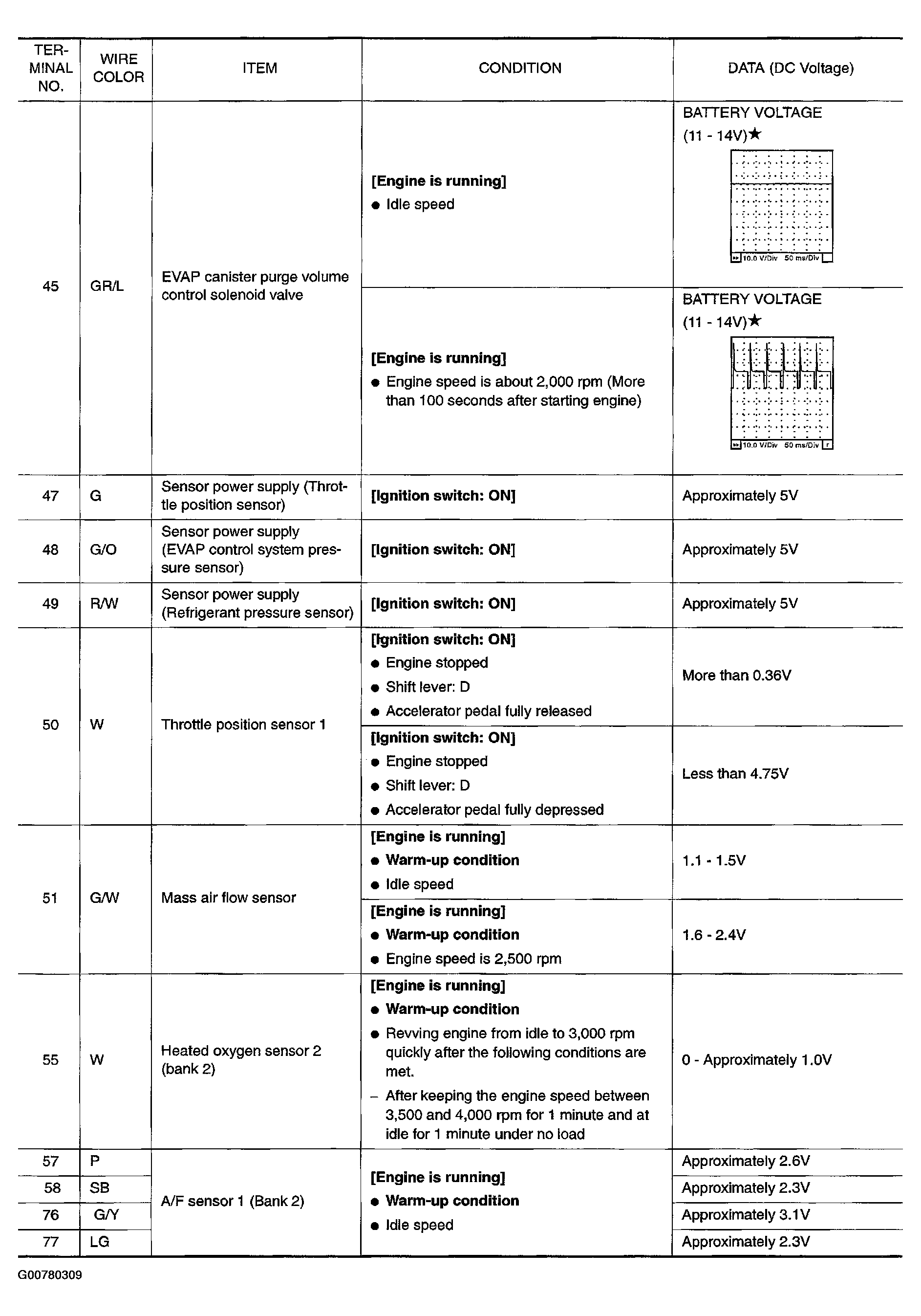

Fig 3: ECM Inspection Chart (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

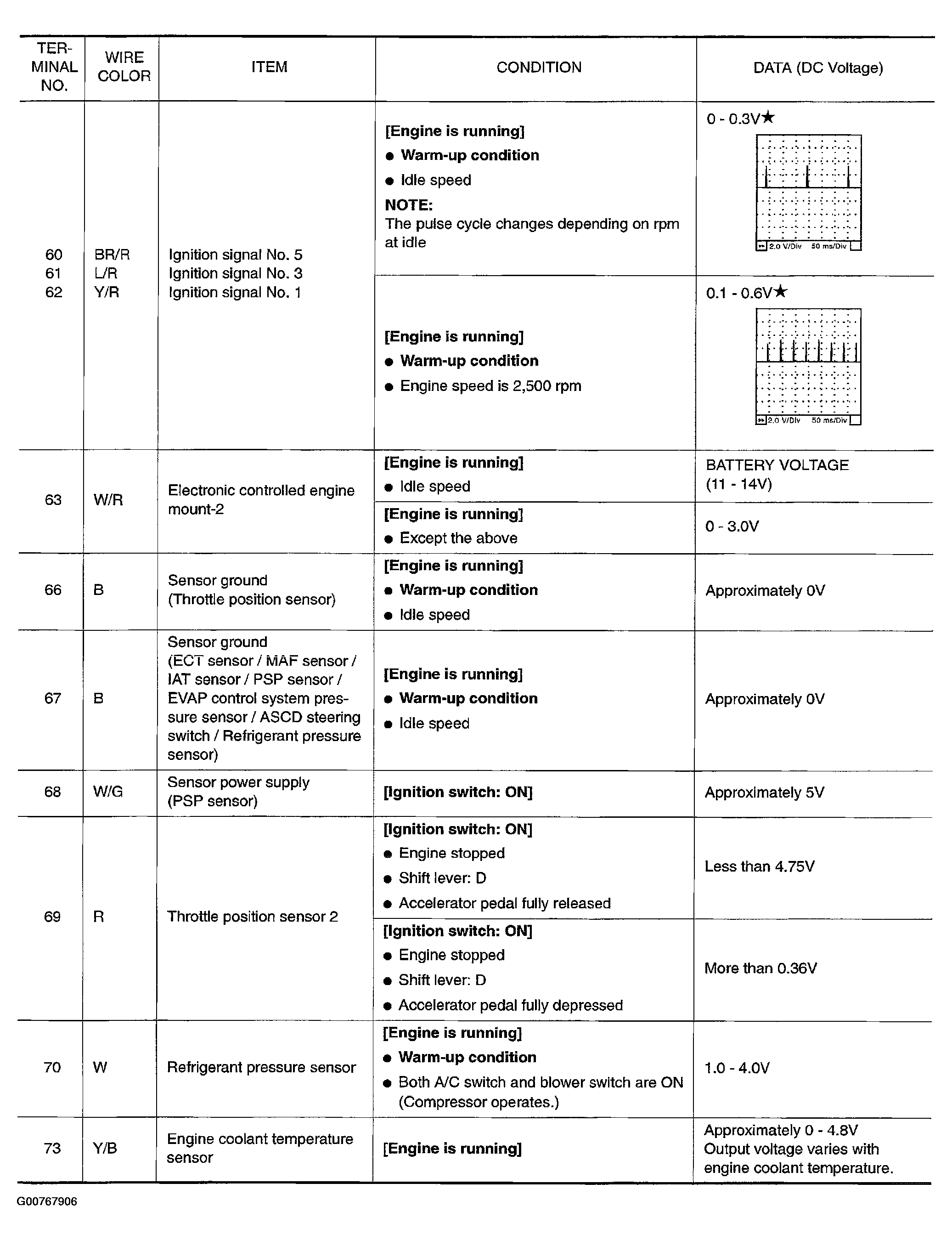

Fig 4: ECM Inspection Chart (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

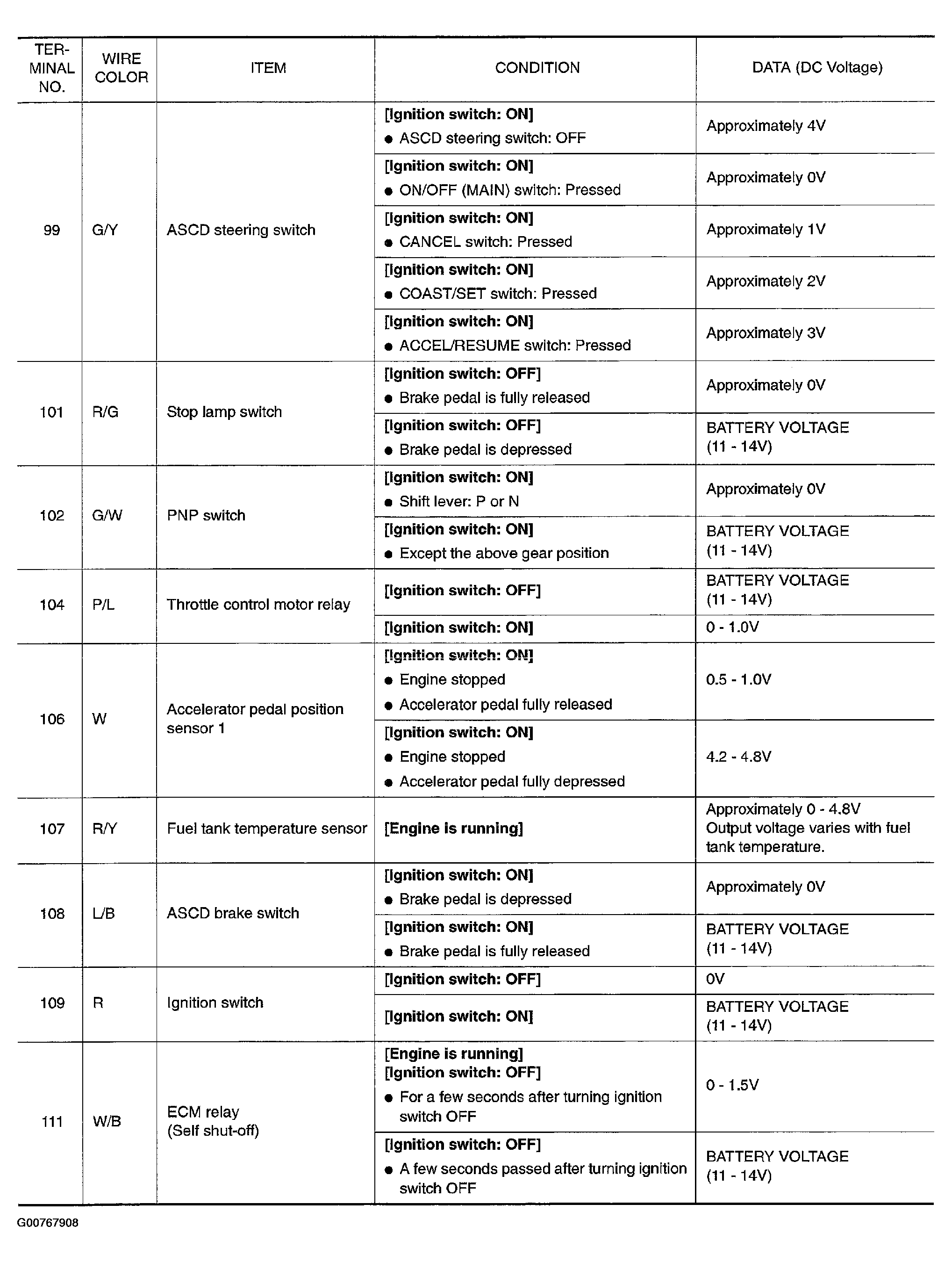

Fig 5: ECM Inspection Chart (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

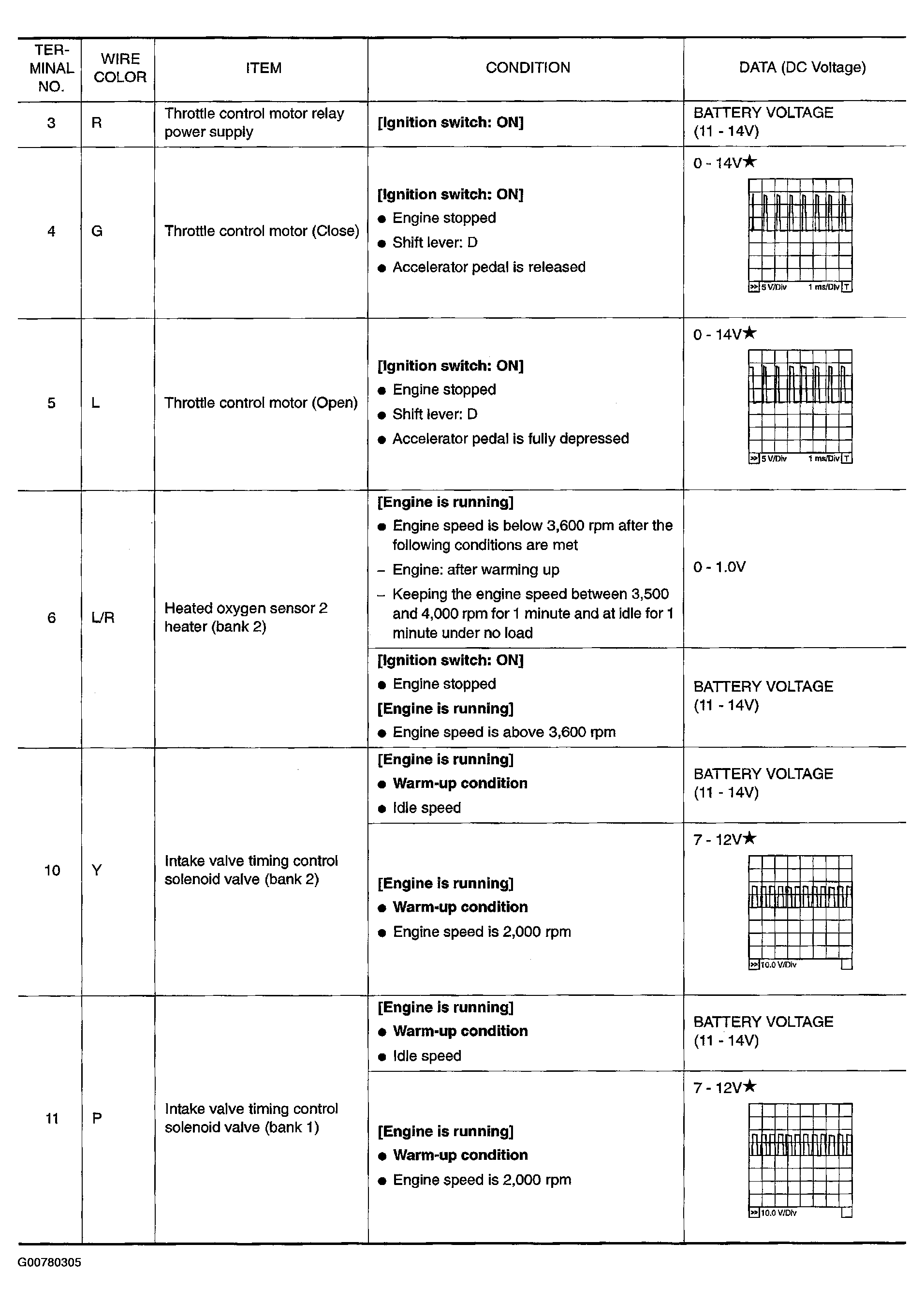

Fig 6: ECM Inspection Chart (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

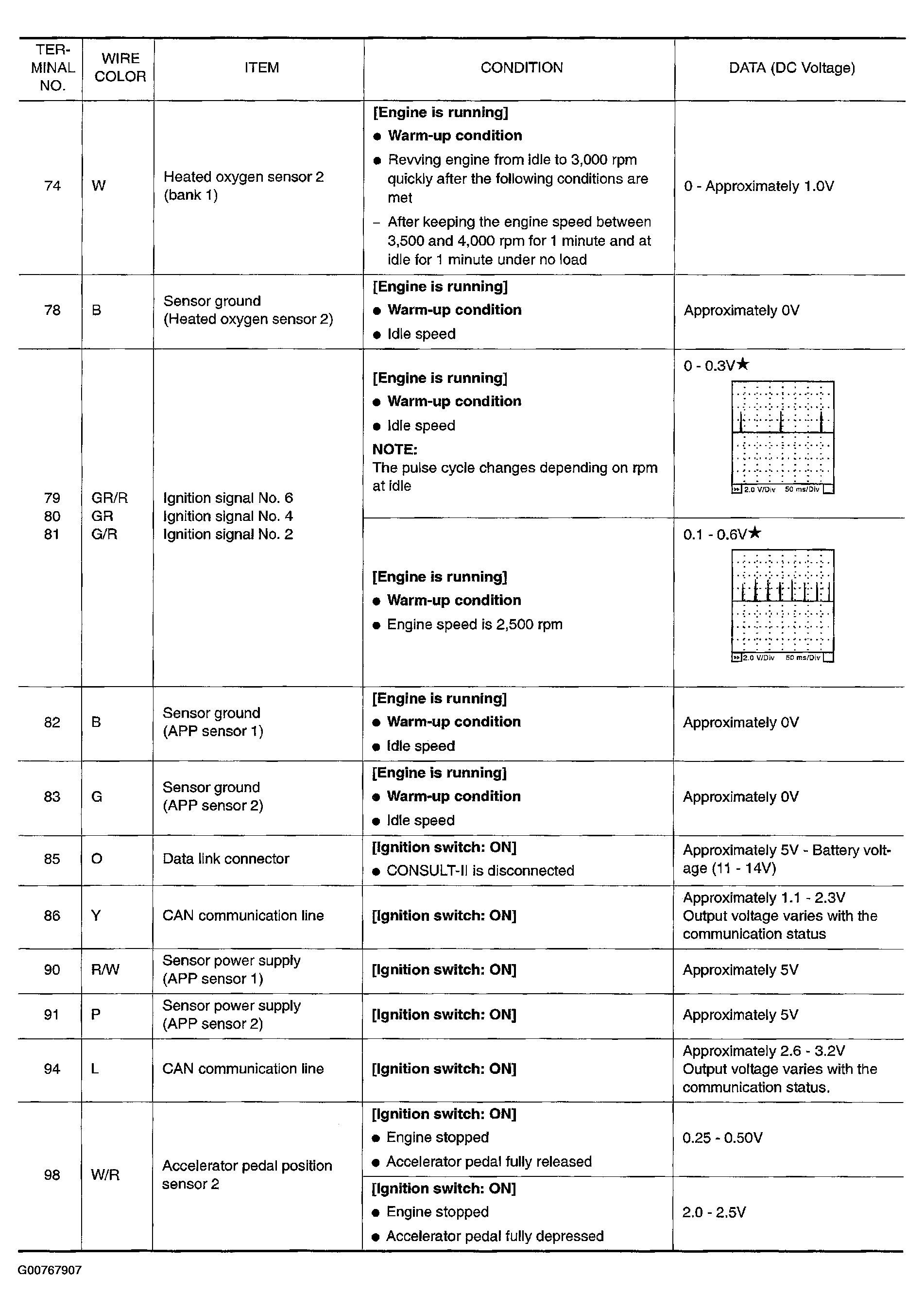

Fig 7: ECM Inspection Chart (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

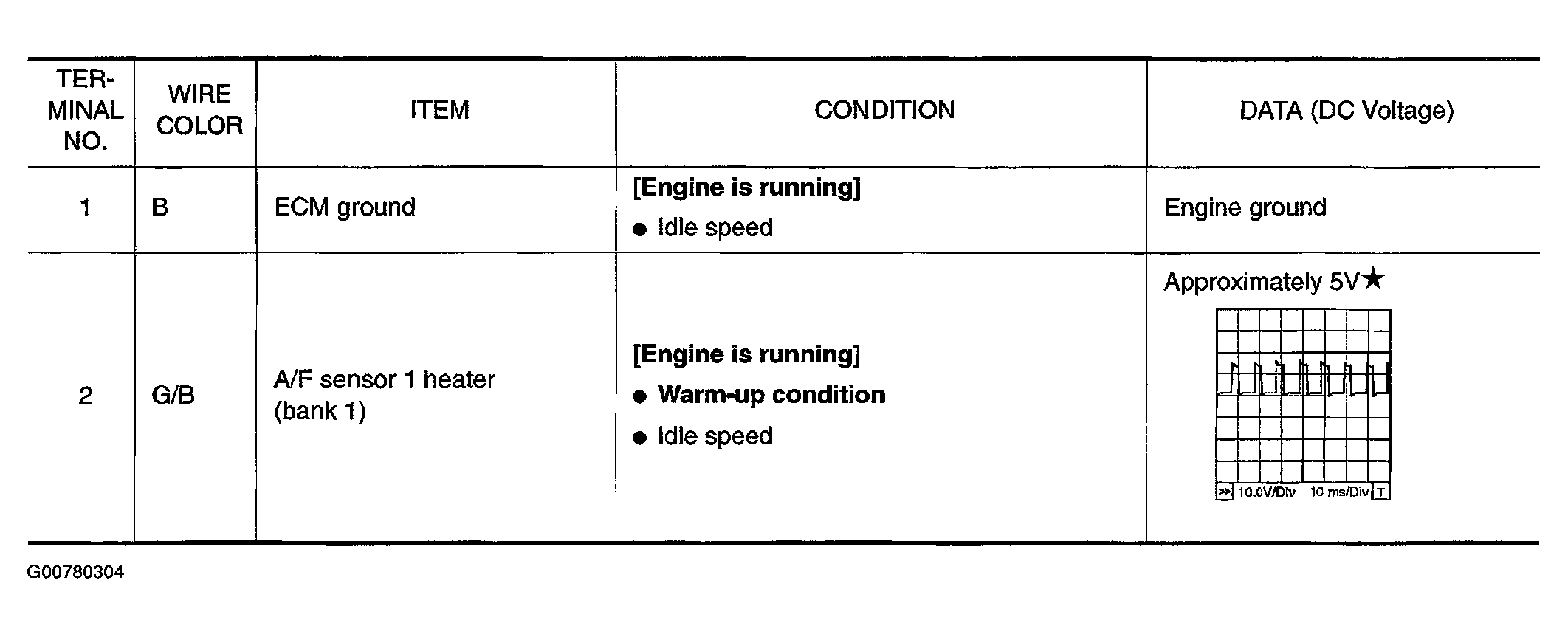

Fig 8: ECM Inspection Chart (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: ECM Inspection Chart (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: ECM Inspection Chart (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
