Monitored item

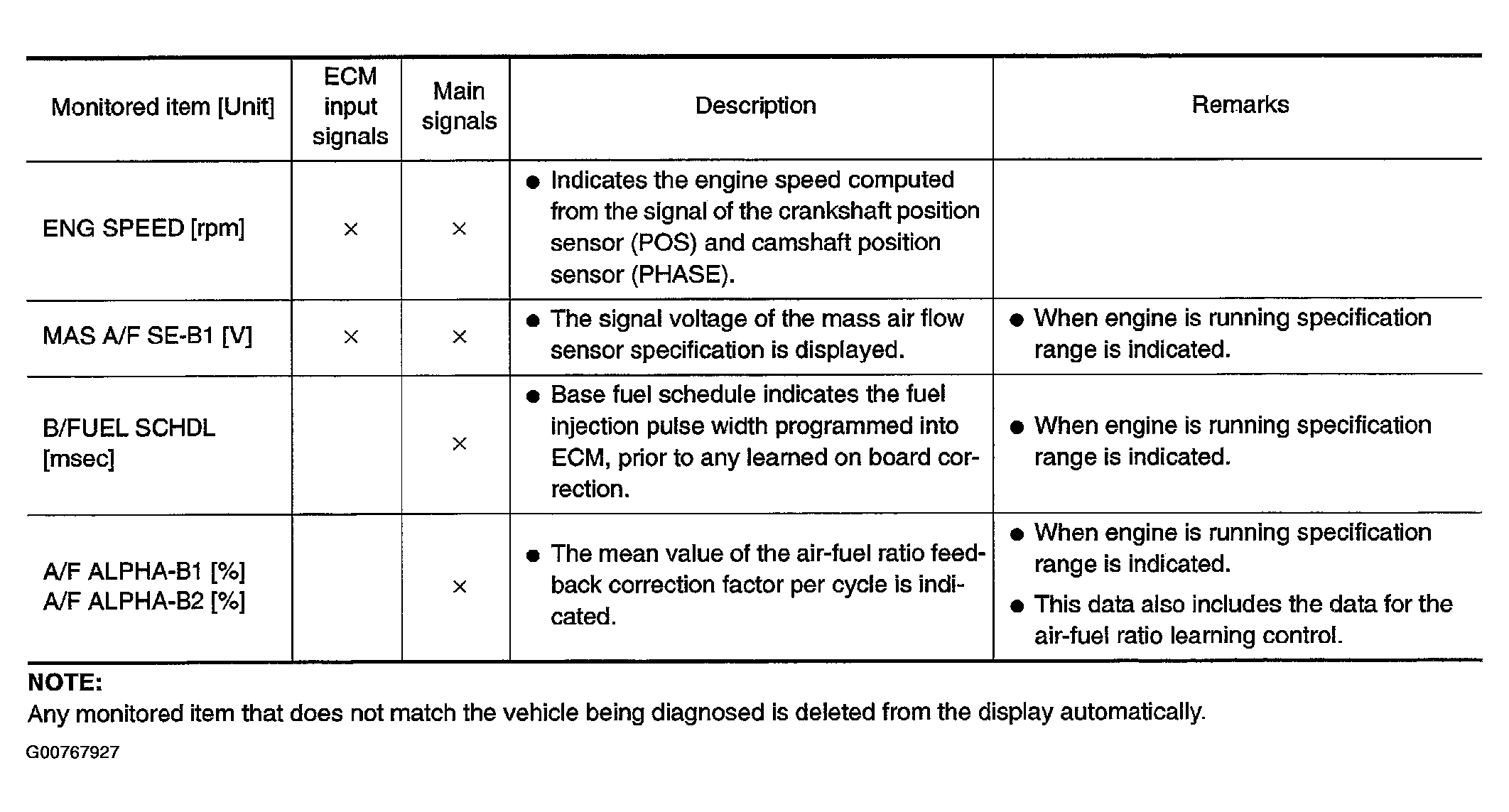

Fig 1: Data Monitor (SPEC) Mode Chart (Monitored Item)

G00767927

Courtesy of NISSAN MOTOR CO., U.S.A.
