Component Description

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases.

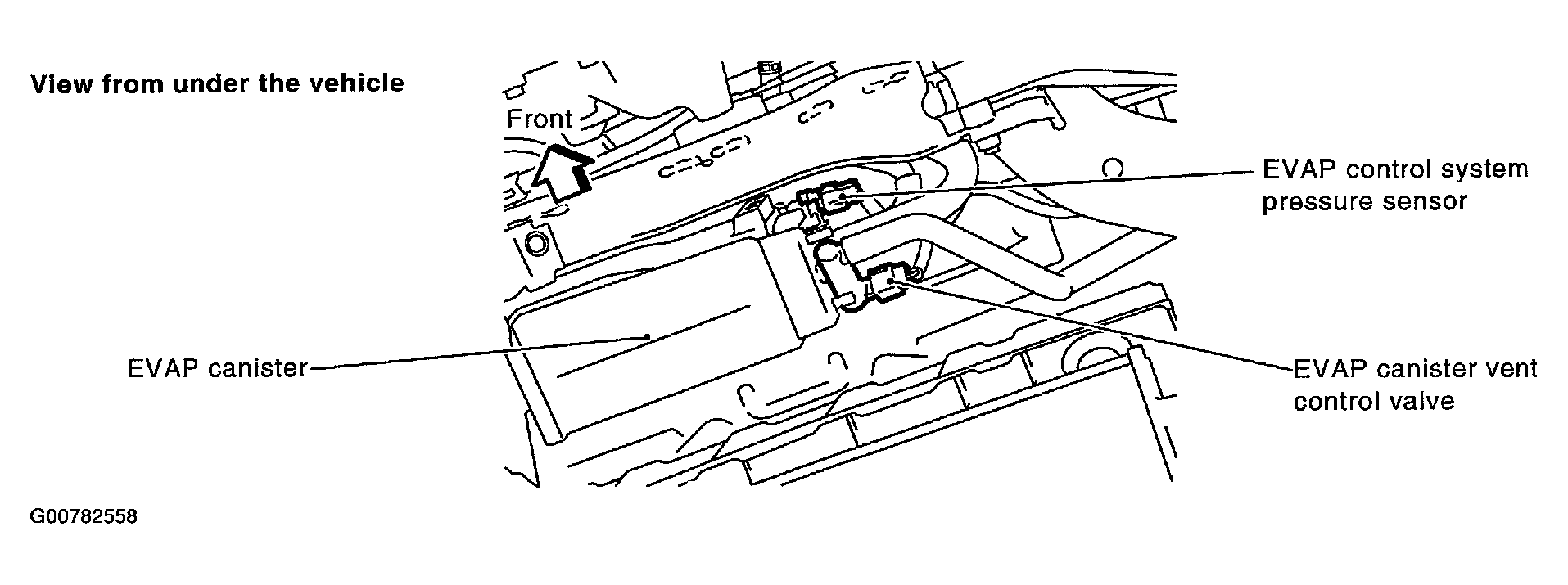

Fig 1: Locating EVAP Control System Pressure Sensor (P0453)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: EVAP Control System Pressure Sensor Voltage-Pressure Graph (P0453)

Courtesy of NISSAN MOTOR CO., U.S.A.
