CONSULT-II Reference Value in Data Monitor Mode

Specification data are reference values.

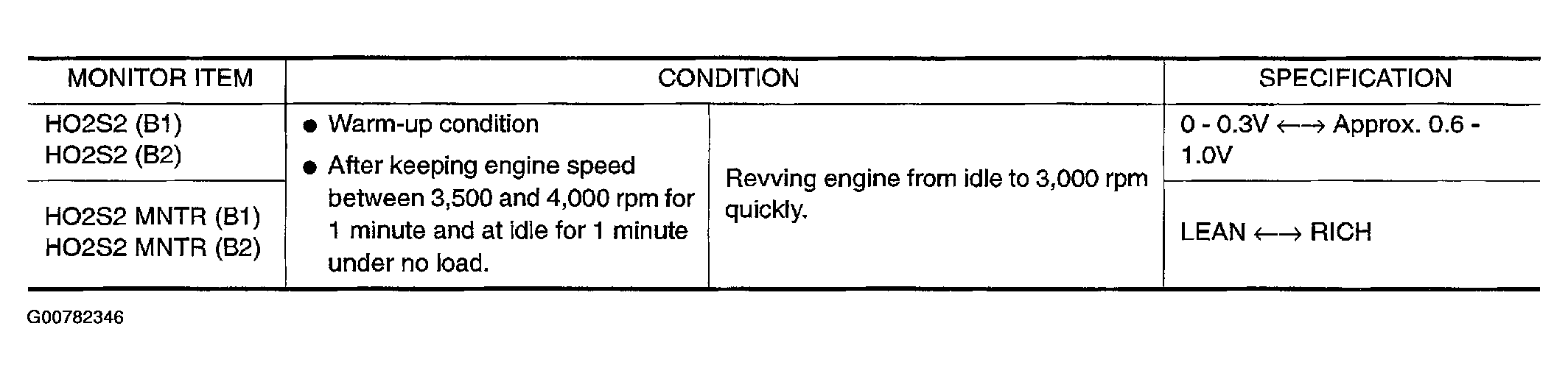

Fig 1: Data Monitor Consult-II Reference Value Chart (P0139, P0159)

G00782346

Courtesy of NISSAN MOTOR CO., U.S.A.
