Idle Speed And Ignition Timing

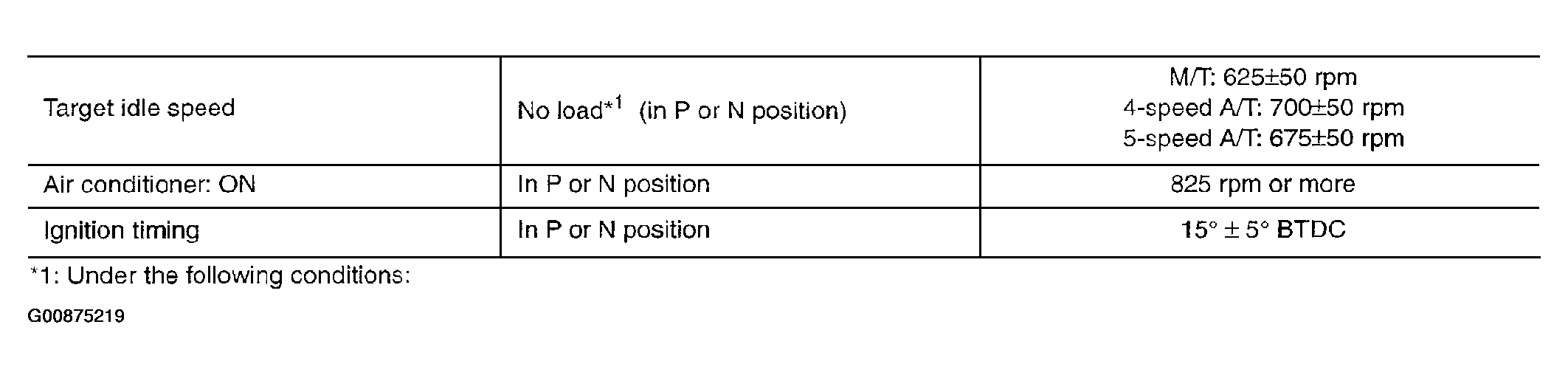

Fig 1: Idle Speed and Ignition Timing
G00875219Courtesy of NISSAN MOTOR CO., U.S.A.
