Consult-II Function Application

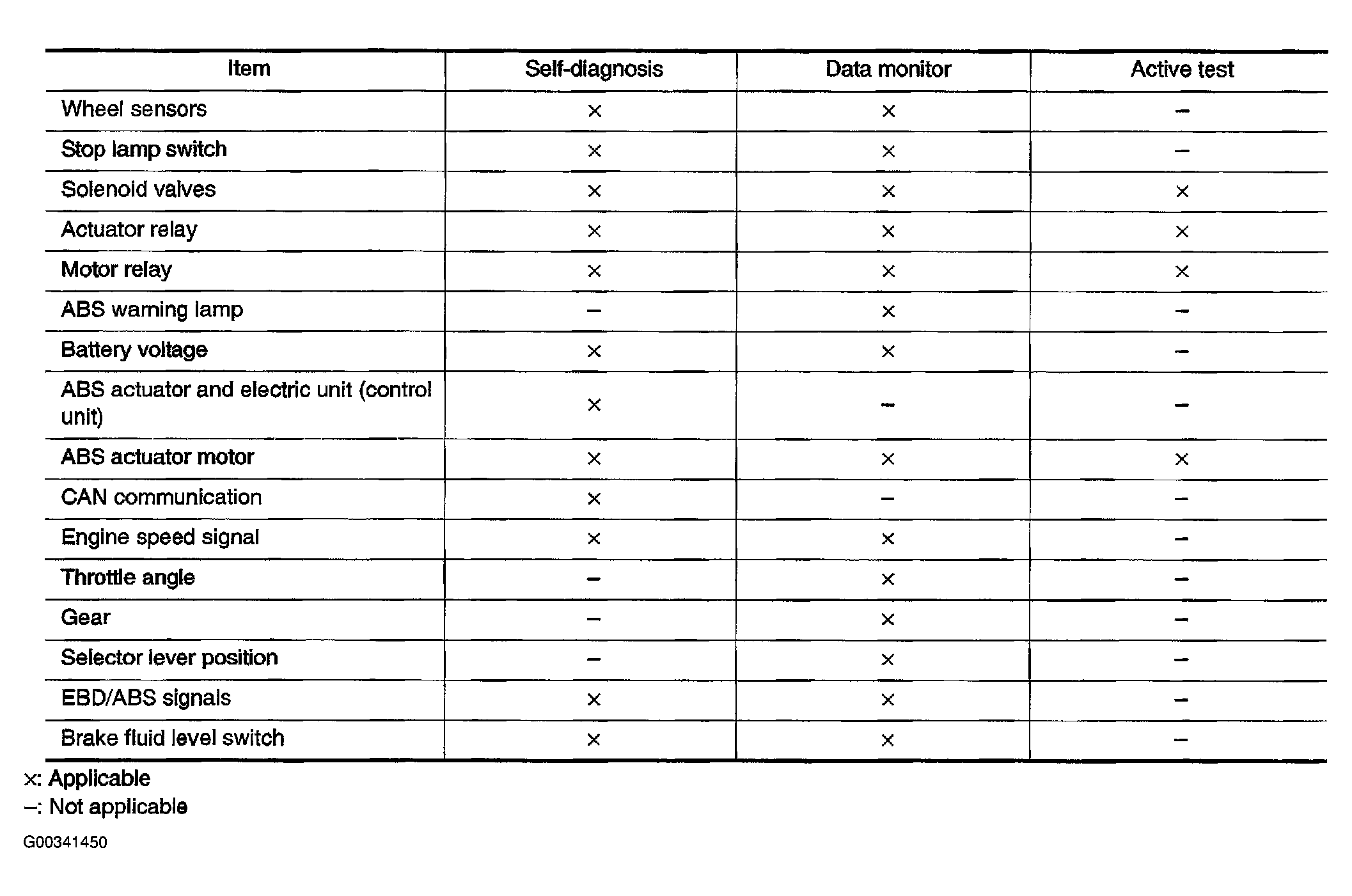

Fig 1: CONSULT-II Function Application
G00341450Courtesy of NISSAN MOTOR CO., U.S.A.
