Generic Scan Tool (GST) Function: Function

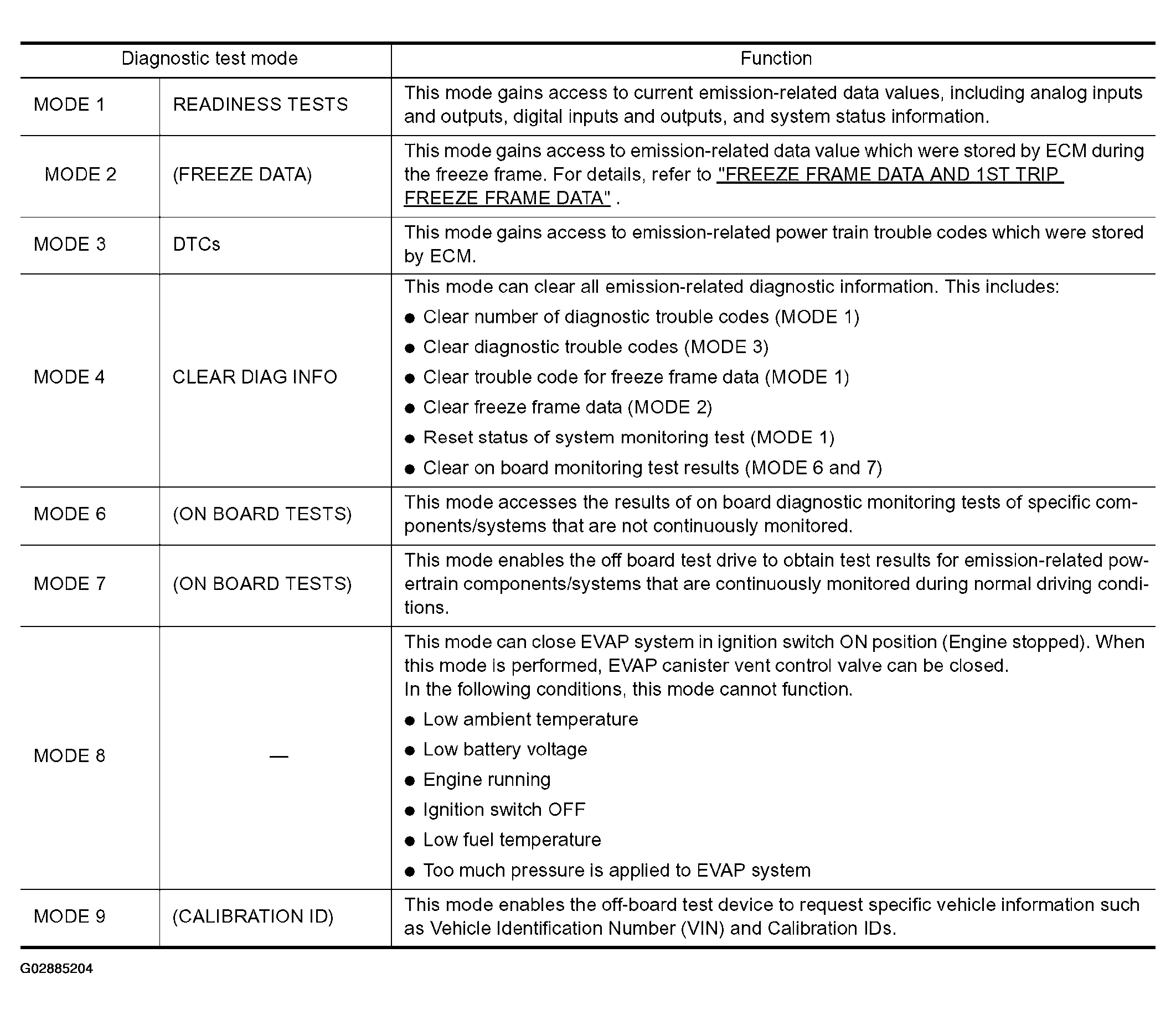

Fig 1: Diagnostic Test Mode Function Chart

G02885204

Courtesy of NISSAN MOTOR CO., U.S.A.
