DTC P0101: MAF Sensor
>>
CONSULT-II Reference Value in Data Monitor Mode
CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

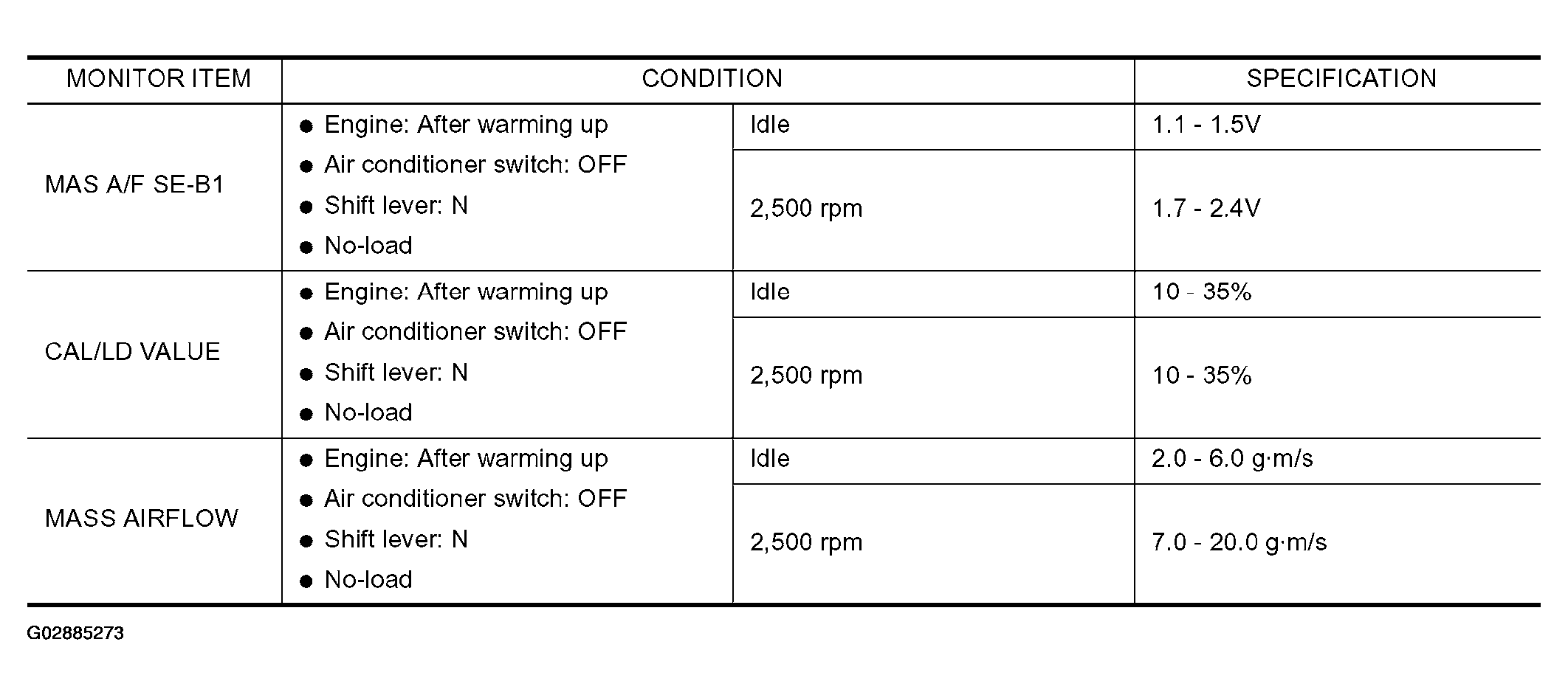

Fig 1: Specification Data Are Reference Values Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
