Nissan-Datsun
>>
2003
>>
Sentra SE-R, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle (Re4F04B)
>>
Overall System
>>
Circuit Diagram
Circuit Diagram

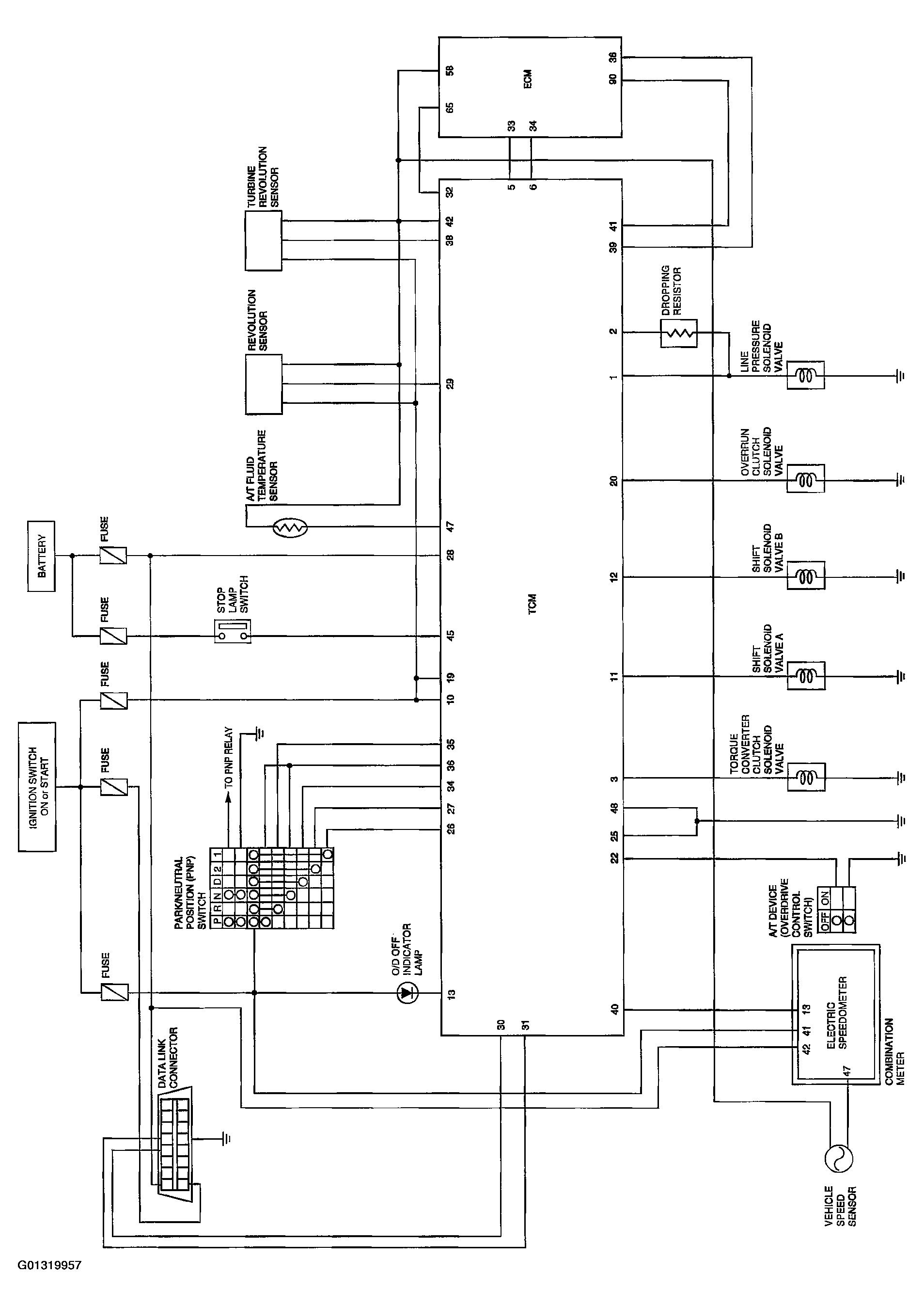

Fig 1: Automatic Transaxle System Circuit Diagram (RE4F04B)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
