Smart Entrance Control Unit Inspection Table

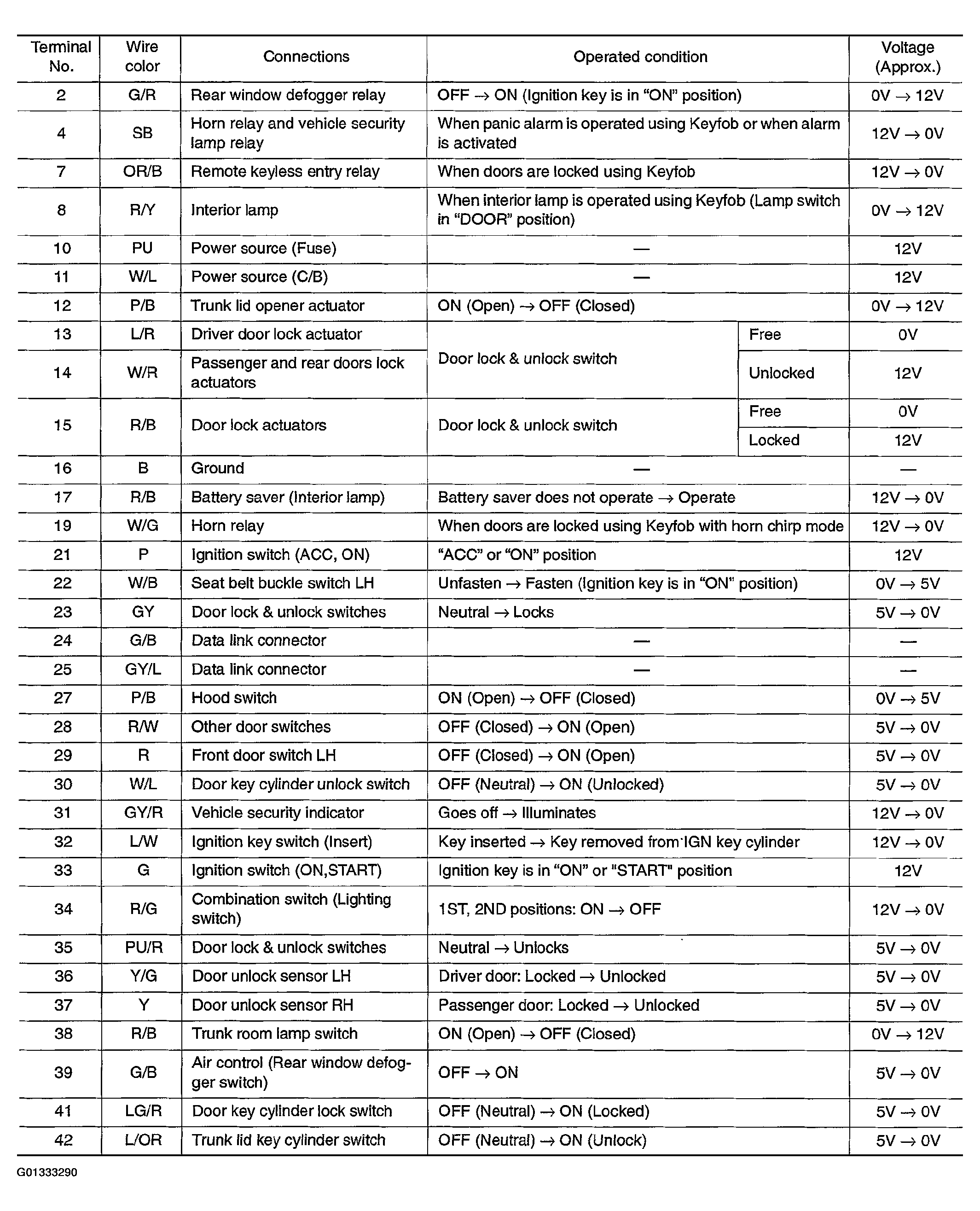

Fig 1: Smart Entrance Control Unit Inspection Chart

G01333290

Courtesy of NISSAN MOTOR CO., U.S.A.
