Section 12 (Automatic Transaxle Re4F04B)
>>
Trouble Diagnosis - Introduction
>>
Work Flow
>>
Work Flow Chart
Work Flow Chart
WARNING:
This page is about a different variant/trim than selected.

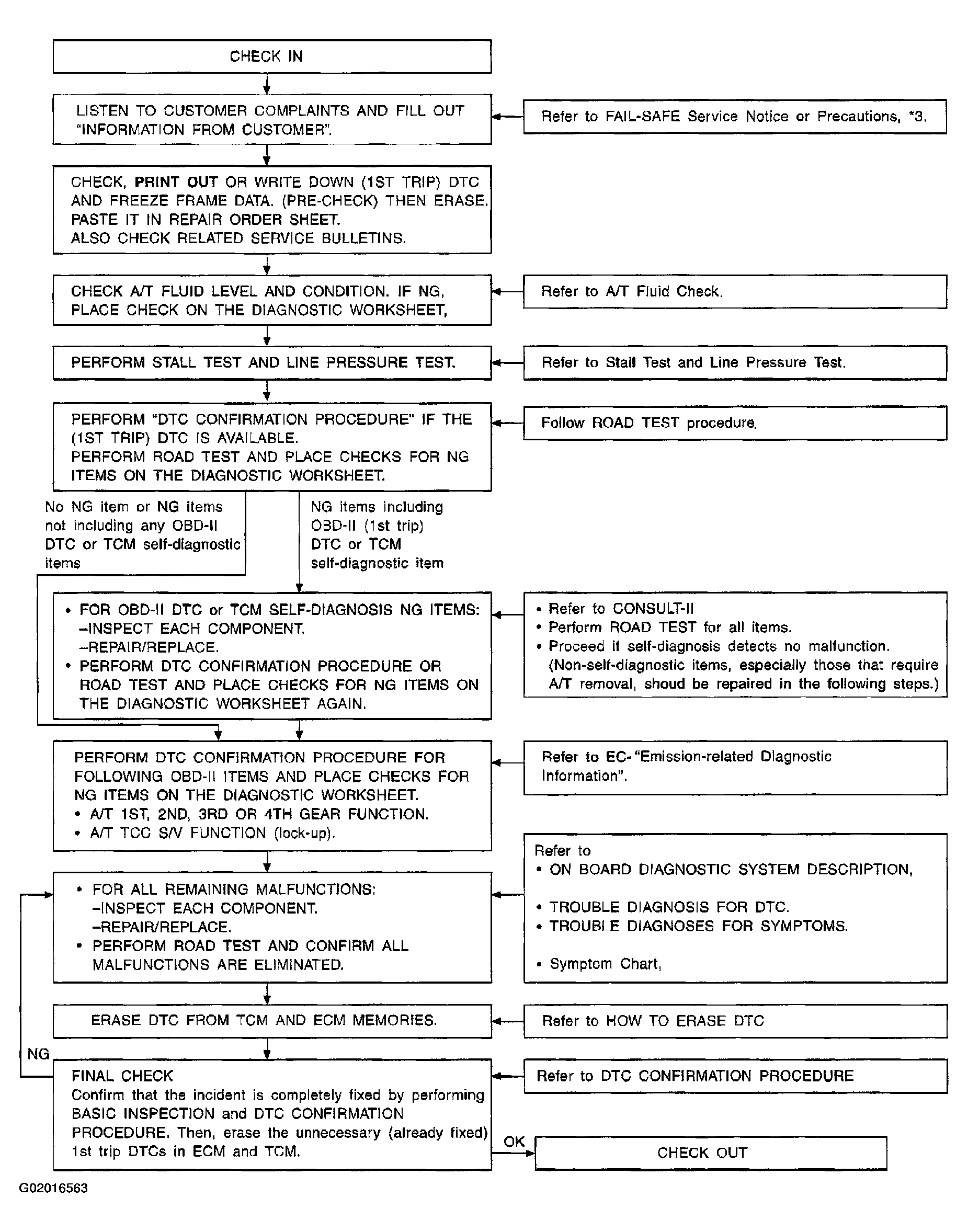

Fig 1: Diagnostic Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
