Work Support Mode

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

For work support mode, see Fig 1.

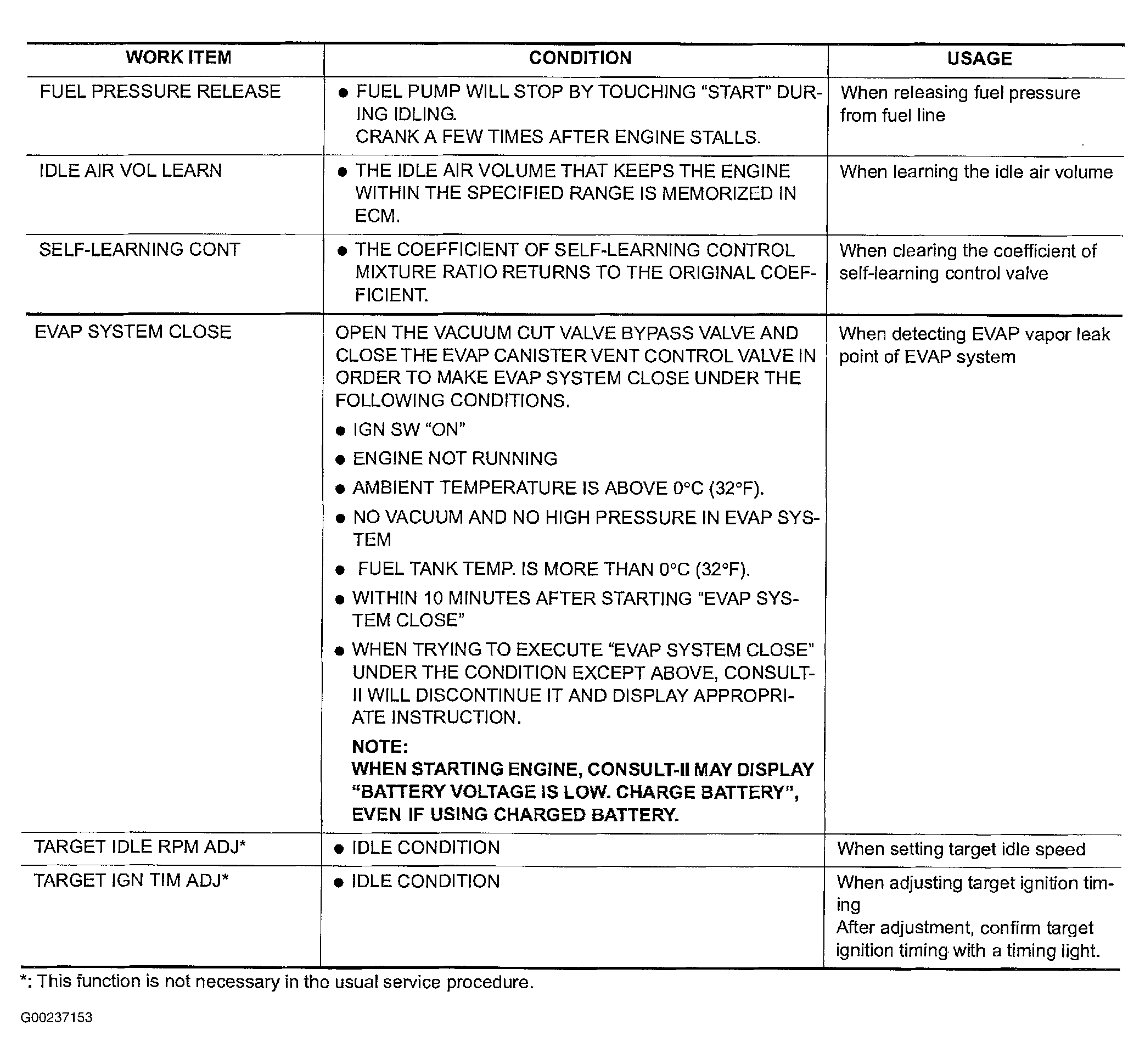

Fig 1: Identifying Work Support Mode
G00237153Courtesy of NISSAN MOTOR CO., U.S.A.
