Diagnostic Procedure 1
Diagnostic Procedure 1

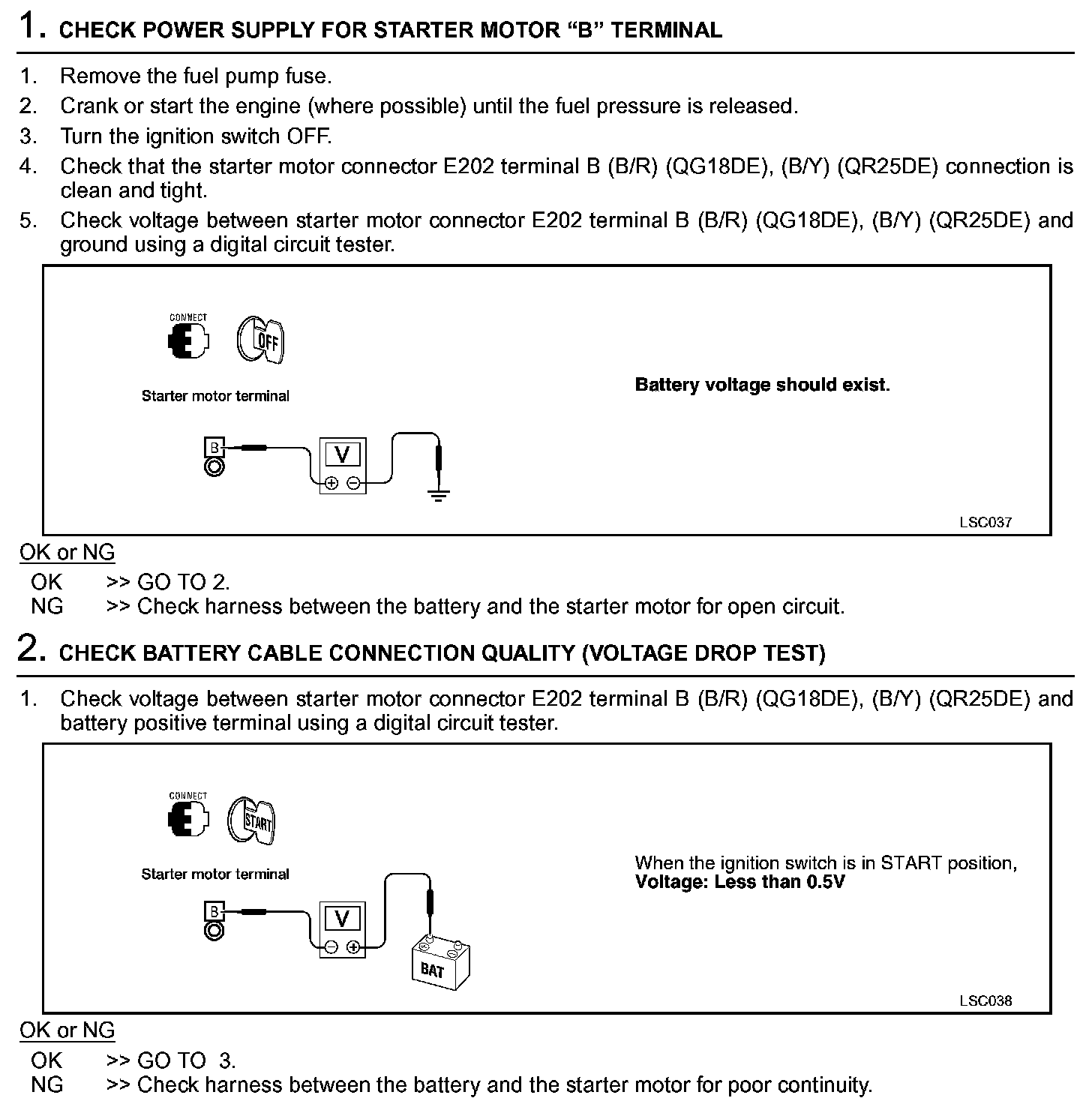

Diagnostic Procedure 1 Check "B" Terminal Circuit Step 1 - 2:
Diagnostic Procedure 1 Check "B" Terminal Circuit Step 3:
