Home >> Nissan-Datsun >> 2002 >> Sentra SE-R L4-2.5L (QR25DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Constant Velocity Joint

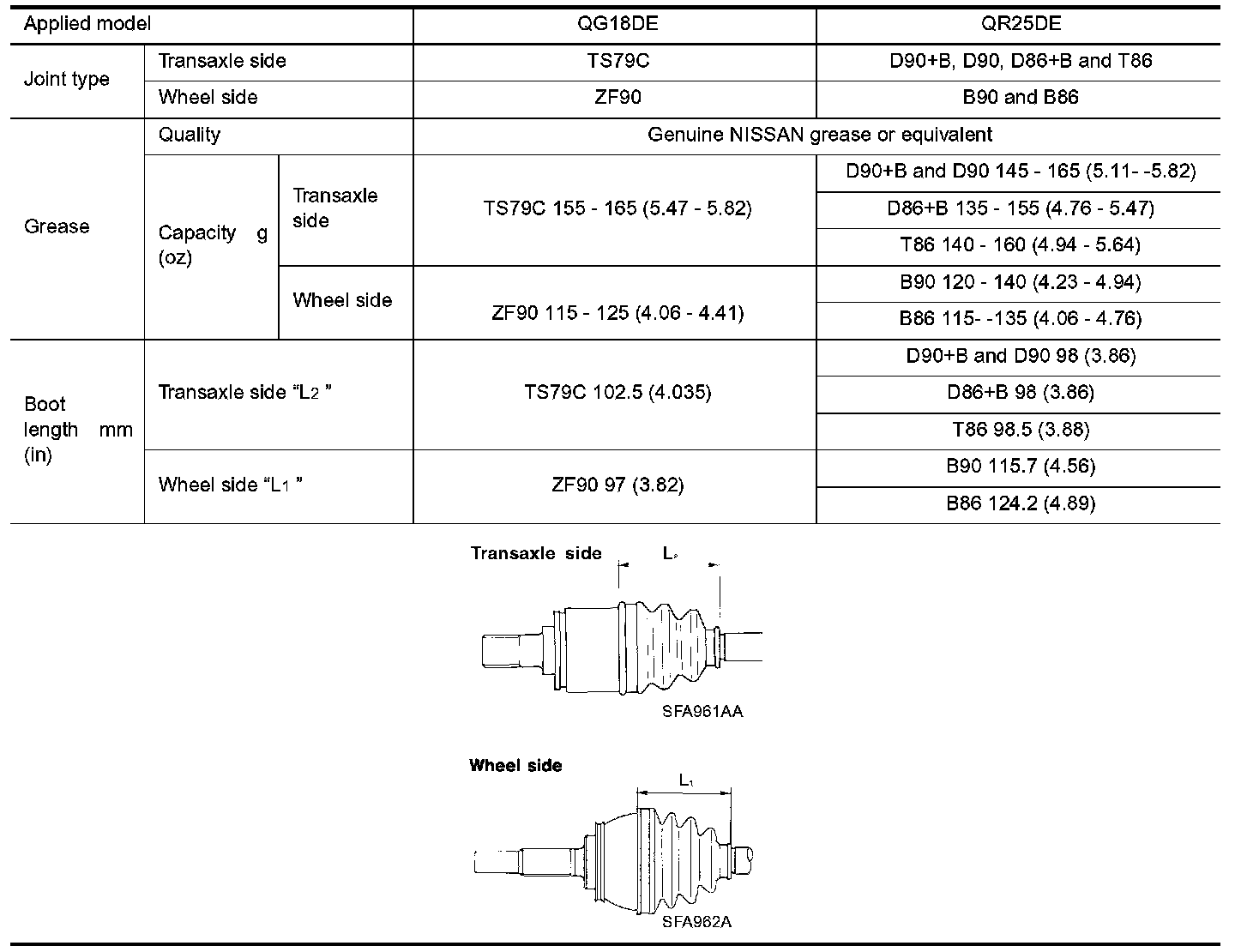

Constant Velocity Joint

Front Axle

Drive Shaft

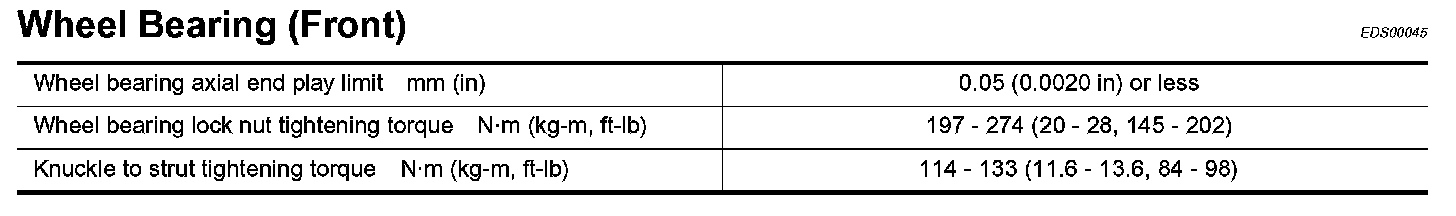

Wheel Bearing (Front)
