Home >> Nissan-Datsun >> 2002 >> Sentra SE-R L4-2.5L (QR25DE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Knock Sensor >> Locations

Knock Sensor: Locations

Knock Sensor Harness Connector / Drive Shaft RH / Power Steering Oil Pressure Switch Harness Connector:

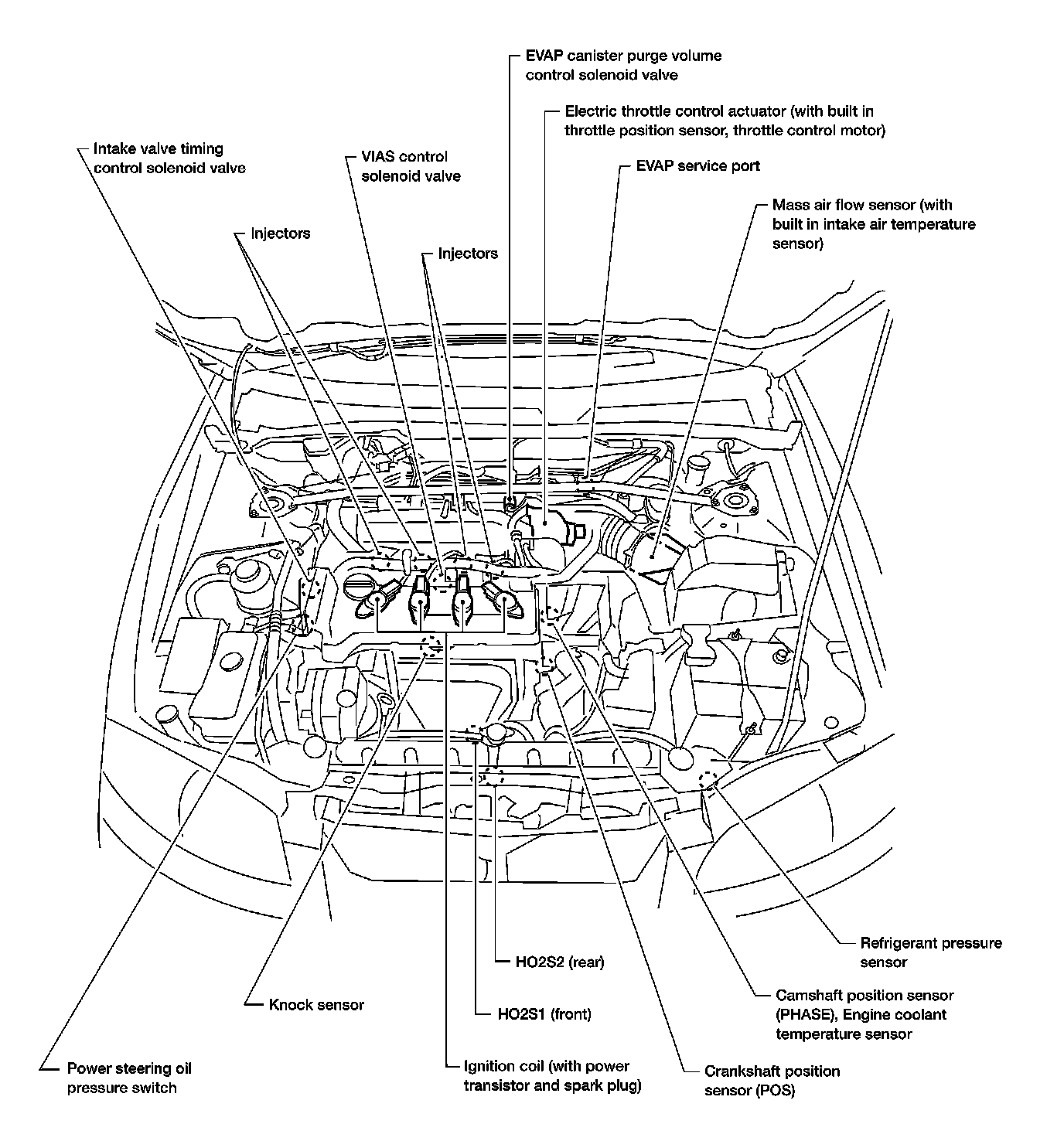

Engine Control Component Parts Location Part 1:
