Wiring Diagram Codes

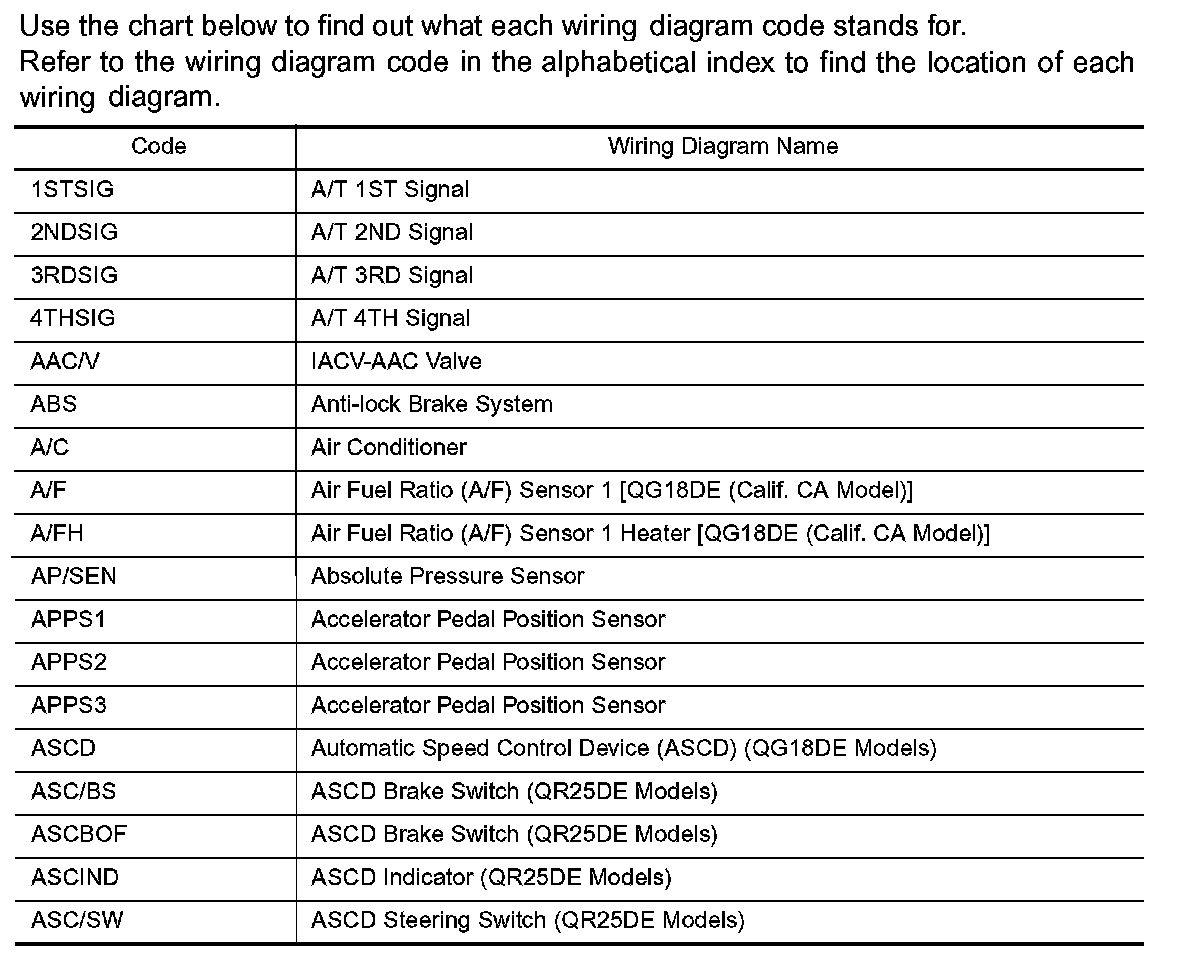

Wiring Diagram Codes (Cell Codes) Part 1:

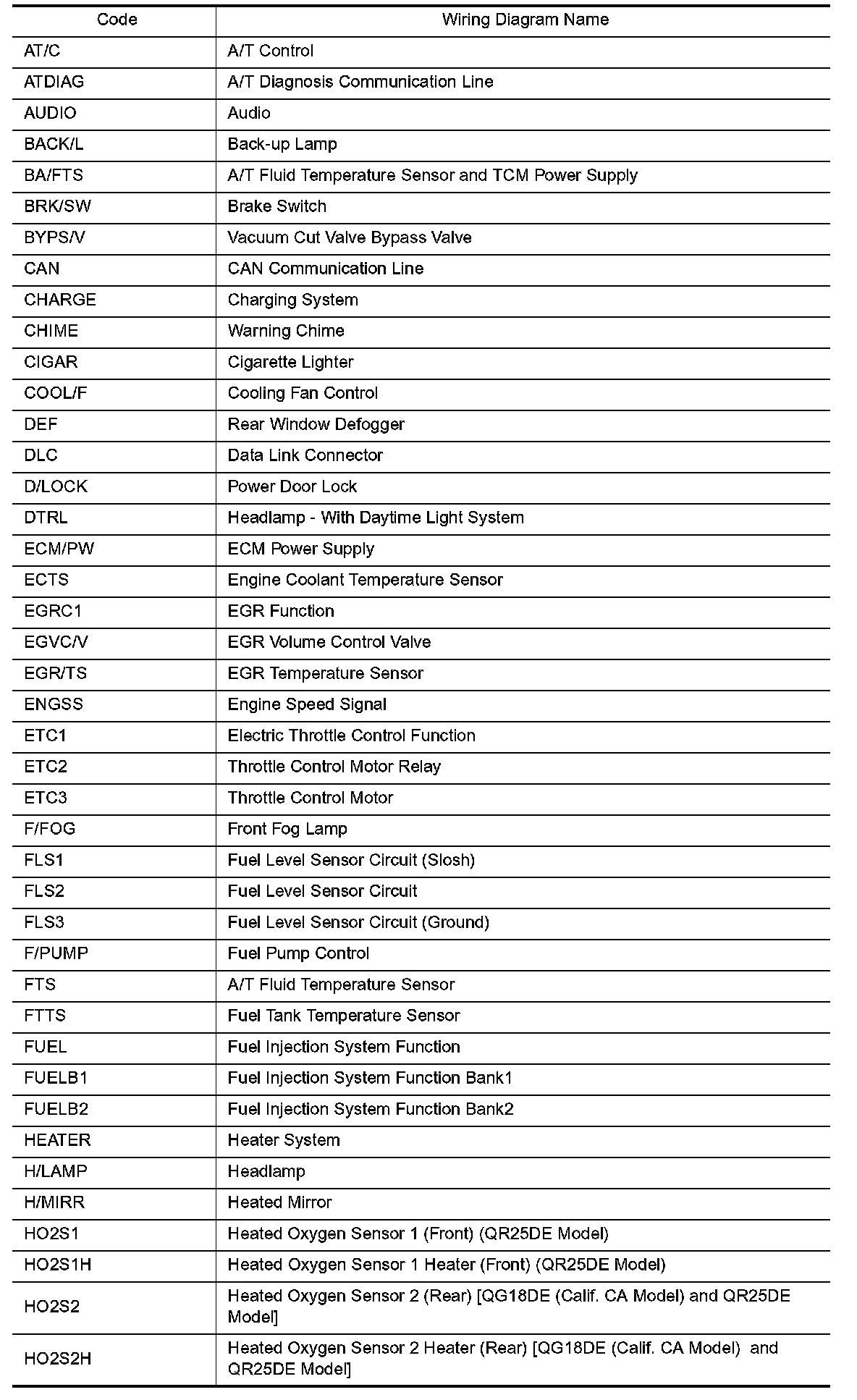

Wiring Diagram Codes (Cell Codes) Part 2:

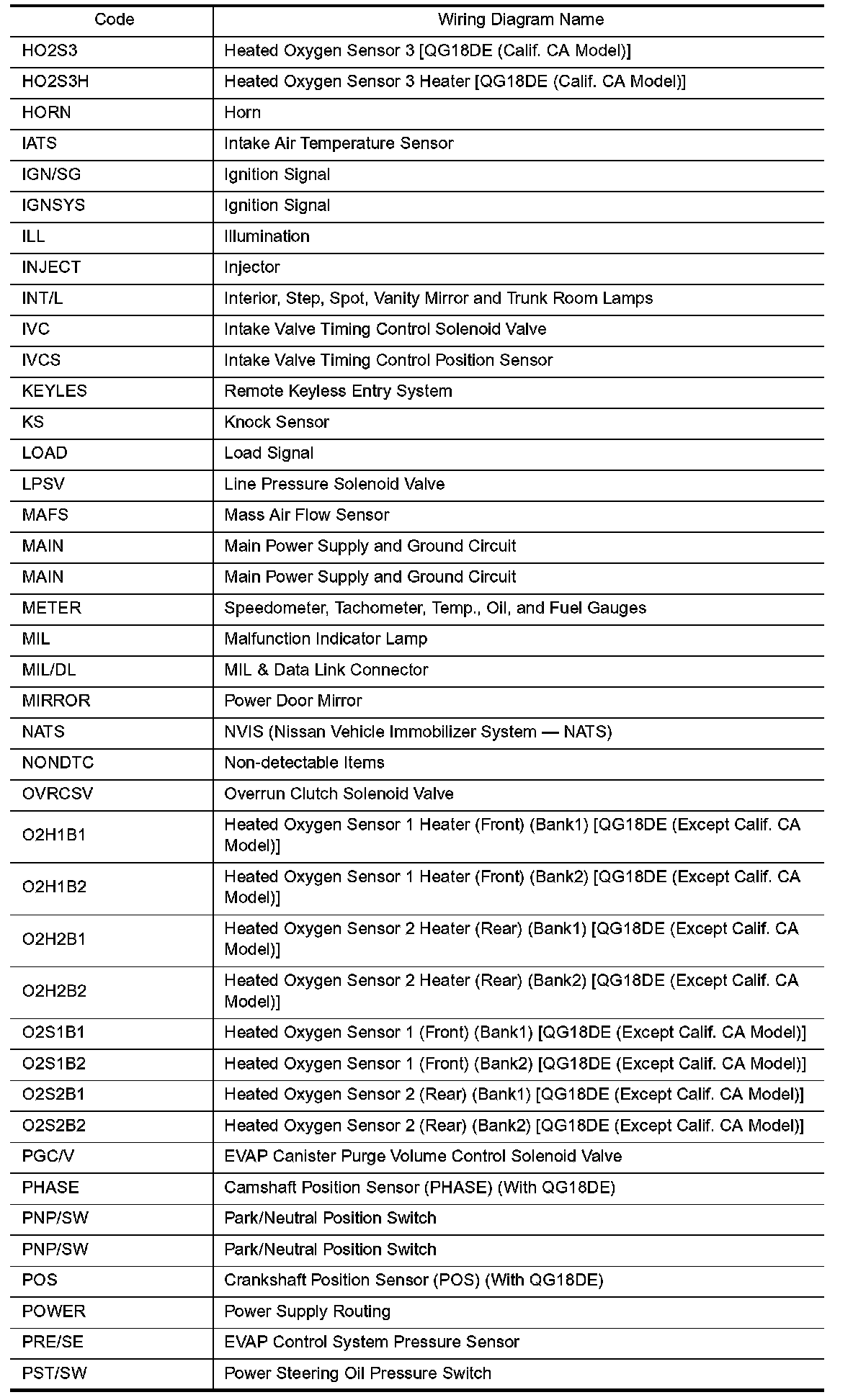

Wiring Diagram Codes (Cell Codes) Part 3:

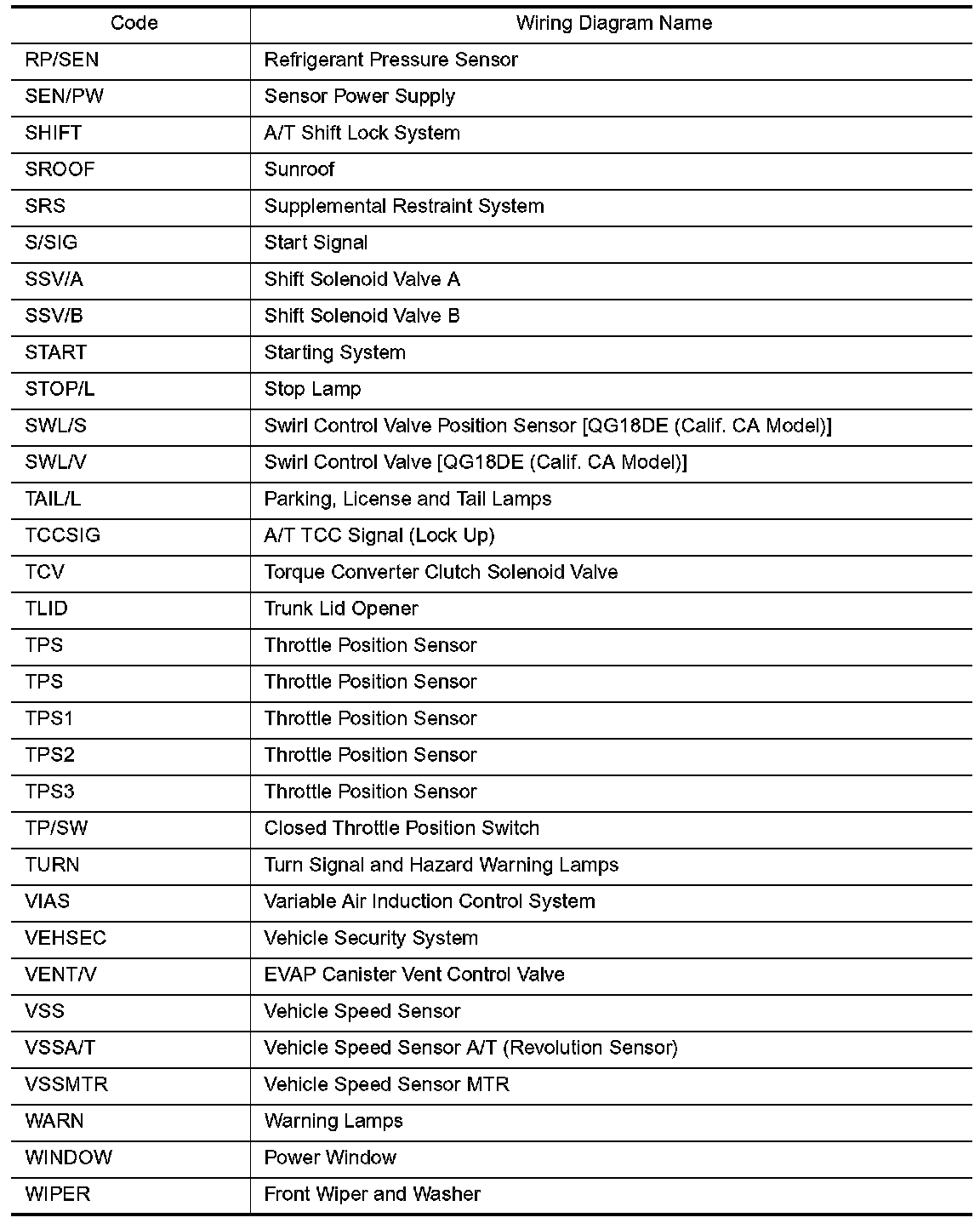

Wiring Diagram Codes (Cell Codes) Part 4:
