MTC-A/C

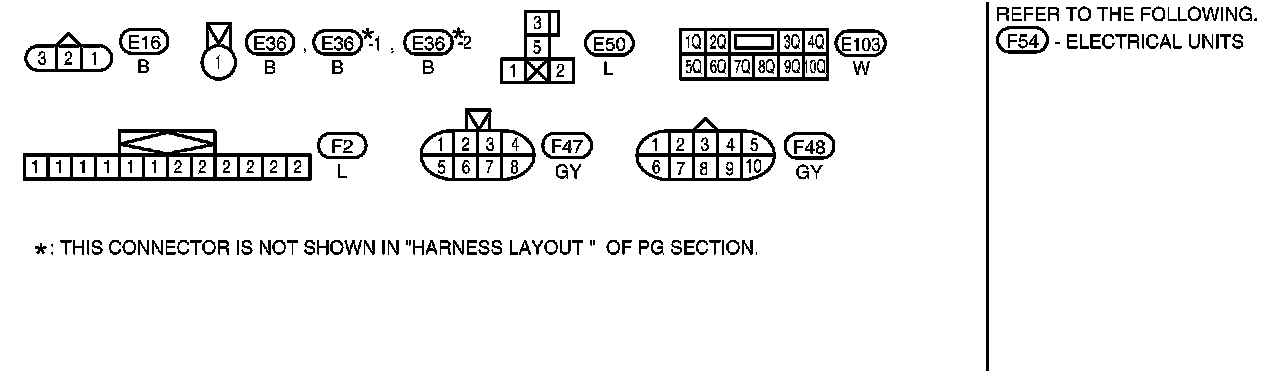

MTC-A/C-01 Connector Views:

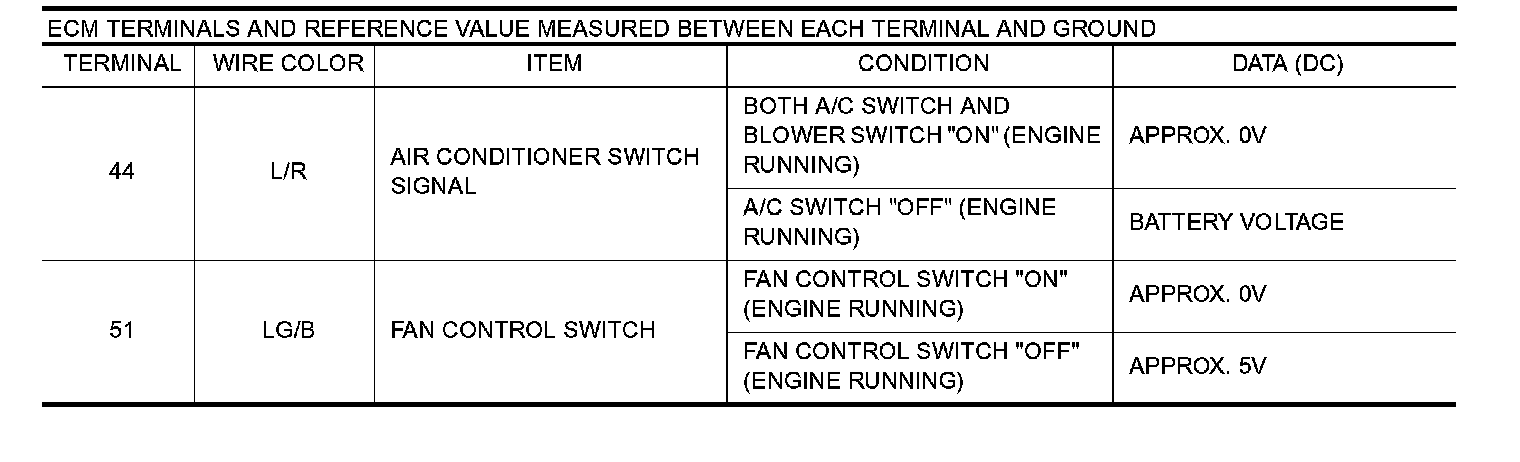

ECM Terminals And Reference Value Measured Between Each Terminal And Ground:

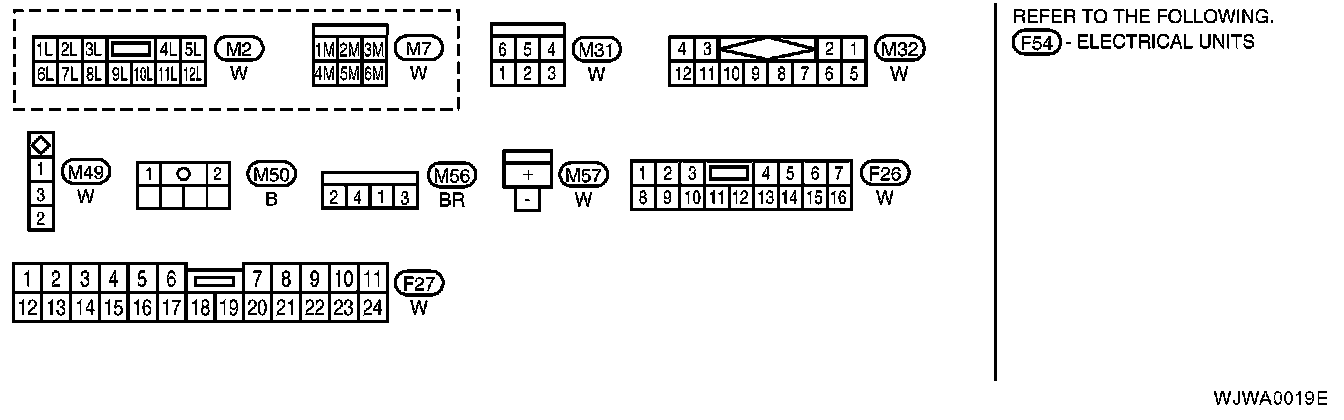

MTC-A/C-02 Connector Views:

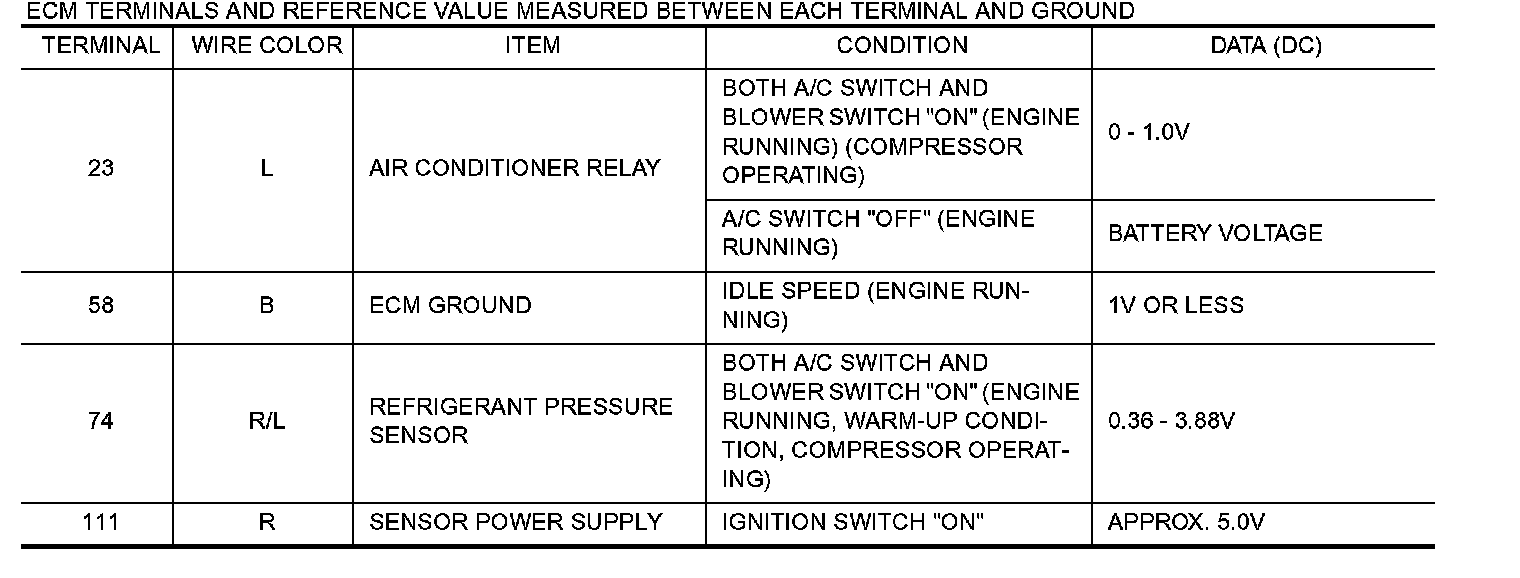

ECM Terminals And Reference Value Measured Between Each Terminal And Ground:

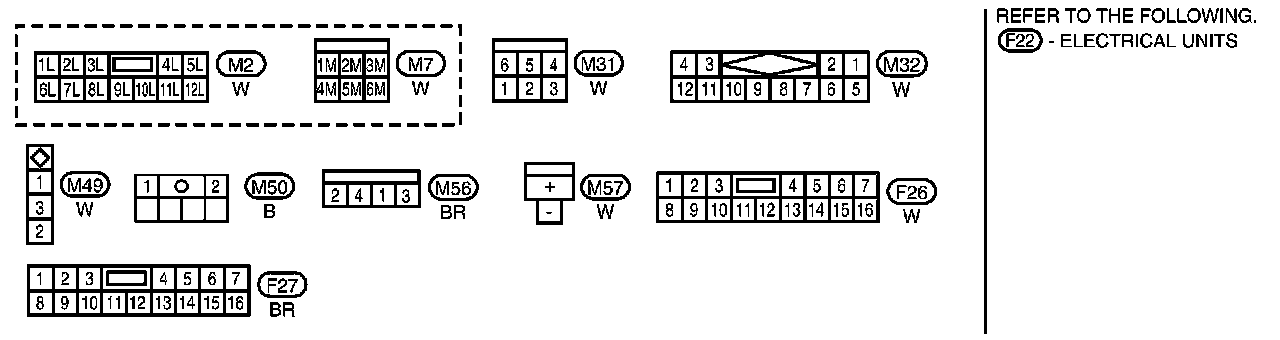

MTC-A/C-03 Connector Views:

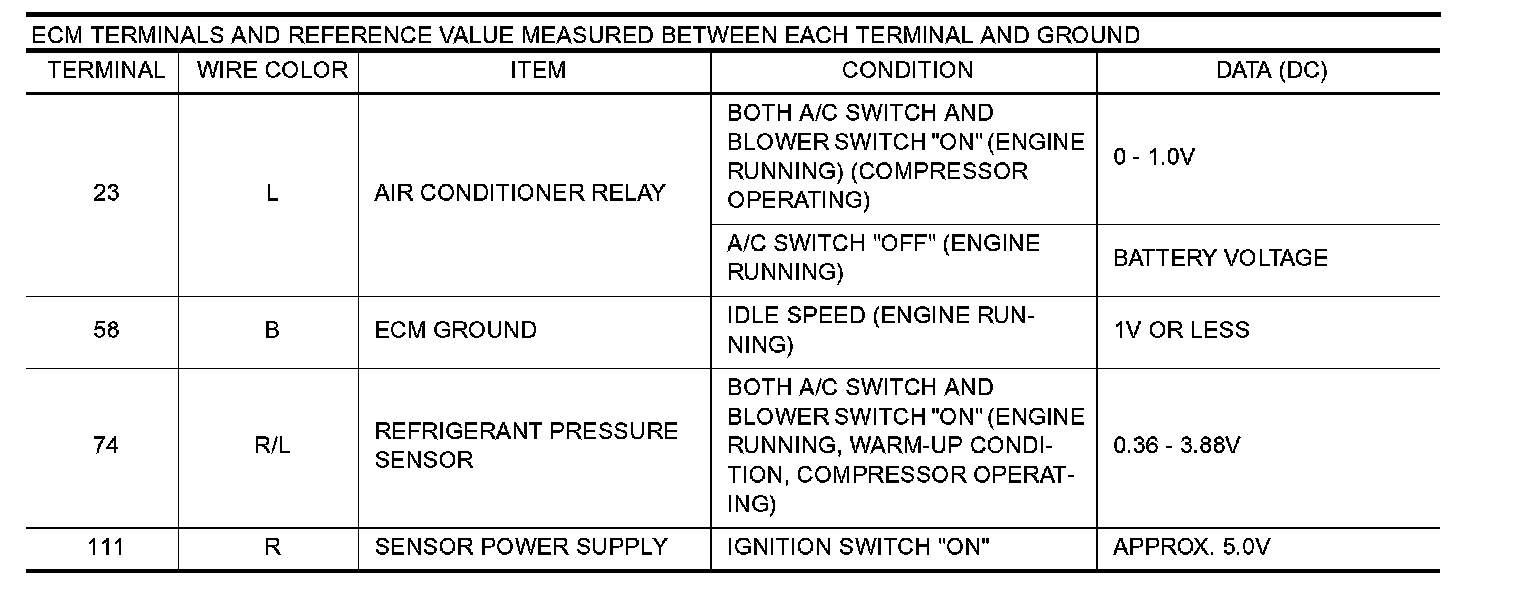

ECM Terminals And Reference Value Measured Between Each Terminal And Ground:

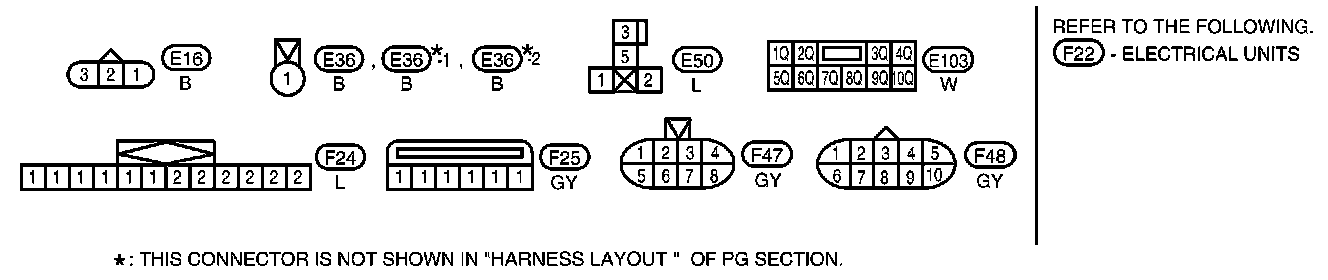

MTC-A/C-04 Connector Views:

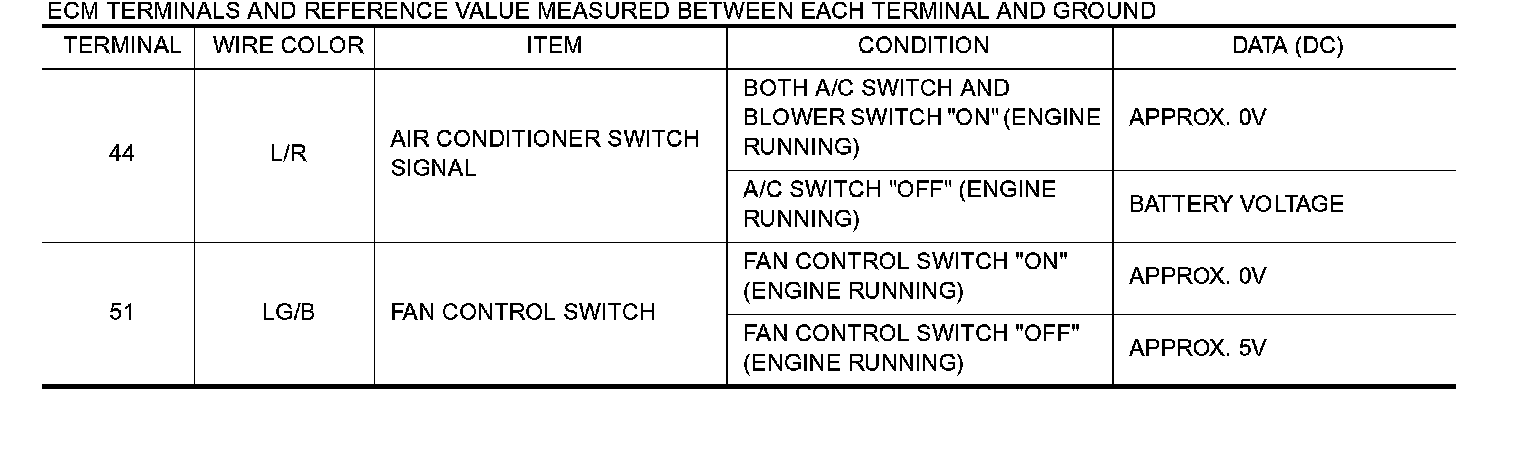

ECM Terminals And Reference Value Measured Between Each Terminal And Ground:
