Keyless Entry

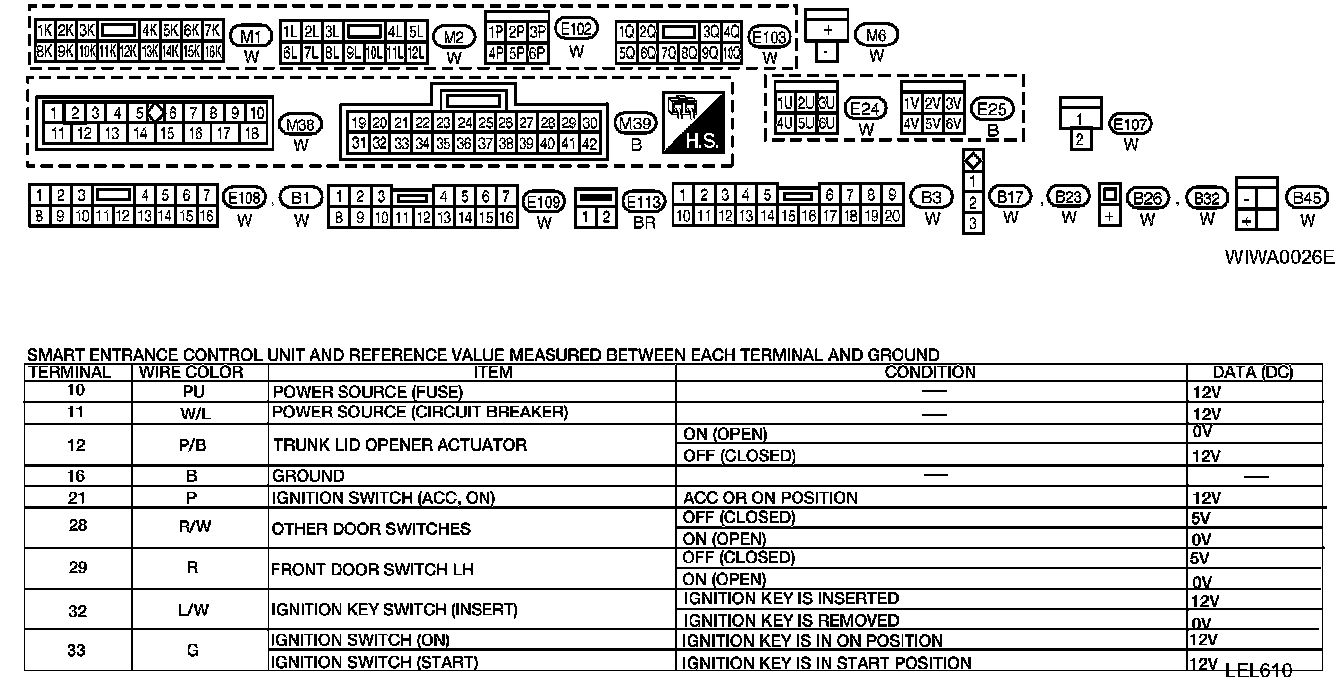

BL-KEYLES-01 Connector Views:

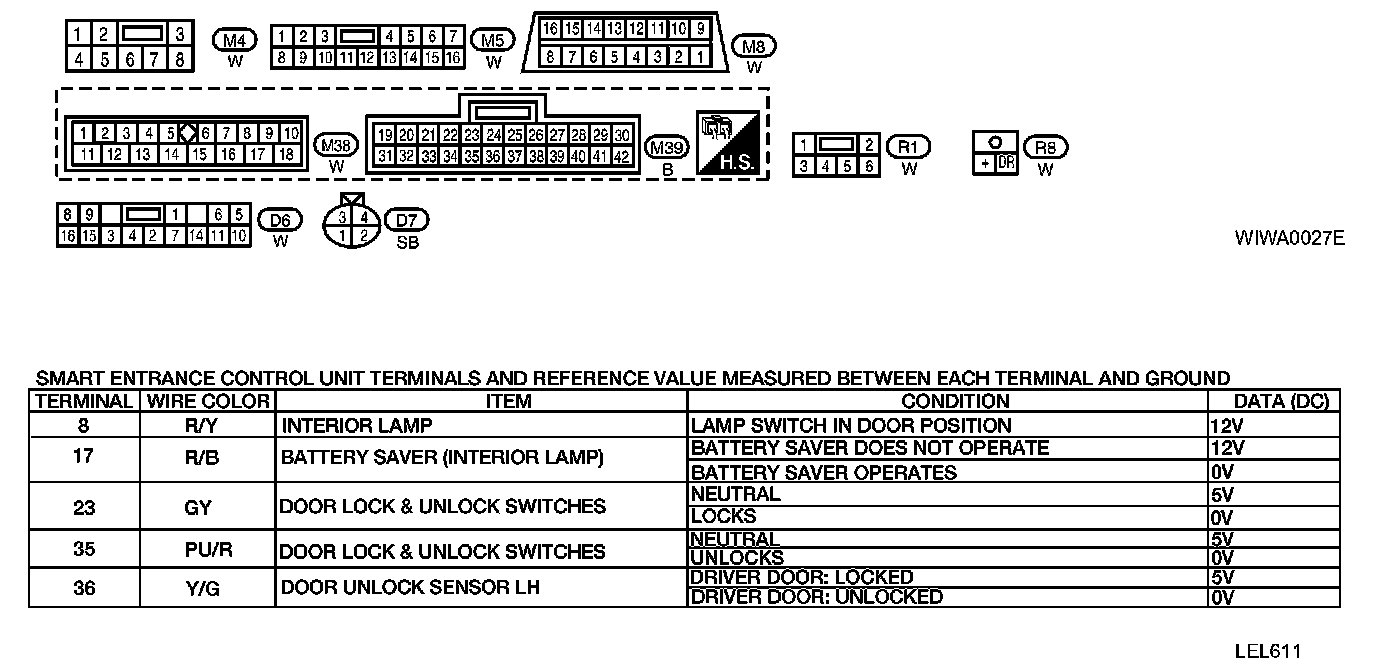

BL-KEYLES-02 Connector Views:

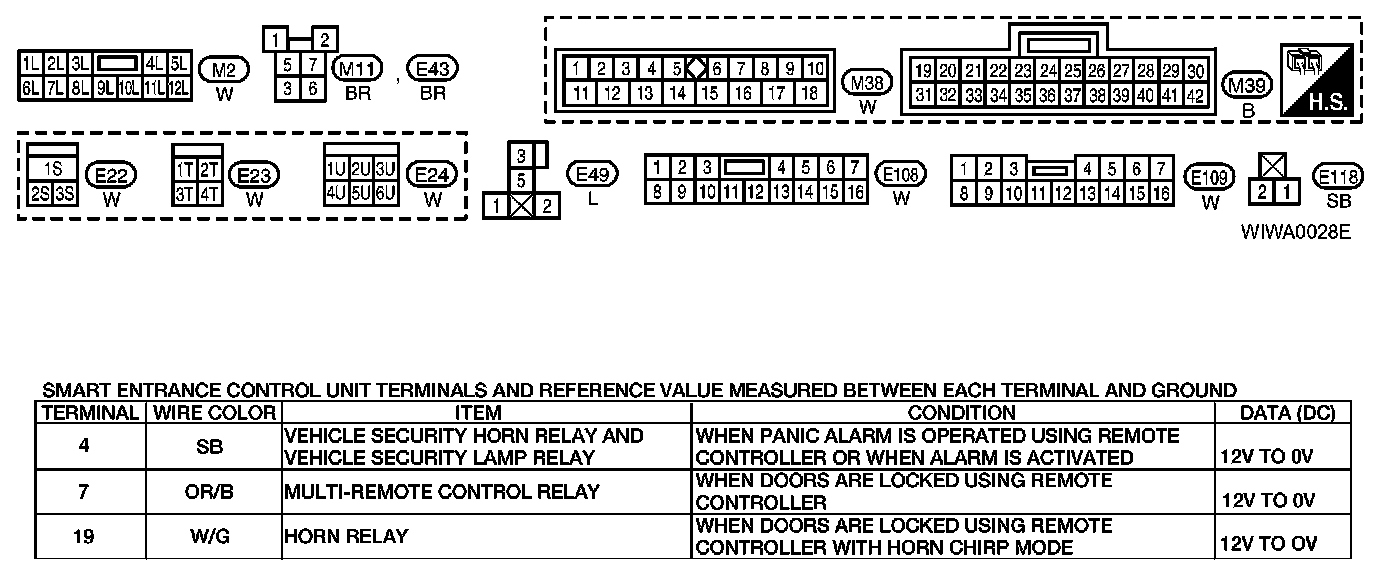

BL-KEYLES-03 Connector Views:
