Clutch Switch: Testing and Inspection

ASCD CLUTCH SWITCH (FOR M/T MODELS)
1. Turn ignition switch "OFF".
2. Disconnect ASCD clutch switch harness connector.

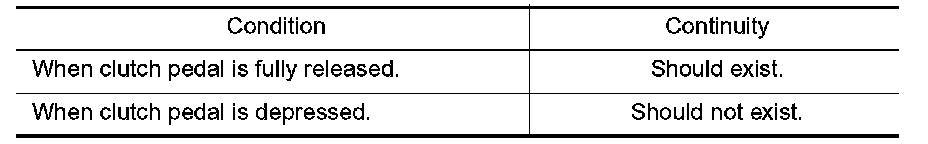

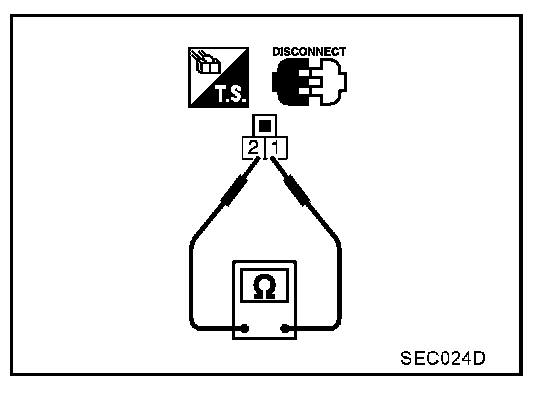

3. Check continuity between ASCD clutch switch terminals 1 and 2 under the given conditions.
If NG, adjust ASCD clutch switch installation, refer to "CLUTCH SYSTEM" , and perform step 3 again.
