Nissan-Datsun
>>
2002
>>
Sentra SE-R L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Brake Switch (Cruise Control)
>>
Diagrams
>>
Connector Views
>>
EC-ASCBOF
EC-ASCBOF

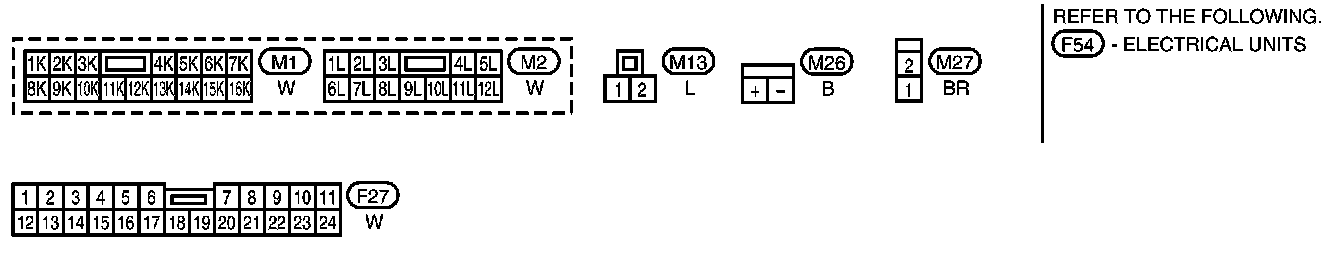

EC-ASCBOF-01 Connector Views:
