Torque Converter

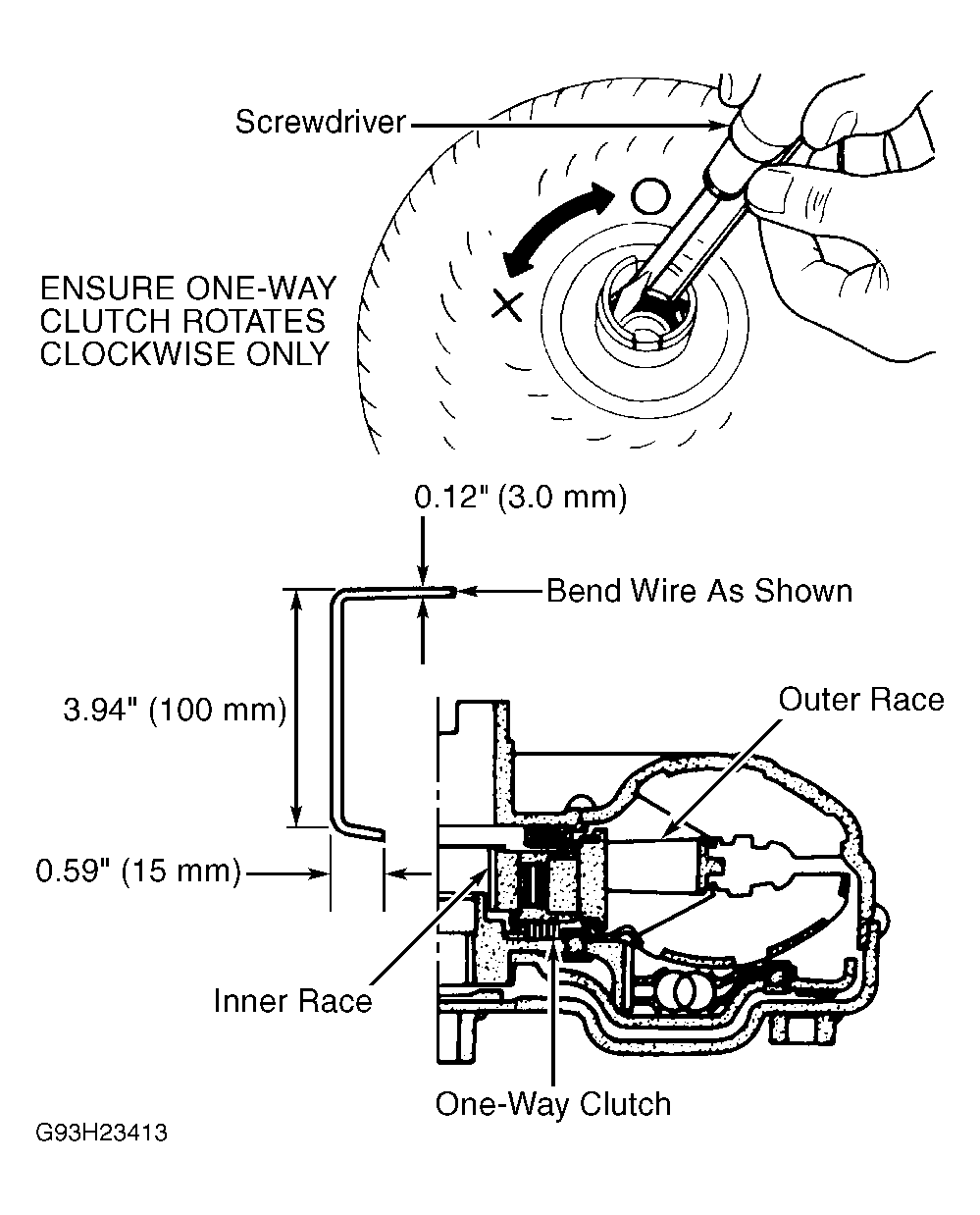

- Torque converter is a sealed unit and cannot be disassembled for service. Replace torque converter if damaged. Check converter one-way clutch using flat-blade screwdriver and suitable wire. See Fig 1.
- Hook wire into groove of bearing support unitized with one-way clutch outer race. While holding bearing support with wire, rotate one-way clutch spline using screwdriver. Ensure inner race rotates clockwise only. If inner race rotates in both directions, replace torque converter.
Courtesy of NISSAN MOTOR CO., U.S.A.
