Code 32 - EGR Sensor (CALIF.)
Code 32 - EGR Sensor (CALIF.)

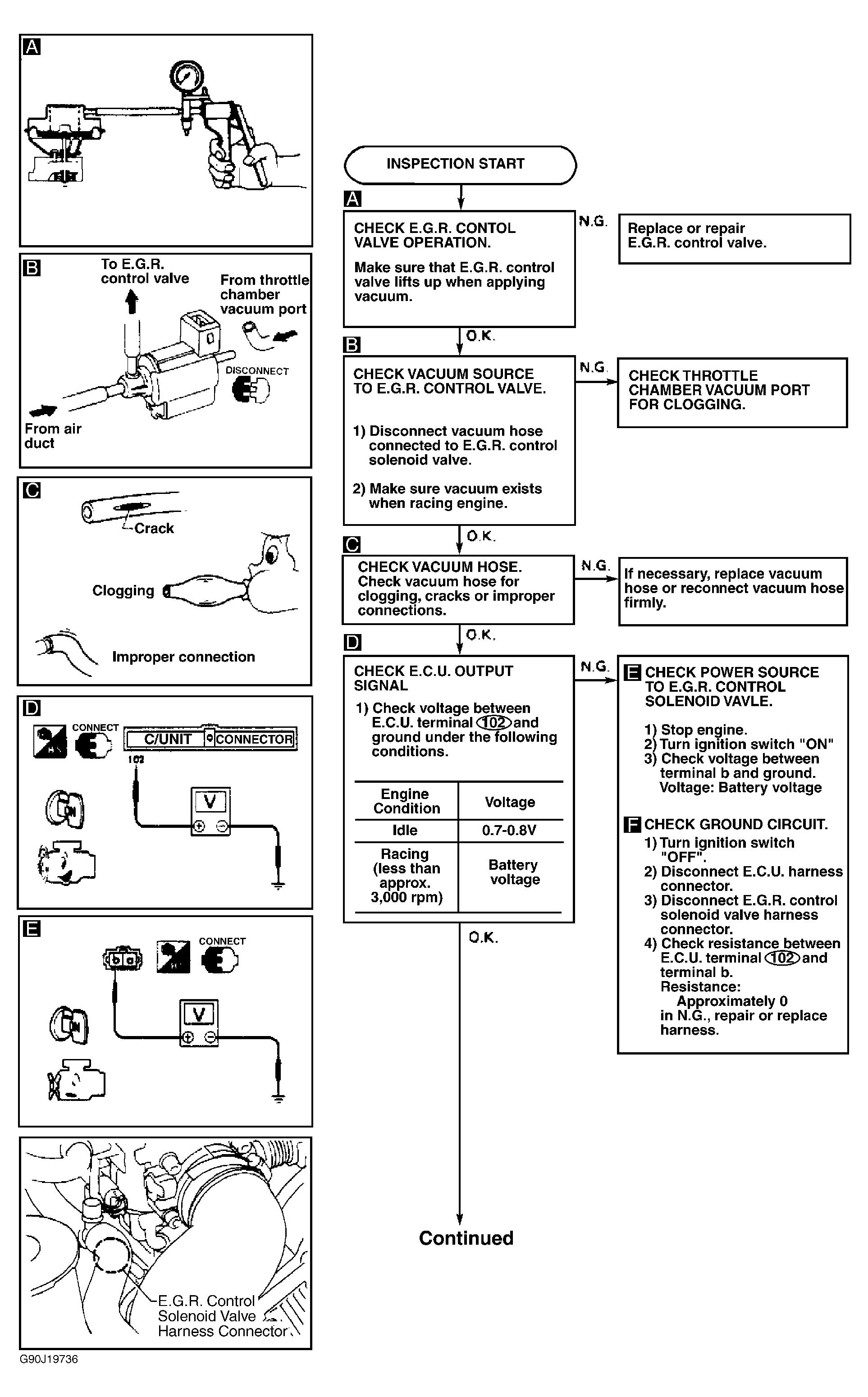

Fig 1: Code 32 - EGR Sensor (Calif.)(1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

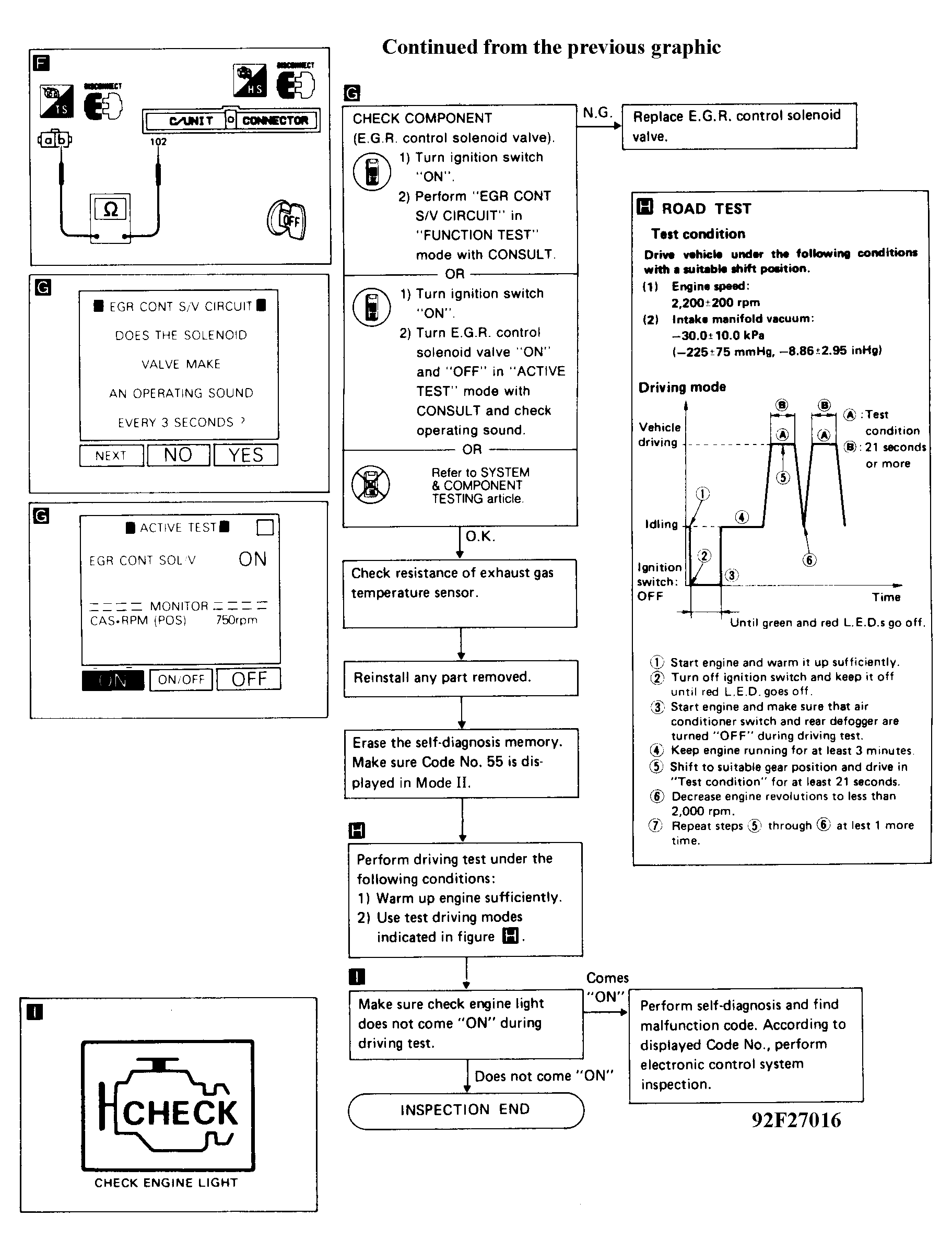

Fig 2: Code 32 - EGR Sensor (Calif.)(2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
