Home >> Mitsubishi >> 2023 >> Outlander PHEV ES >> Repair and Diagnosis >> Electrical >> Component Locations >> Grounding

Component Locations: Grounding

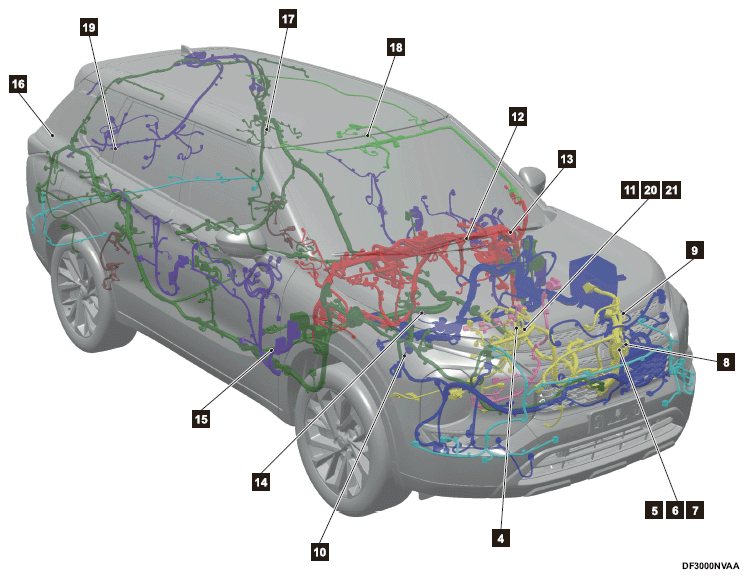

G16313973Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

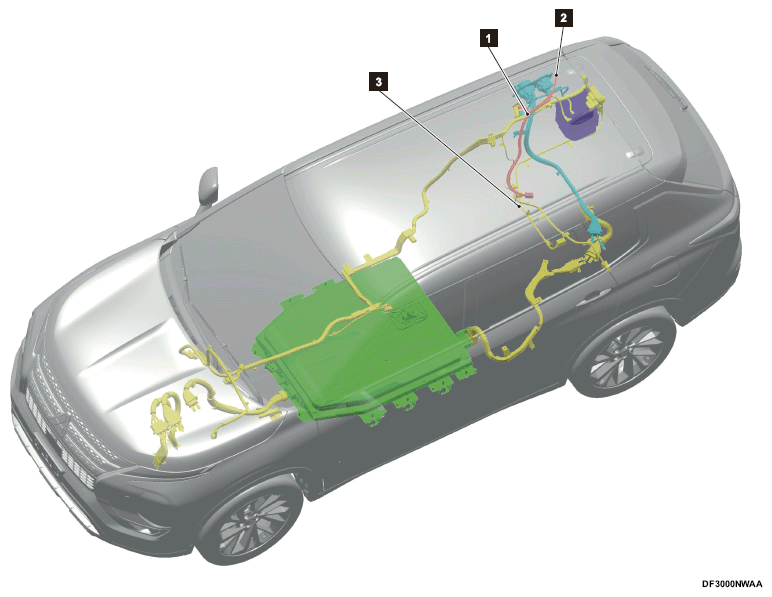

G16313974Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

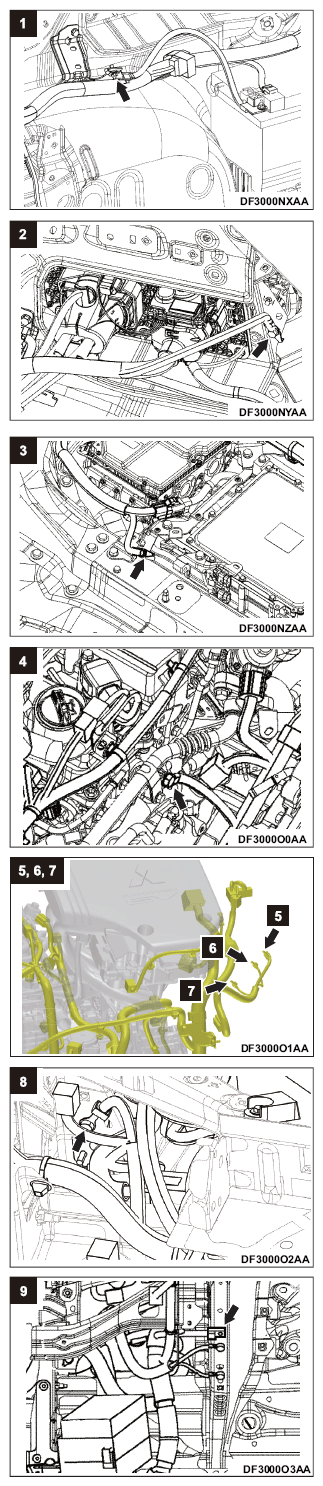

G16313975Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

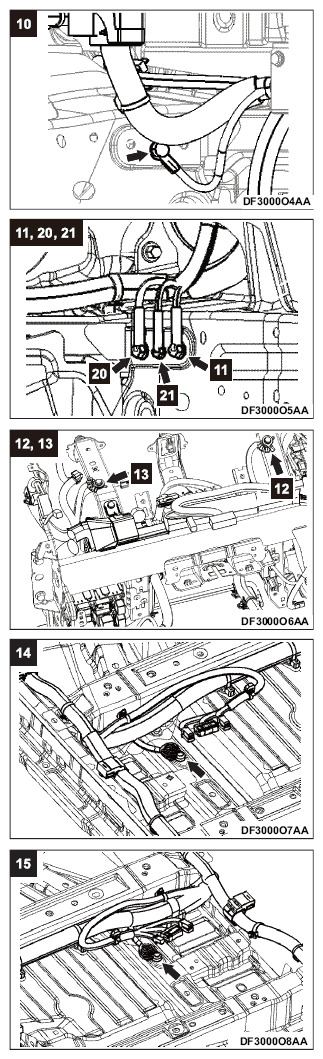

G16313976Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

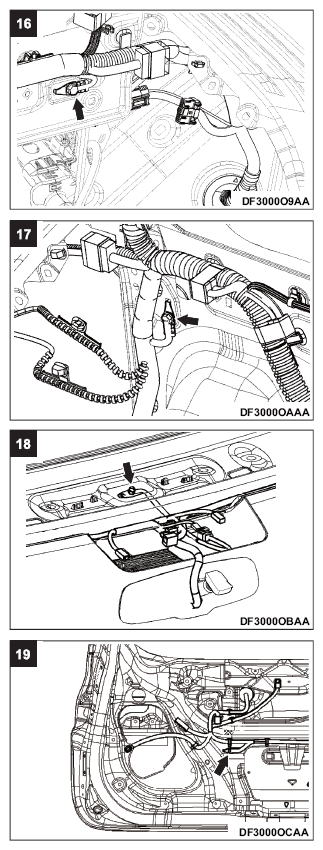

G16313977Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
