Removal And Installation: Notes

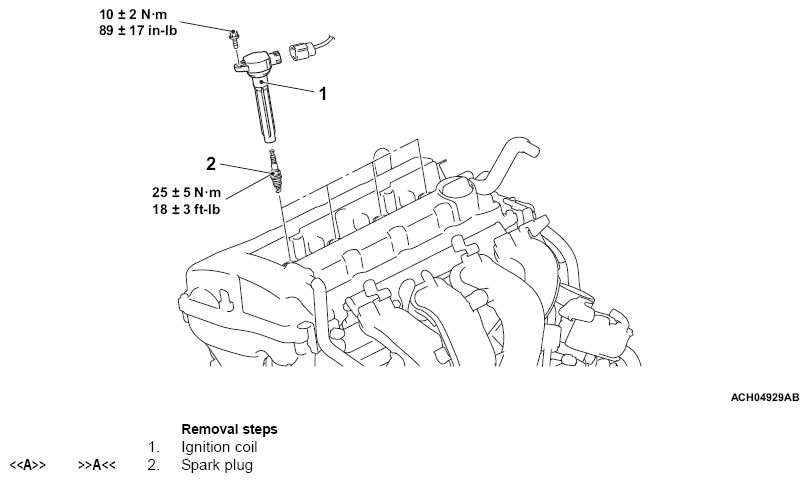

Fig 1: Removing/Installing Ignition Coil Components With Torque Specifications
G13782677Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
