Home >> Mitsubishi >> 2017 >> Mirage ES, Standard Trans >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Seat Assembly >> Disassembly And Reassembly >> Notes

Disassembly And Reassembly: Notes

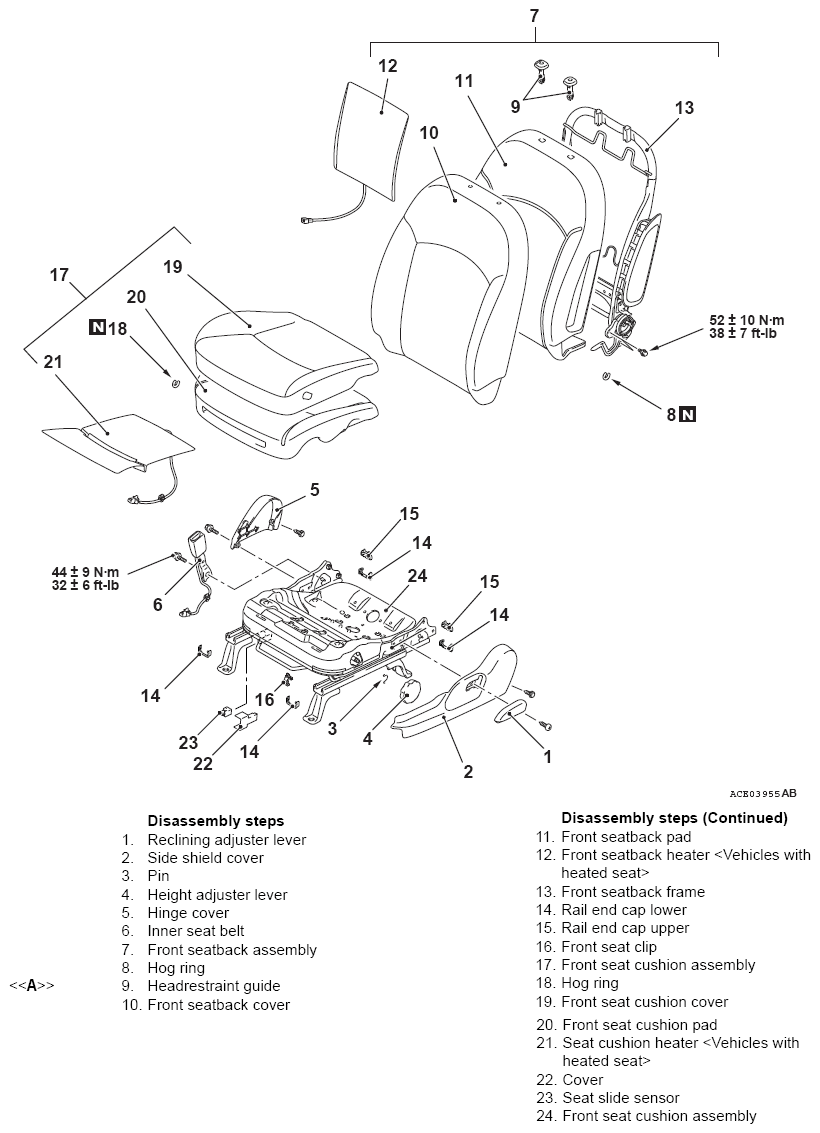

Fig 1: Seat Components With Torque Specifications

G11280587

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
