Home >> Mitsubishi >> 2015 >> Lancer Evolution Final Edition >> Repair and Diagnosis >> Electrical >> Body Electrical >> Splice Locations - Lancer Evolution >> Engine Compartment

Engine Compartment

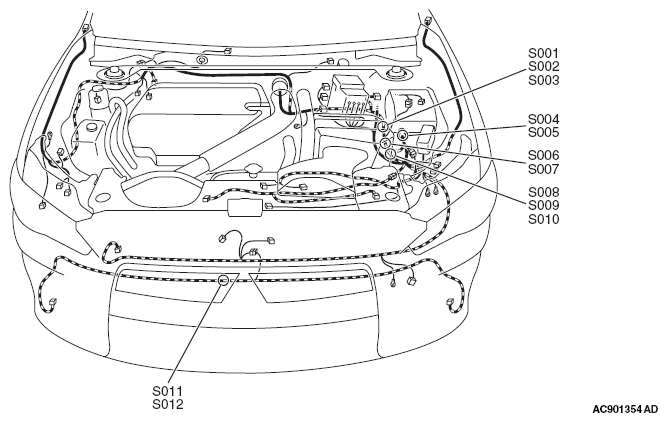

Fig 1: Engine Compartment Splice Locations

G09620649

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
