Body Panel Replacement - Evolution: Roof: Notes

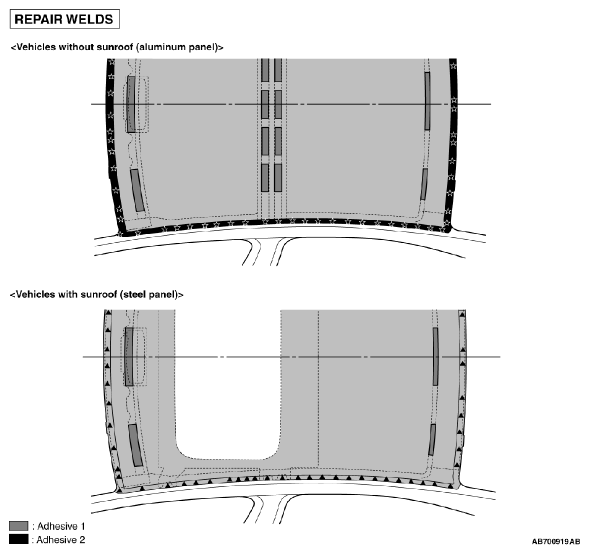

Fig 1: Roof Panel Component Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SYMBOL DESCRIPTION

Symbol	Operation description
	Spot welding
	MIG plug welding (■ : indicates two panels to be welded : indicates three panels to be welded)
	MIG spot welding
	MIG arc welding (continuous)
	Braze welding
	Anti-corrosion agent application locations (Use access holes to apply liberally to butt-welded joints.)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• Adhesive 1: Urethane body sealer Brand: 3M™ AAD Part No. 08360 or equivalent
• Adhesive 2: Epoxy resin adhesive Brand: 3M™ AAD Part No. 8115 or equivalent
