Quarter Outer: Notes

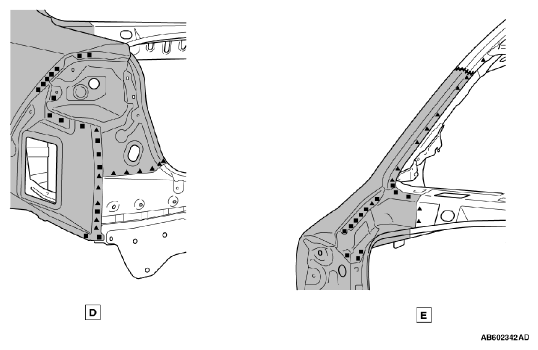

Fig 1: Quarter Outer Panel Component Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SYMBOL DESCRIPTION

Symbol	Operation description
	Spot welding
	MIG plug welding (■ : indicates two panels to be welded : indicates three panels to be welded)
	MIG spot welding
	MIG arc welding (continuous)
	Braze welding
	Anti-corrosion agent application locations (Use access holes to apply liberally to butt-welded joints.)

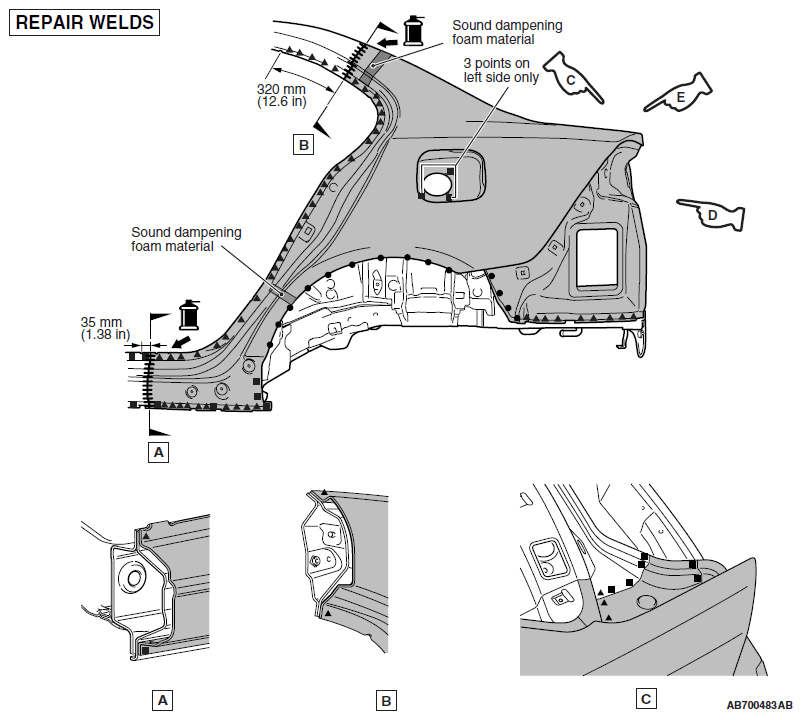

Fig 2: Quarter Outer Panel Cut Lines, Measurements And Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: When repairing the area using sound dampening foam material do not use firing tools since the sound dampening foam material may burn.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
