Note On Repair Work: Installation

For the new quarter panel inner parts, cut the wheel arch end are so that it overlaps with the flange on the body-side.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

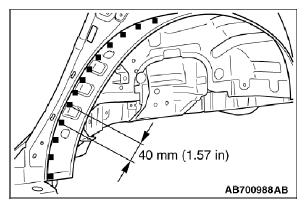

Overlap, assemble and weld the quarter panel inner with the body-side flange. Weld at a pitch of 40 mm (1.57 inches).

Fig 1: Quarter Inner Panel Installation Welding Specifications And Locations (Partial Replacement)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

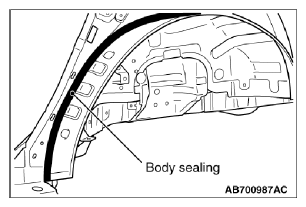

Weld the quarter panel inner then apply a body sealing in the area shown in the figure of the instructions.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
