Note On Repair Work: Removal

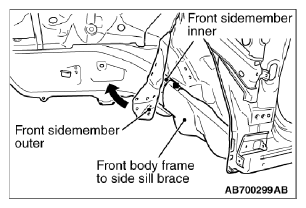

Turn up the front sidemember outer as shown to cut off the welded point between the front sidemember inner and the front body frame to side sill brace.

G11486675Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
