Mitsubishi
>>
2012
>>
i-MiEV ES
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Transaxle On-Vehicle Service
>>
Transaxle Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

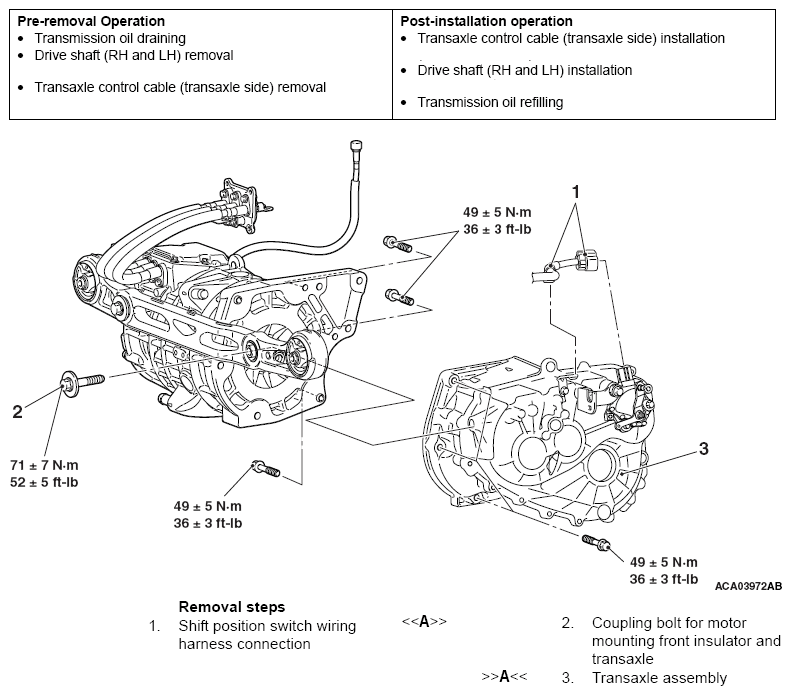

Fig 1: Transaxle Assembly Replacement Components Removing Order With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
