Disassembly And Assembly

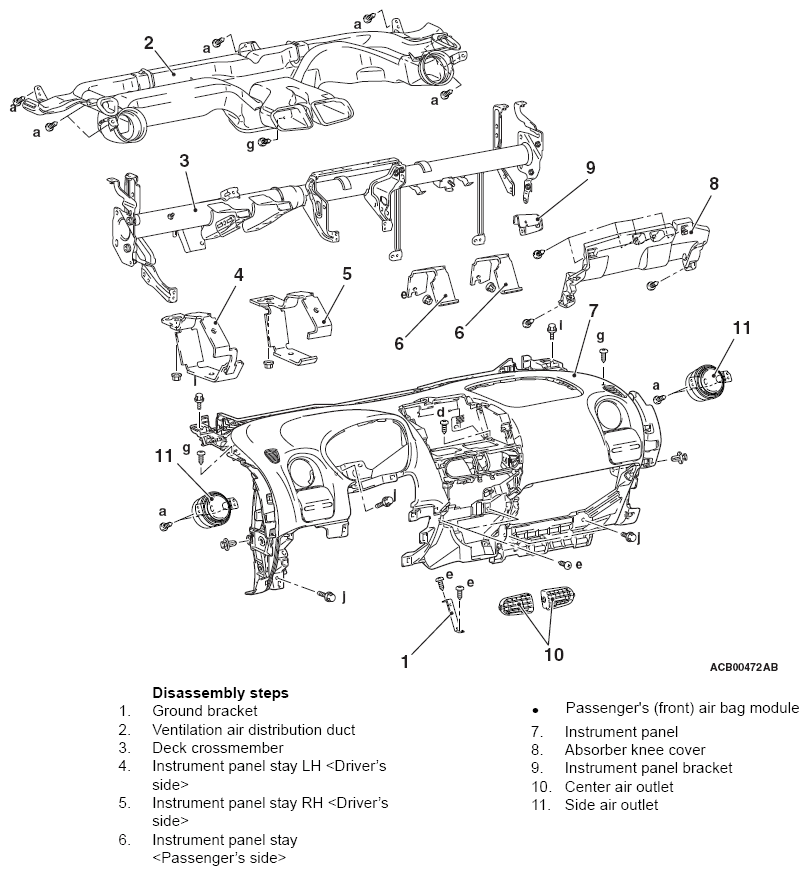

Fig 1: Disassembling Order Of Instrument Panel Assembly

G08303431

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
