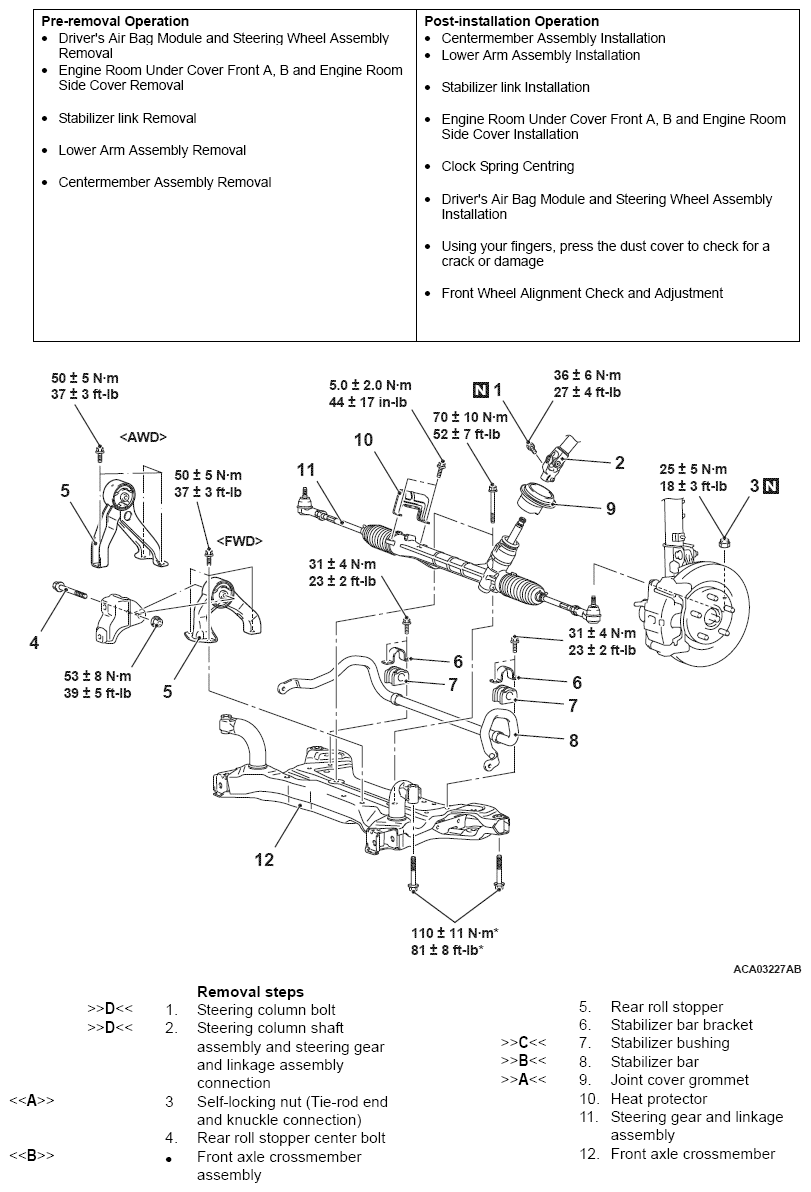

Removal And Installation: Notes
CAUTION:
- Before removing the driver's air bag module and steering wheel assembly, refer to SERVICE PRECAUTIONS and DRIVER'S AIR BAG MODULE AND CLOCK SPRING . Position the steering wheel in the straight-ahead position. If you fail to do this, clock spring for SRS may get damage not to operate the SRS (air bag), and it may cause the serious injury of the driver.
- The parts indicated by * are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
- After the installation, perform a calibration for the ASC-ECU to learn the steering wheel sensor neutral point. (Refer to STEERING WHEEL SENSOR CALIBRATION ).
Required Special Tool:
- MB991897 or MB992011: Ball Joint Remover
