Home >> Mitsubishi >> 2012 >> Lancer Evolution MR >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine Overhaul - Lancer Evolution >> Intake Manifold And Fuel System >> Removal And Installation >> Notes

Removal And Installation: Notes

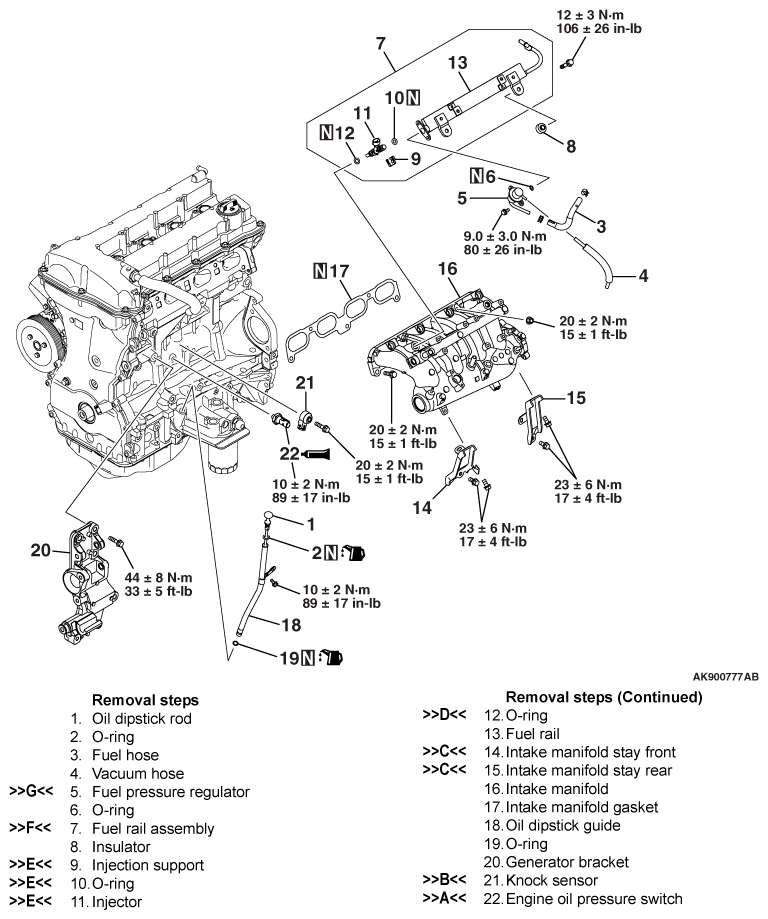

Fig 1: Removal/Installation Of Intake Manifold & Fuel System With Torque Specifications
G06674123Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
