Data List Reference Table

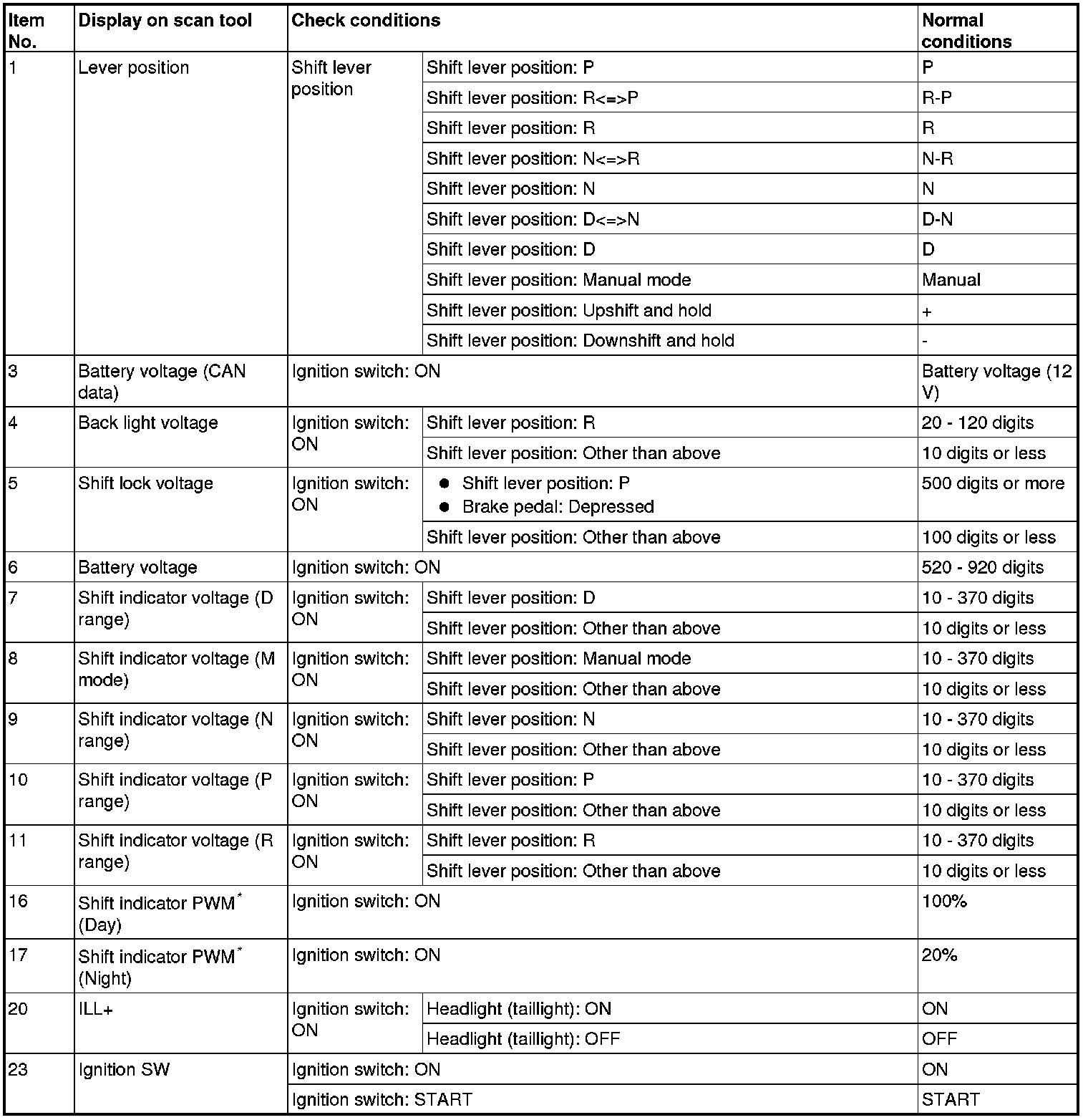

DATA LIST REFERENCE TABLE









NOTE:
*: PWM indicates the duty value (ratio).
