Data List Reference Table

DATA LIST REFERENCE TABLE

DATA LIST OUTPUT

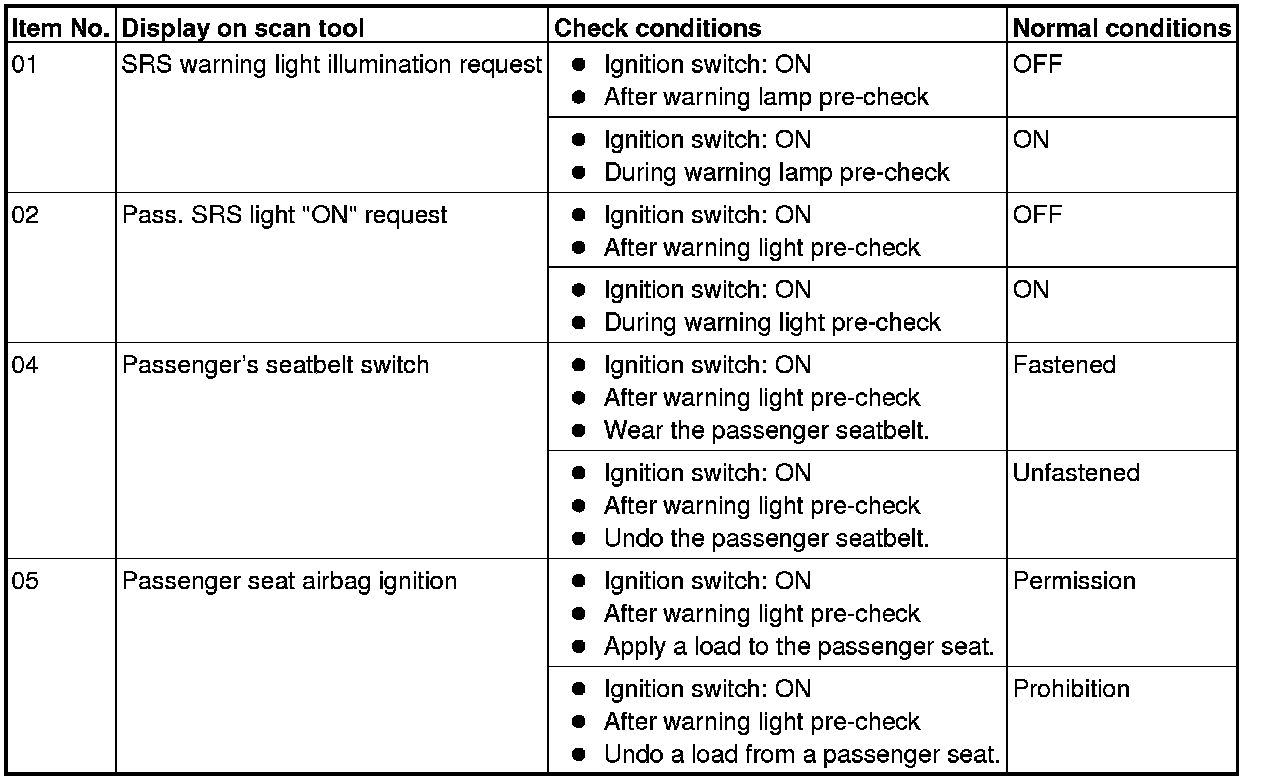

The following items can be read by the scan tool from the SRS-ECU input data.

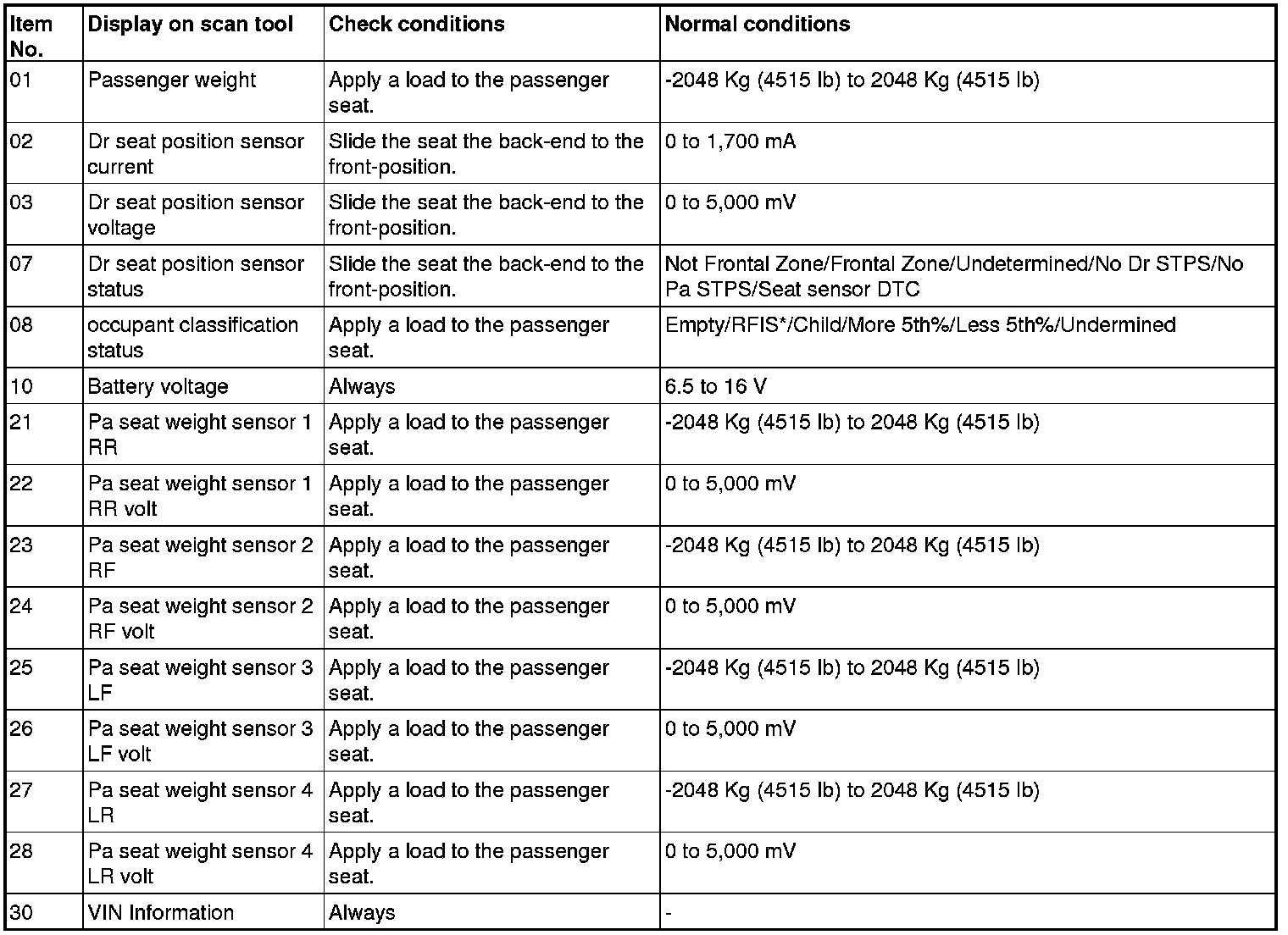

The following items can be read by the scan tool from the occupant classification-ECU input data.






NOTE:
*: Radio Frequency Integrated Circuit
