Flywheel

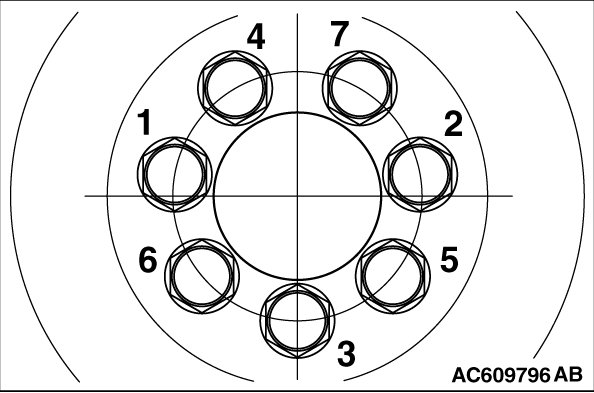

CVT Drive Plate or M/T Flywheel Bolts





First step 40 Nm (30 ft-lb)
Second step 130 Nm (96 ft-lb)
