LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mitsubishi
>>
2012
>>
Eclipse L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Junction Block
Junction Block

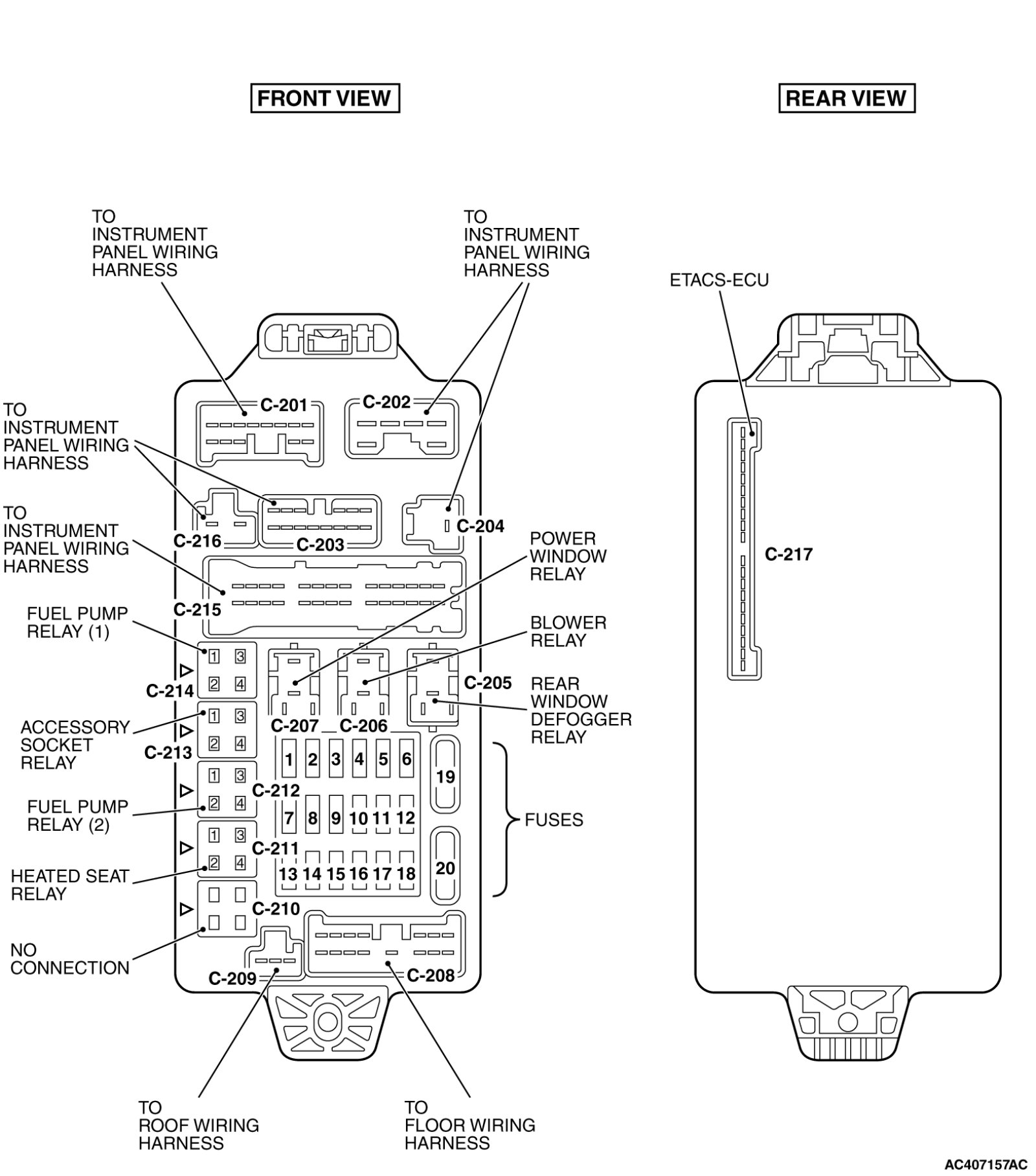

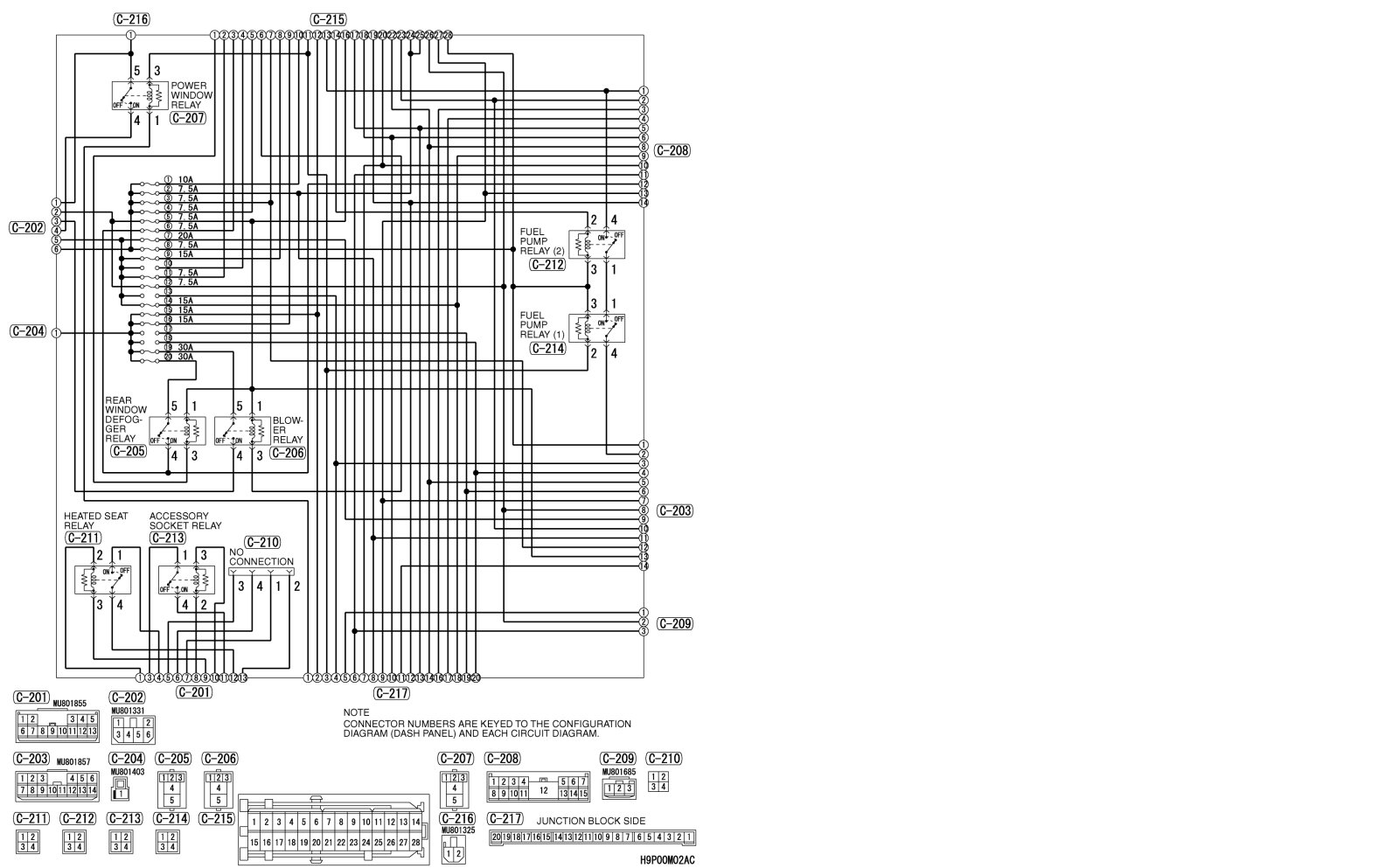

JUNCTION BLOCK
