Front Door

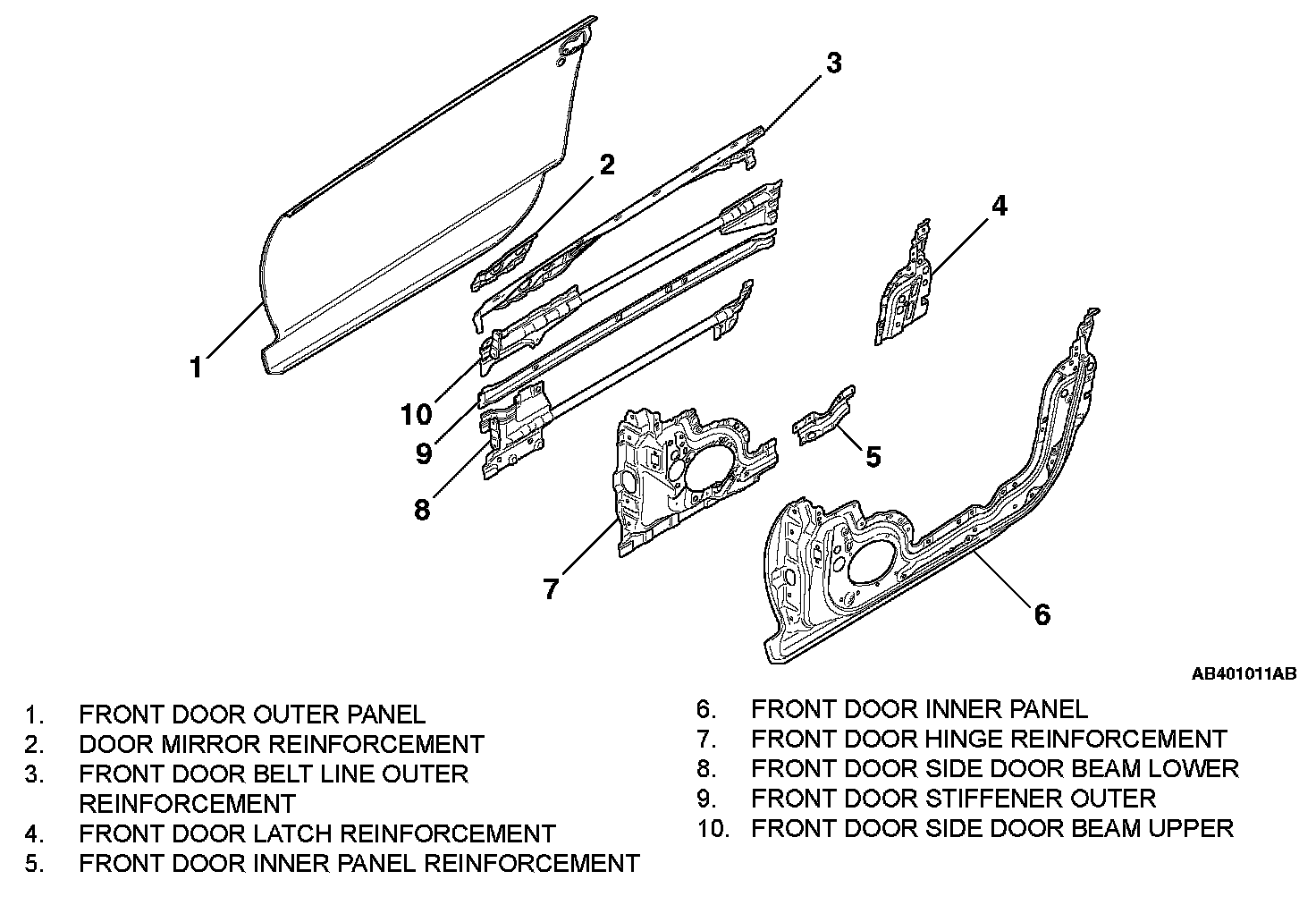

DOOR (ECLIPSE)






- Two side door beams have been installed to improve the safety upon side impact.
- A large front door hinge reinforcement and a large front door latch reinforcement have been adopted to improve the mounting surface rigidity of the area connecting with the door window regulator assembly.
