Fastener Tightening Specifications




TORQUE SPECIFICATIONS

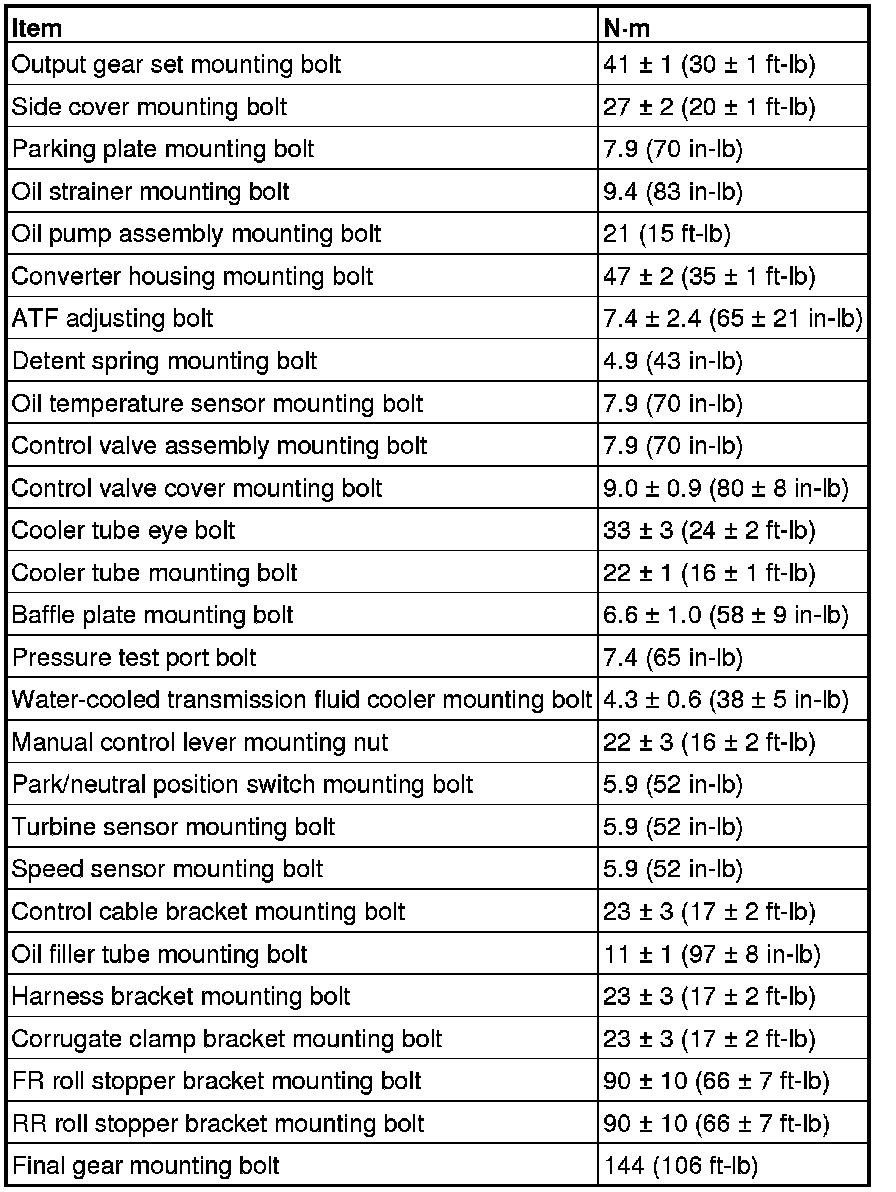

Transaxle

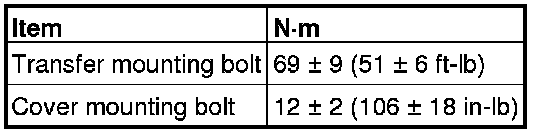

Transfer

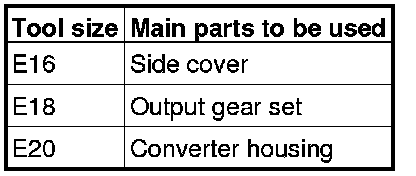

Size of torque wrench used
