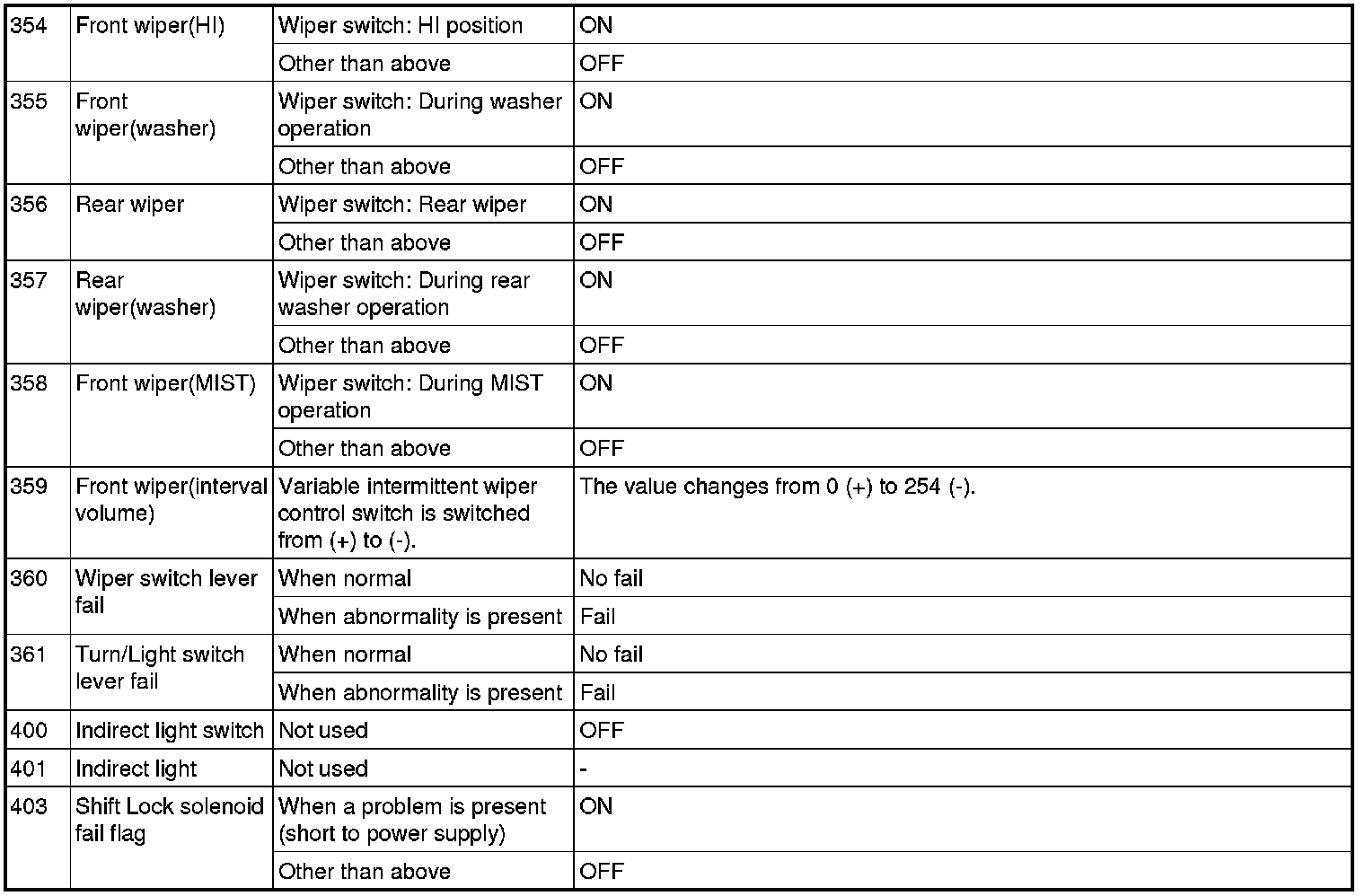

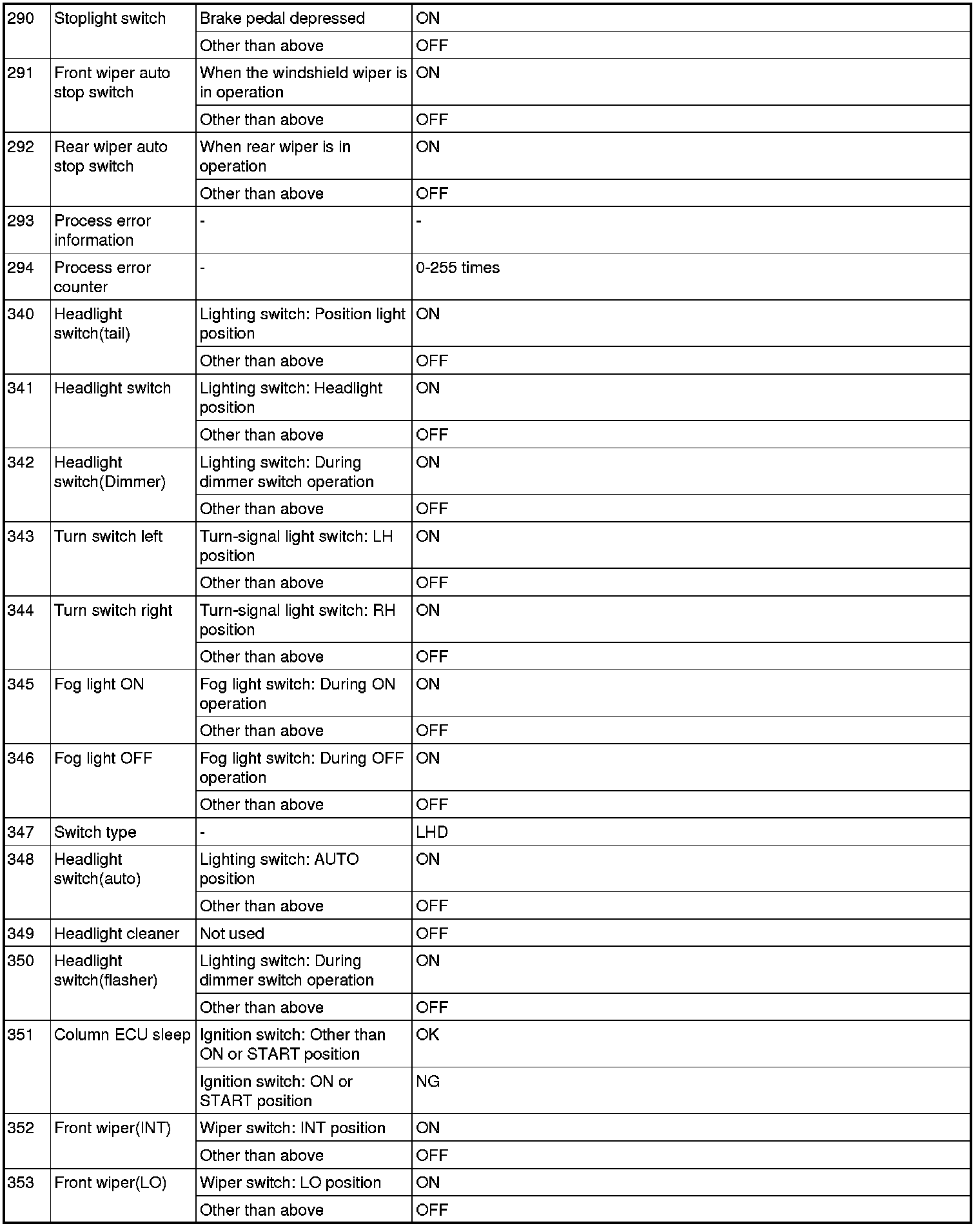

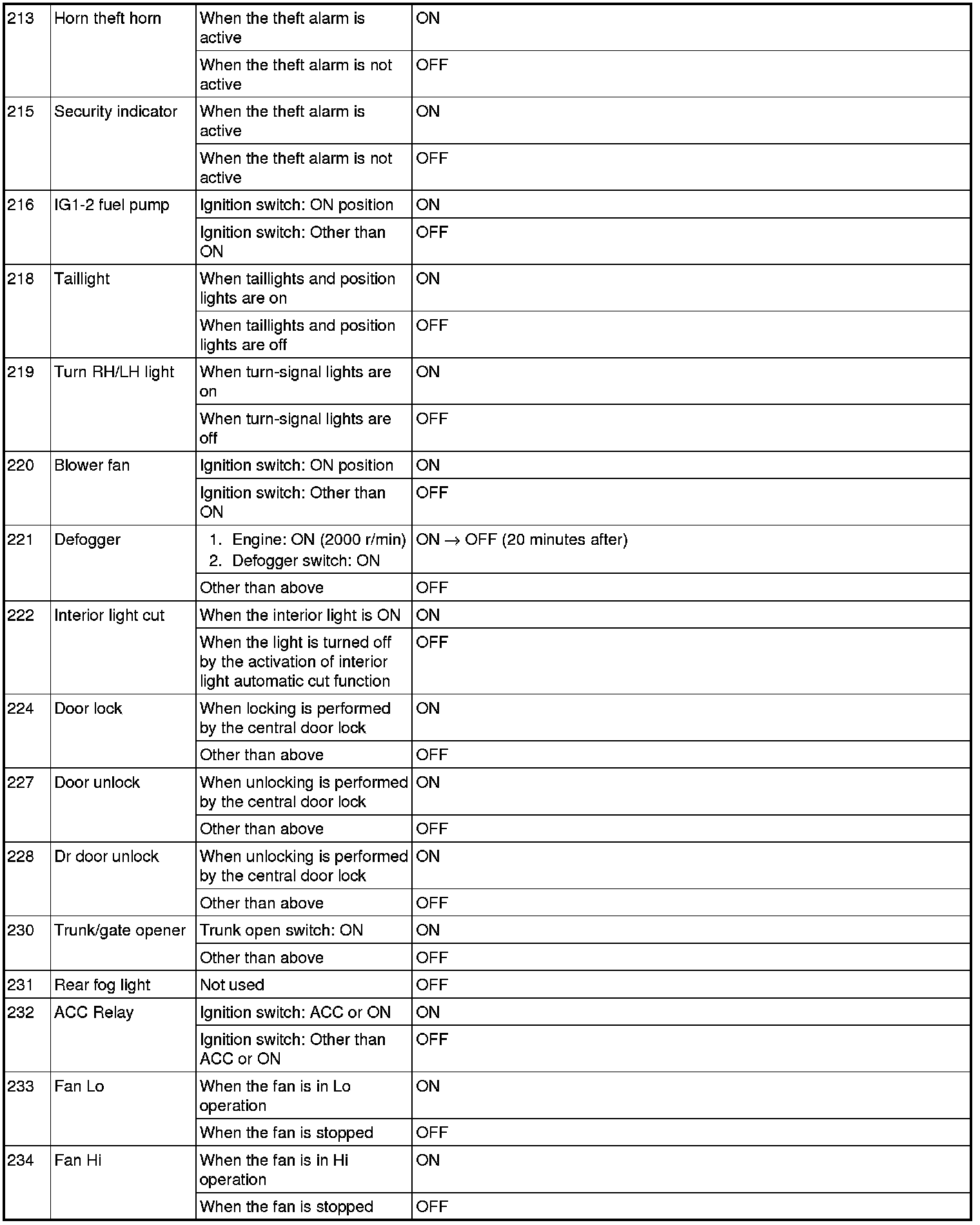

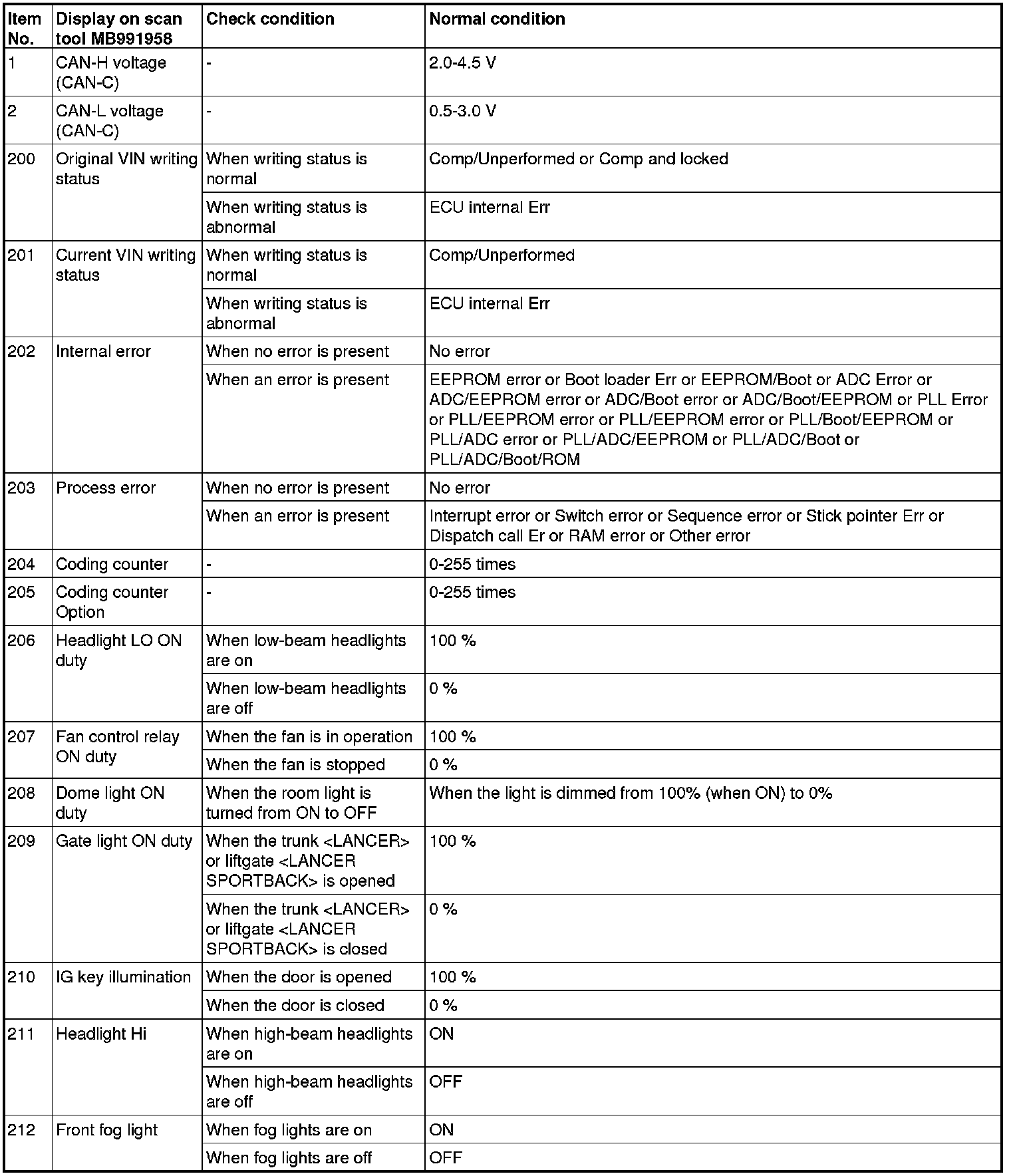

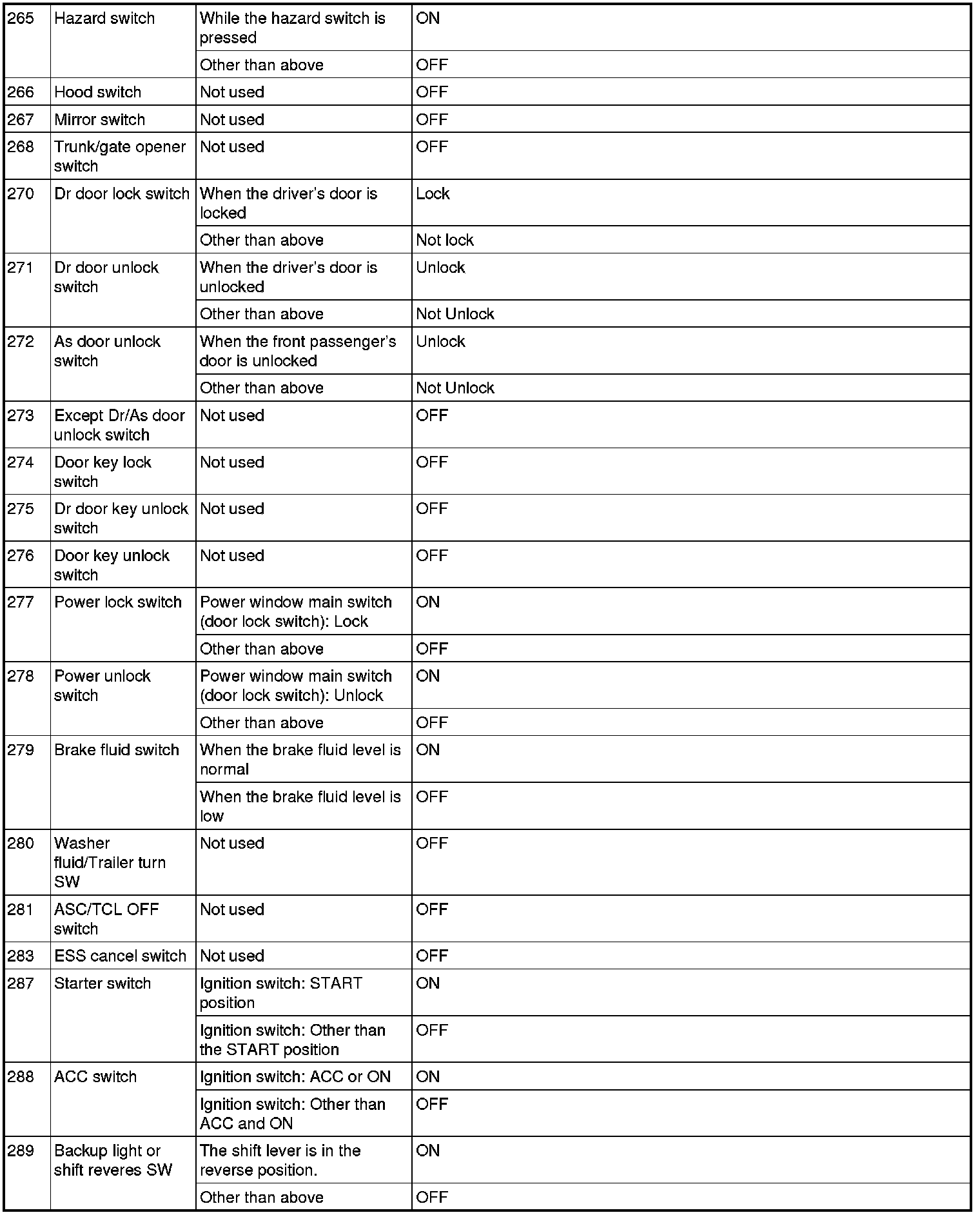

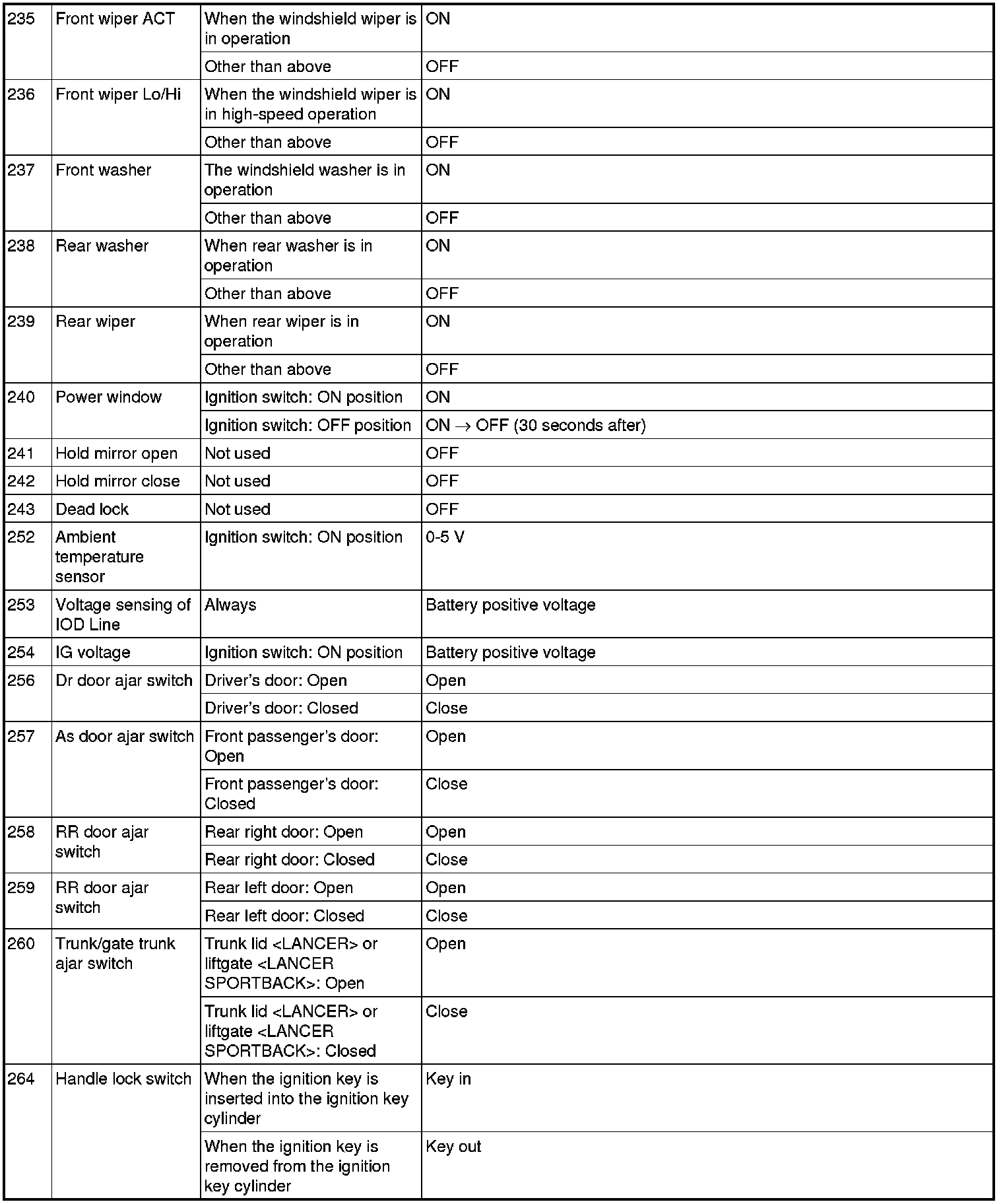

Data List Reference Table




DATA LIST REFERENCE TABLE

NOTE:
Some items are not displayed on scan tool MB991958 according to the information in the ECU.
